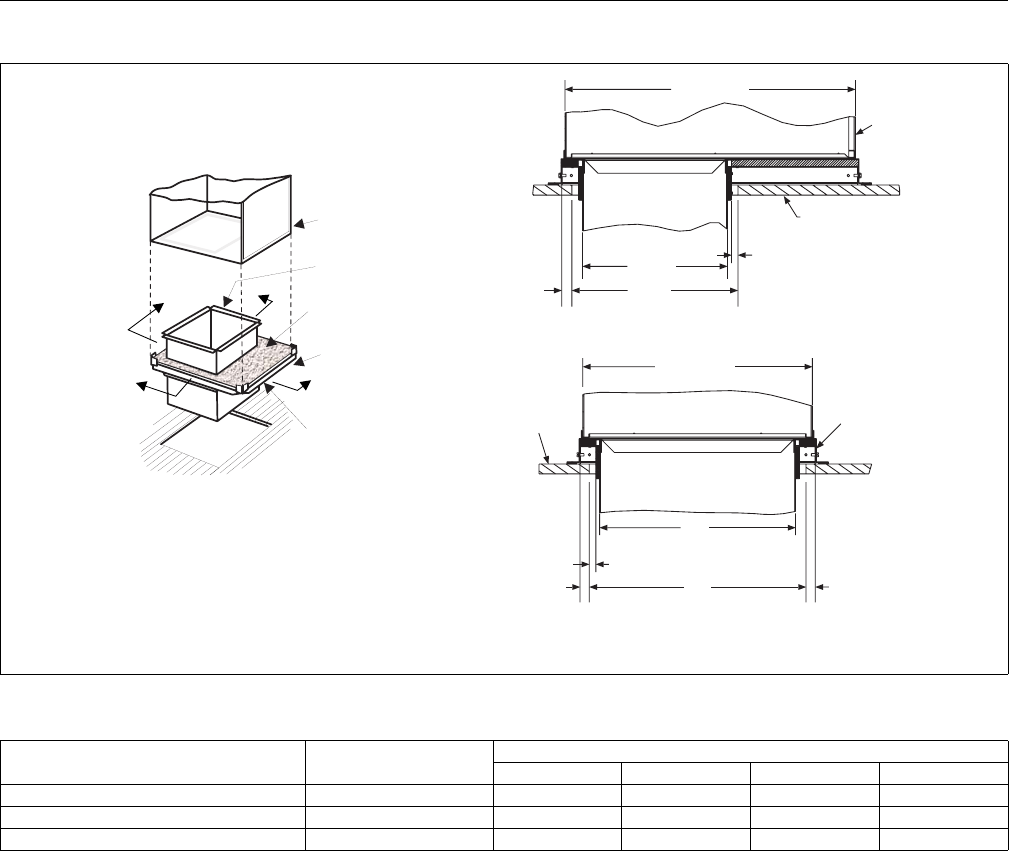

COMBUSTIBLE FLOOR BASE ACCESSORY
DOWNFLOW
AIR HANDLER
WARMAIR PLENUM
WITH 1” FLANGES
FIBERGLASS
INSULATION
FIBERGLASS TAPE
UNDER FLANGE
COMBUSTIBLE FLOOR
BASEACCESSORY
A
B
B
A
AIR HANDLER
DEPTH
FRONT
FLOOR
1
10-47/64
PLENUM
12-1/2
FLOOR OPENING
APPROX. 1/2”
CLEARANCE
ALLAROUND
FLOOR
A
AIR HANDLER
WIDTH
COMBUSTIBLE
FLOOR BASE
11
APPROX. 1/2”
CLEARANCE
ALLAROUND
C
FLOOR OPENING
B
PLENUM
All dimensions are in inches. They are subject to change without notice. Certified dimensions will be provided upon request.
Floor Base Model Used with
Dimensions
ABCD
1FB1817 MV12B 19.9 18.0 14.9 16.9
1FB1821 MV16C 23.4 21.5 18.4 20.4
1FB1824 MV12D, MV20D 26.9 25.0 21.9 23.9
