331471-YTG-A-0507
Unitary Products Group 15

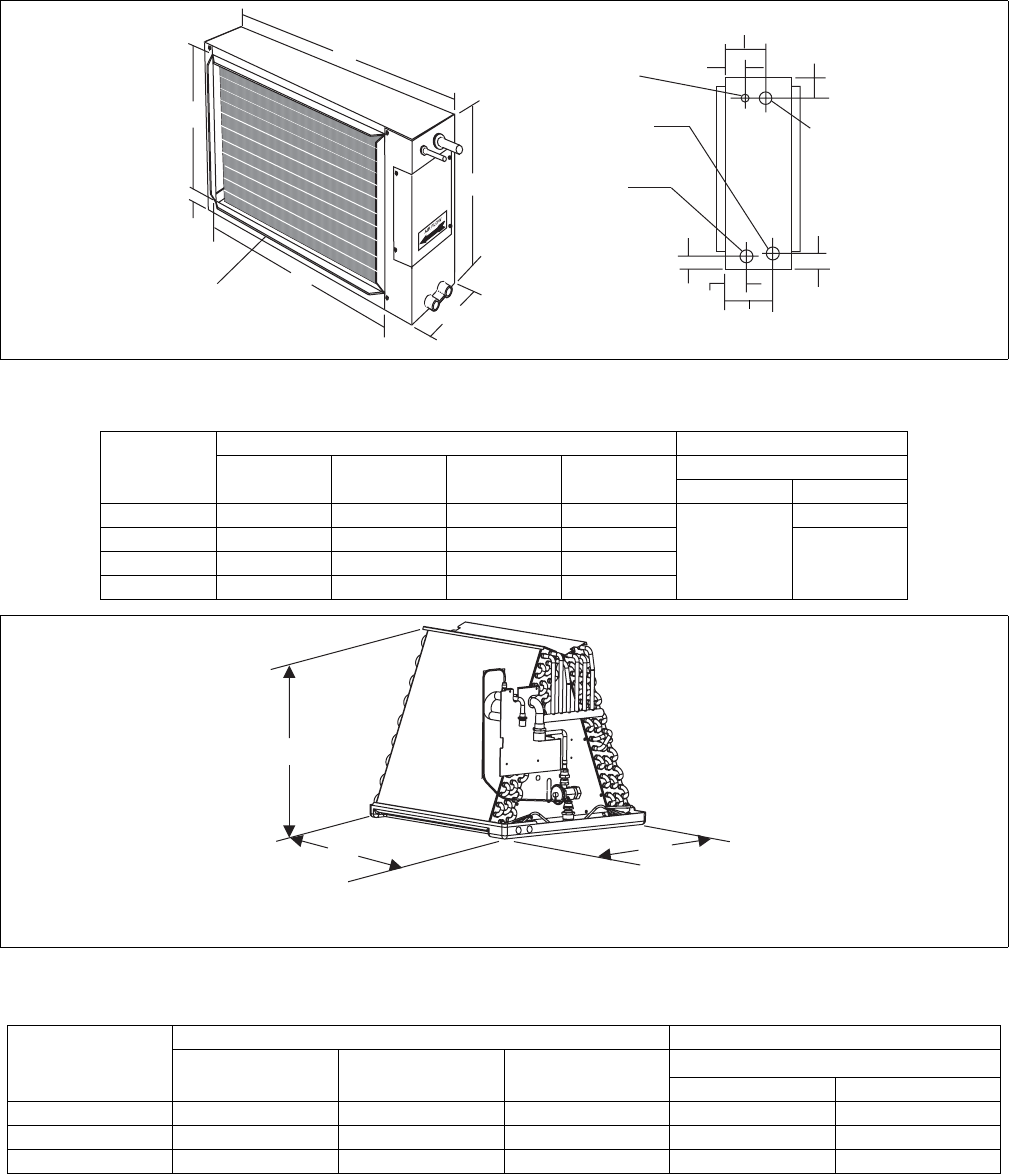

COIL - HD
1-3/4
C
5-5/8
B
A
D
3-3/4
2-5/8
1-3/8
VAPOR
CONN.
LIQUID
CONN.
3/4 MPT
SECONDARY
DRAIN CONN.
3/4 MPT
PRIMARY
DRAIN CONN.
7/8
1-7/8
4-1/8
1-3/8
OUTLET SAME
SIZE AS INLET
(ALL FLANGES 3/4” THICK
DIMENSIONS - HD Coils
Model
Dimensions — Inches Refrigerant Connections
ABCD
Line Size
Liquid Vapor
HD24S**H1 28-3/4 24 23-3/4 21-5/8
3/8
3/4
HD36S**H1 28-3/4 28 23-3/4 25-5/8
7/8HD48S**H1 34-3/4 28 29-3/4 25-5/8
HD60S**H1 34-3/4 30 29-3/4 27-5/8
COIL - MH
B
COIL SHOWNAS QUICK CONNECT
REFER TO FIGURE #2 FOR ILLUSTRATION OF SWEAT FIT MODEL
A
C
DIMENSIONS - MH Coils
Model
Dimensions — Inches Refrigerant Connections
ABC
Line Size
*
Liquid Vapor
MH30S 18 3/8” 18 1/8” 20” 3/8 3/4
MH36S 18 3/8” 18 1/8” 20” 3/8 7/8
MH42S 18 3/8” 18 1/8” 20” 3/8 7/8
* Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
