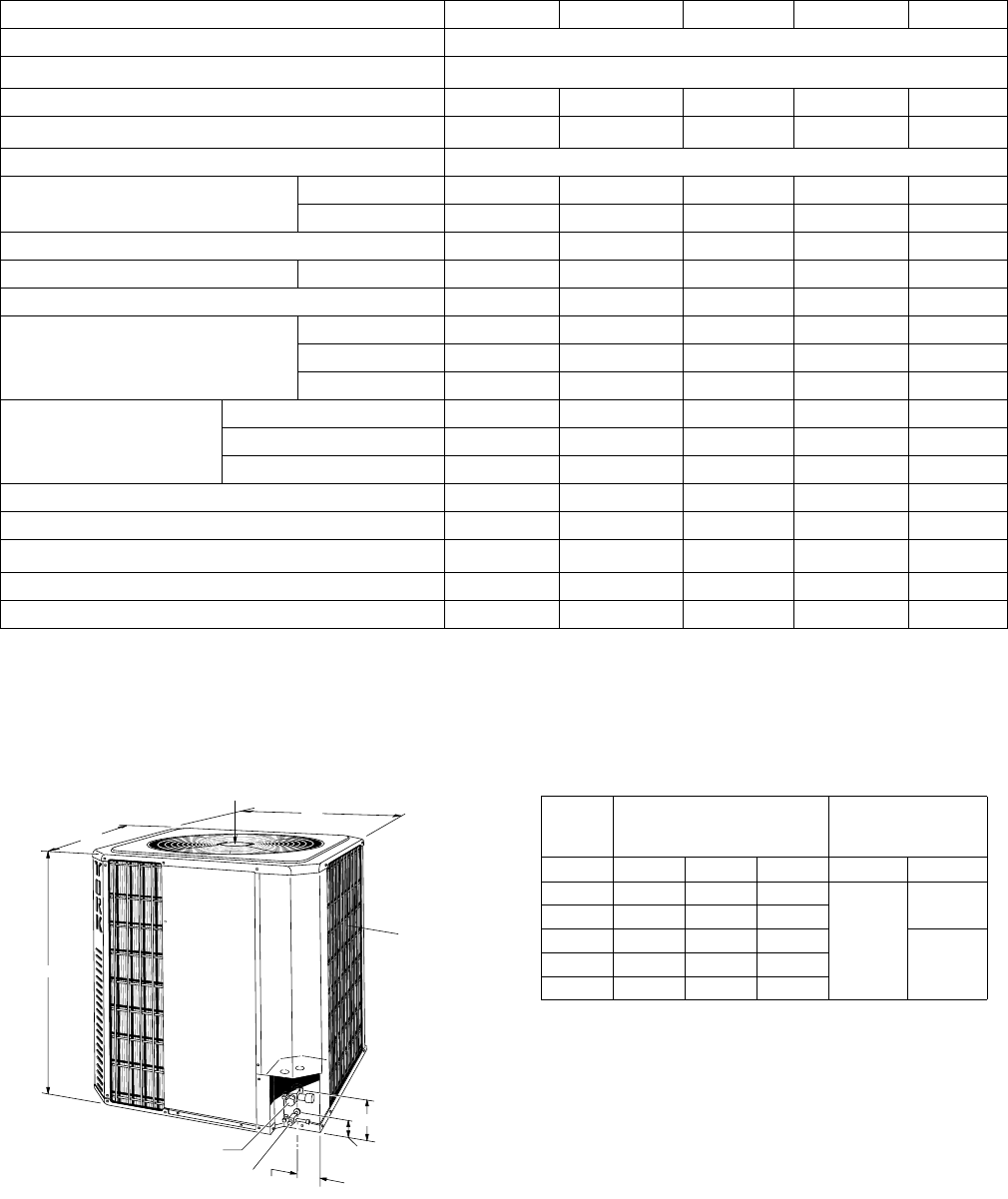

PHYSICAL AND ELECTRICAL DATA
MODEL
H4TS024 H4TS030 H4TS036 H4TS048 H4TS060
UNIT SUPPLY VOLTAGE
208/230-1-60
NORMAL VOLTAGE RANGE
1
187 to 252
MIN. CIRCUIT AMPACITY
13.4 15.3 18.6 32.8 35.3
MAX. OVERCURRENT DEVICE AMPS
2
20 25 30 50 60
COMPRESSOR TYPE
BRISTOL TS
COMPRESSOR AMPS
RATED LOAD
10.3 11.7 13.5 25.7 27.0
LOCKED ROTOR
64 65 84 135 147
CRANKCASE HEATER
YES YES YES YES YES
FAN MOTOR AMPS RATED LOAD
.5 .5 .7 .7 1.5
FAN DIAMETER INCHES
18 18 24 24 24
FAN MOTOR
RATED HP
1/12 1/12 1/10 1/10 1/4
NOMINAL RPM
1100 1100 825 825 850
NOMINAL CFM
1850 1850 2800 2800 3200
COIL
FACE AREA SQ. FT
14.2 14.2 20.0 24.0 24.0
COIL ROWS DEEP
11111
FIN / INCH
20 20 20 20 20
LIQUID LINE OD
3/8 3/8 3/8 3/8 3/8
VAPOR LINE OD
3/4 3/4 7/8 7/8 7/8
UNIT CHARGE, (LBS - OZ)
3
6 - 0 6 - 4 7 - 0 9 - 12 9 - 2
CHARGE PER FOOT, OZ
.68 .68 .70 .70 .70
OPERATING WEIGHT LBS.
145 145 200 250 252
1 Rated in accordance with ARI Standard 110, utilizaton range “A”.
2 Dual element fuses or HACR circuit breaker.
3 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or sub-
tract the amount of refrigerant calculated, using the difference in length multiplied by the per foot value.
48" OVERHEAD
CLEARANCE
C
B
A
5-1/2
2-3/8
3-1/8
VAPOR
CONNECTION
LIQUID CONNECTION
AIR IN
4 SIDES
DIMENSIONS
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A
1
B C Liquid Vapor
024
30-1/8 24 24
3/8
3/4
030
30-1/8 24 24
036
31-7/8 35 35
7/8
048
37-7/8 35 35
060
37-7/8 35 35
