036-21145-003 Rev. A (0403)
Unitary Products Group 11
NOTE:
G2FD coils available with a factory installed horizontal drain pan option (H).
G2FD061H24 is only available with a factory mounted horizontal pan
(T) indicates models with factory installed thermal expansion valve. Only available on coils with factory installed horizontal drain pan (H)

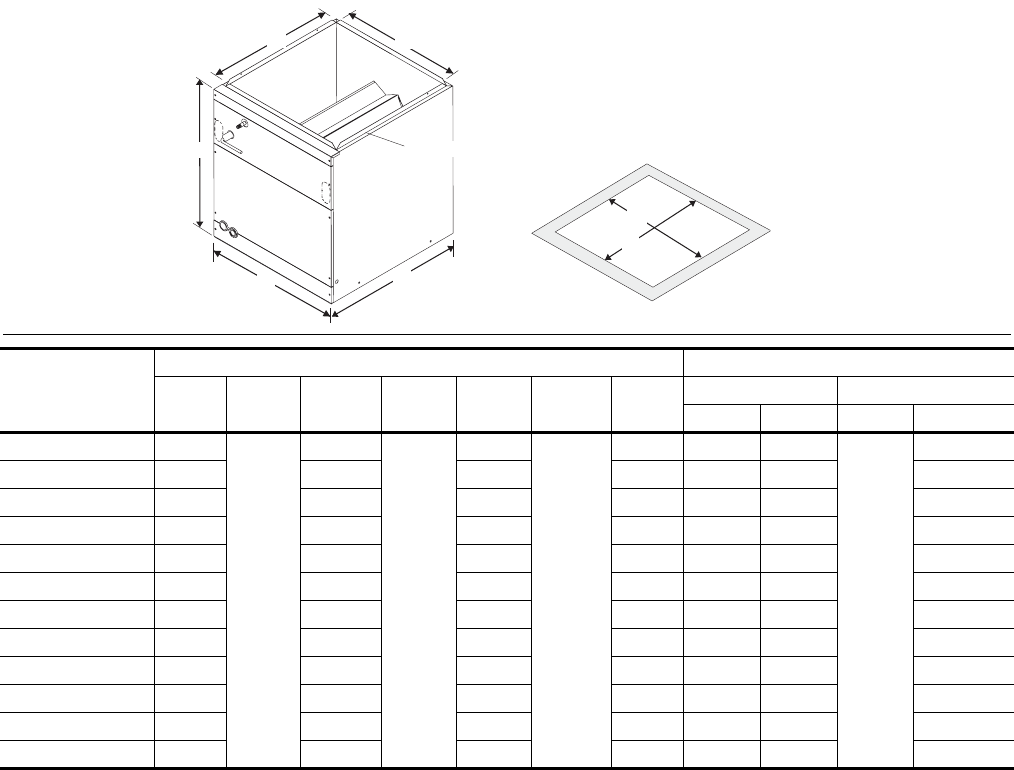

G2FD MULTI-POSITION “A” COIL
A
B
C
D
E
F
G
(Available with or without a factory
installed horizontal drain pan).
BOTTOM OPENING
3/4” FLANGE
MODELS
DIMENSIONS — INCHES REFRIGERANT CONNECTIONS
ABCDEFG
QUICK-CONNECT LINE SIZE
LIQUID VAPOR LIQUID VAPOR
G2FD024(S,H)14(T) 14-1/2
22
23
19-7/8
13-3/8
20-3/16
13-1/2 — —
3/8
5/8
G2FD024(S,H)17(T) 17-1/2 23 16-3/8 16-1/2 — — 5/8
G2FD035(S,H)14(T) 14-1/2 23 13-3/8 13-1/2 — — 5/8
G2FD030(S,H)17(T) 17-1/2 23 16-3/8 16-1/2 — — 5/8
G2FD036(S,H)17(T) 17-1/2 28 16-3/8 16-1/2 — — 3/4
G2FD036(S,H)21(T) 21 23 19-7/8 20 — — 3/4
G2FD046(S,H)17(T) 17-1/2 28 16-3/8 16-1/2 — — 7/8
G2FD042(S,H)21(T) 21 23 19-7/8 20 — — 7/8
G2FD048(S,H)21(T) 21 28 19-7/8- 20 — — 7/8
G2FD048(S,H)24(T) 24-1/2 28 23-3/8 23-1/2 — — 7/8
G2FD060(S,H)24(T) 24-1/2 28 23-3/8 23-1/2 — — 7/8
G2FD061H24 24-1/2 33 23-3/8 23-1/2 — — 7/8
