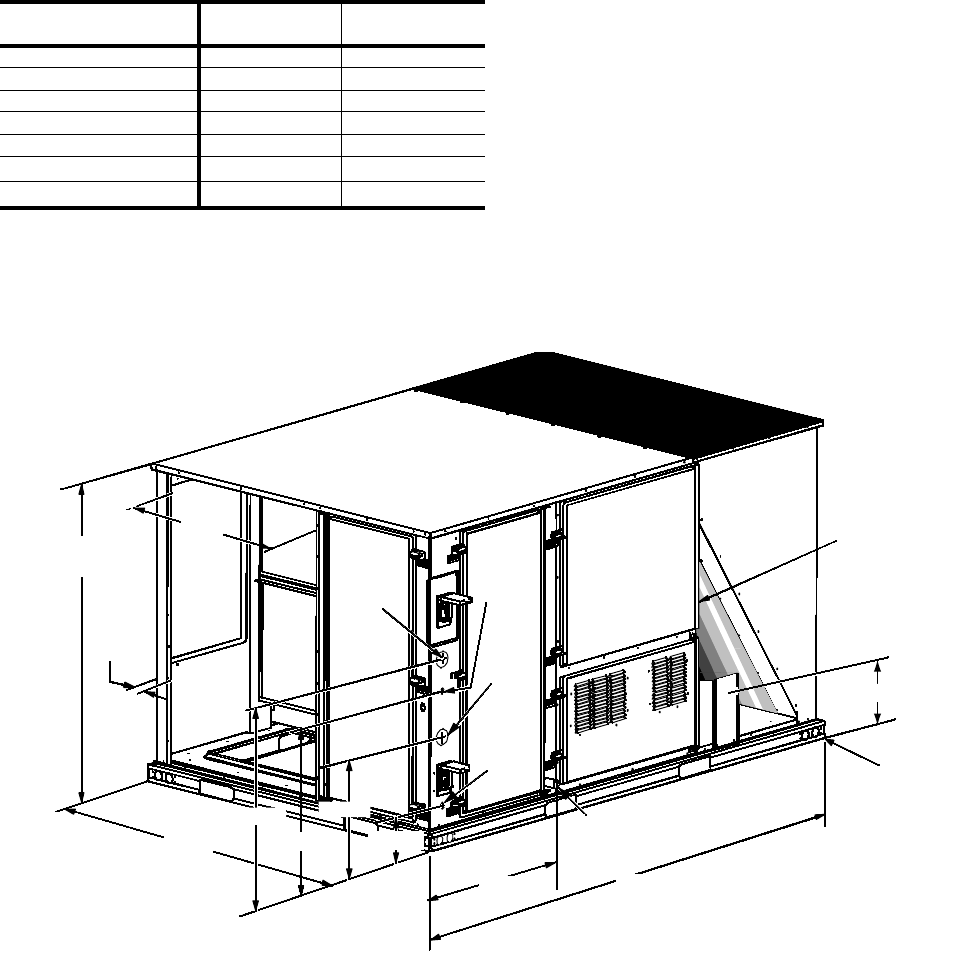

FIGURE 18 - DR090/120 UNIT DIMENSIONS
TABLE 36: UNIT WEIGHT
Model
Shipping
Weight (lbs.)
Operating
Weight (lbs.)
DR090 1163 1148
DR120 1277 1262
DR150 1560 1545
W/ECON. 85 84
W/PE 150 148
W/ELECT. HEAT
1
1.
54 KW Heater
49 49
W/GAS HEAT
2
2.
8 Tube Heat Exchanger
110 110
See Detail
A
For Baserail
Dimensions
See Detail B
89
27
59
50-3/4
4-1/4
6-3/16
17-3/16
24-3/16
30-3/16
Convenience
Power
Outlet
Entry
Ø 7/8
Power
Entry
Ø 2-1/2
30-11/32
Control
Entry
Ø 7/8
Power
Entry
Ø 2-1/2
LEFT
FRONT
For Drain
Dimensions
See Detail C
11-1/2
