Superior SSDVT-3530CNM Indoor Fireplace User Manual



9
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 8
MODEL SSDV-3530

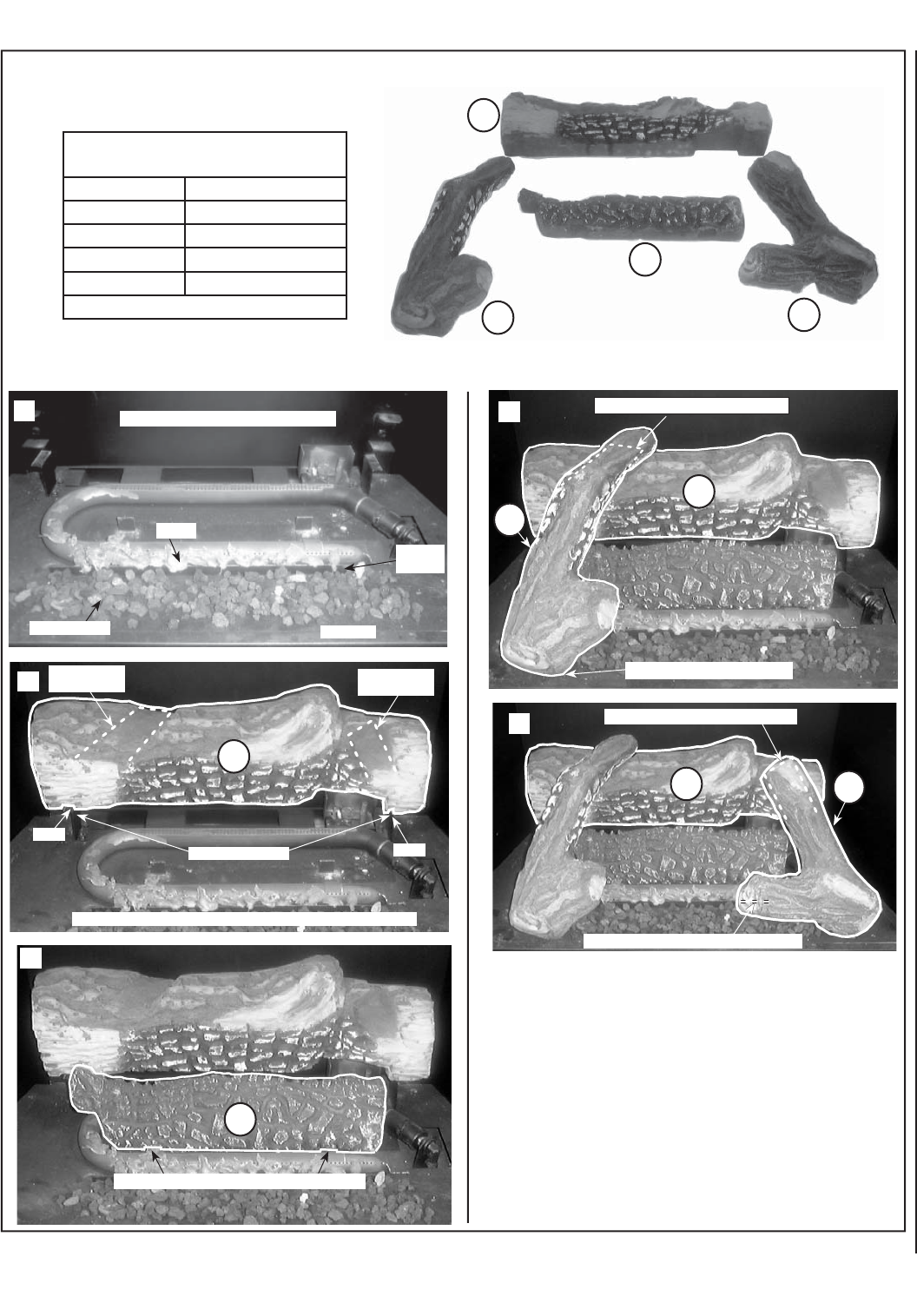

Log Placement Instructions
LOG SET
Catalog Number
H3367
* Item
Description
A
Log, Rear
B
Log, Top Left
C
Log, Center
D
Log, Top Right
* Item "letters" above correspond to photos
B
C
D
A
Install the Embers, Volcanic Stone and Logs in the order shown here
(1 through 5) and per the instructions on Page 8.
A
Notch
Notch
2
C
3
Notches on bottom of log (C) fi ts over 2 locating brackets
Top fork on log (B) fi ts into notch on log (A)
B
A
4
D
A
5
Top fork on log (D) fi ts into notch on log (A)
Place Embers & Volcanic Stone as Shown
1
Volcanic Stone
Embers
Locating Brackets
Notch for top
right log (D)
Notch for top
left log (B)
The 2 notches on the bottom of log (A) rest on the locating brackets
Sub-Floor
Sub-Floor
Flange
Bottom Fork of log (D) rests on Sub-Floor Flange
Bottom of log (B) rests on Sub-Floor
