Gas-Fired Boiler Parts/Technical Support
43

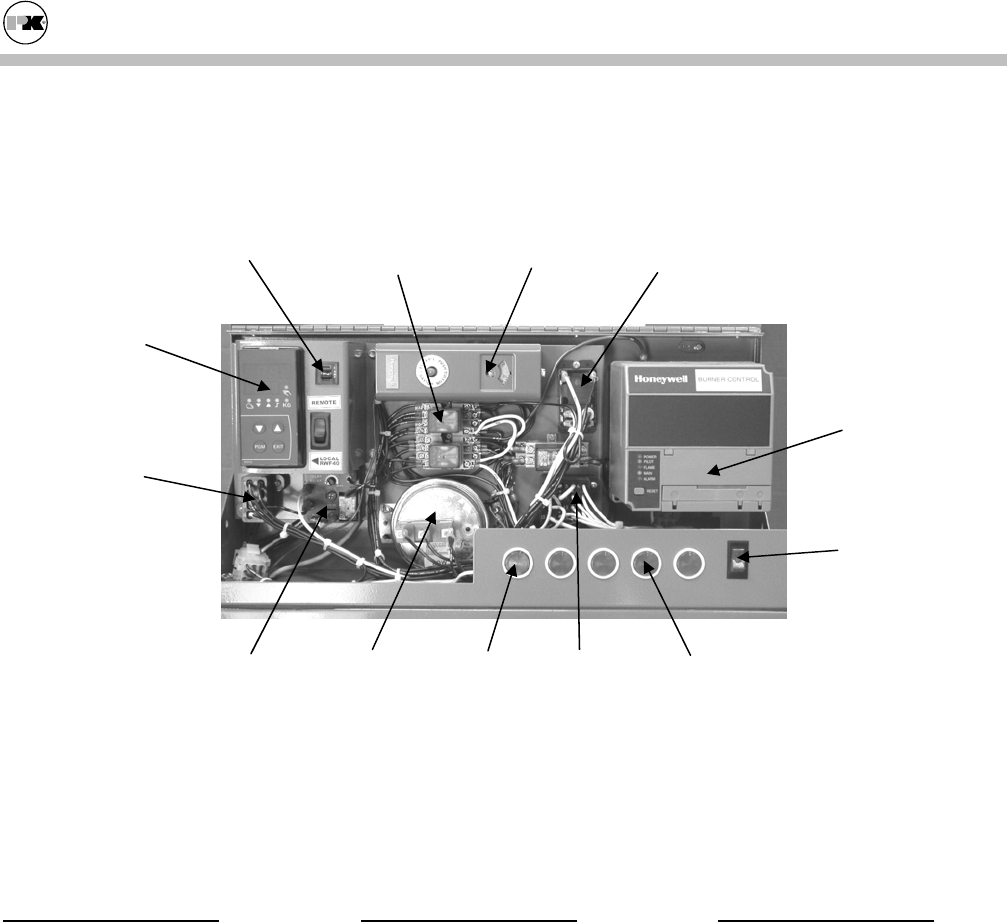

6.2.2 Control Panel
No. Part
1. Thermostat (Manual Re-
set)
2. Thermostat (Oper. Temp)
3. Air Flow Switch
4. Motor Start Relay
5. Terminal Block, Neutral
6. Terminal Block, Power
No. Part
7. Flame Safeguard Pro-
grammer
7a. Amplifier (UV Scanner)
7b. Timing Card, 30 sec.
8. Programmer, Sub-Base
9. Switch, On/Off, Lighted
10. Ignition Transformer (not
visible)
No. Part
10a. Ignition Cable (not visi-
ble)
11. Indicator Light, Red
12. Indicator Light, Green
2
6
Circuit Breaker
Relays and
Sockets
1 4
7, 7a, 7b, 8
9
11
3 12 5
Forced Recycle Time
Delay Relay
Local Control Panel
