Patterson-Kelley MOD-04 Boiler User Manual



Modu-Fire
®
Gas-Fired Boiler Parts/Technical Support
34
CUSTOMER
CONNECTIONS
# 2 START
INTERLOCK
FLAME SAFEY
ALARM
# 1 START
INTERLOCK
ANALOG
INPUT
-- +

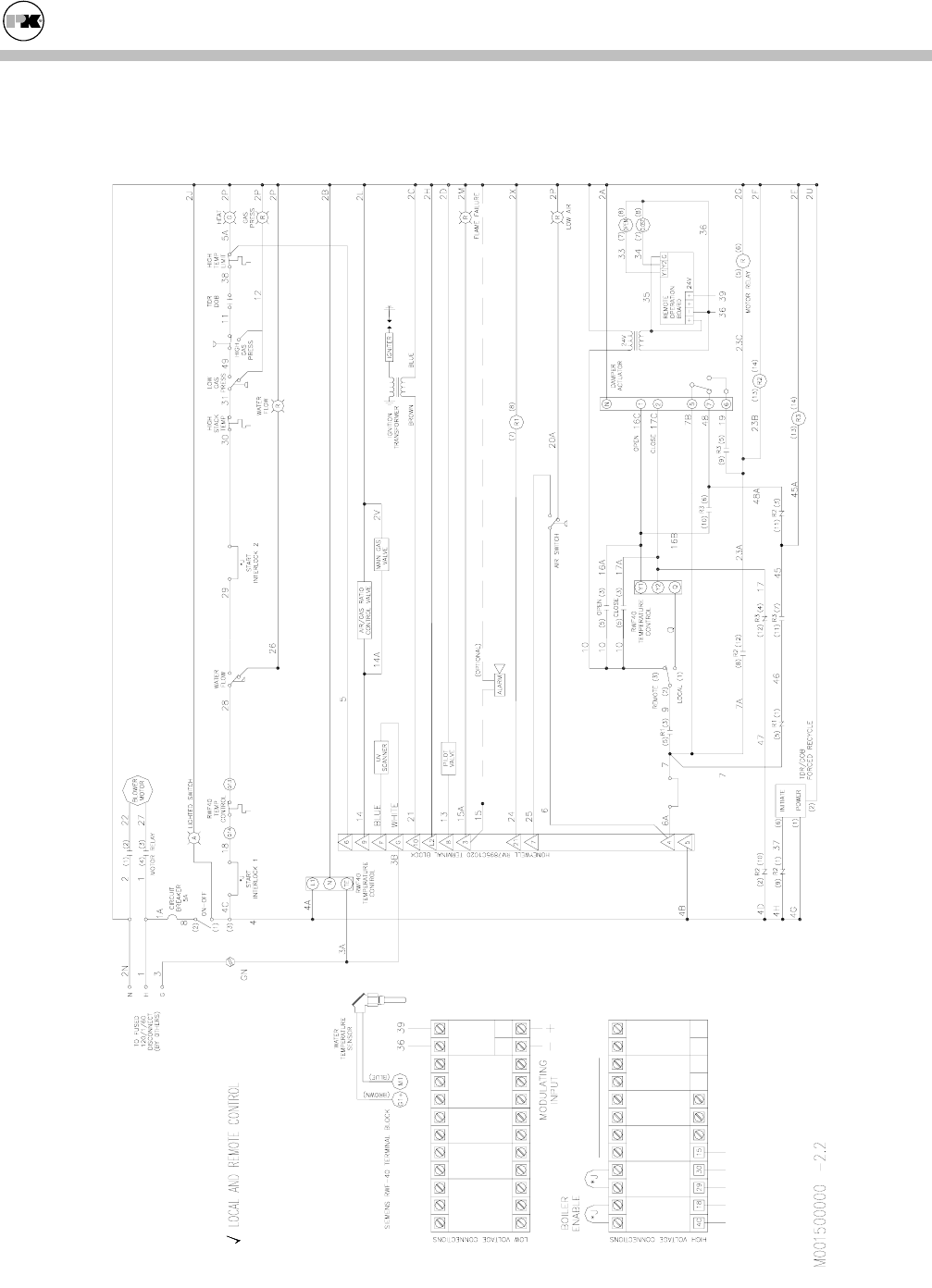

Standard Unit - Local & Remote Control - Logic Diagram
