7
J
K

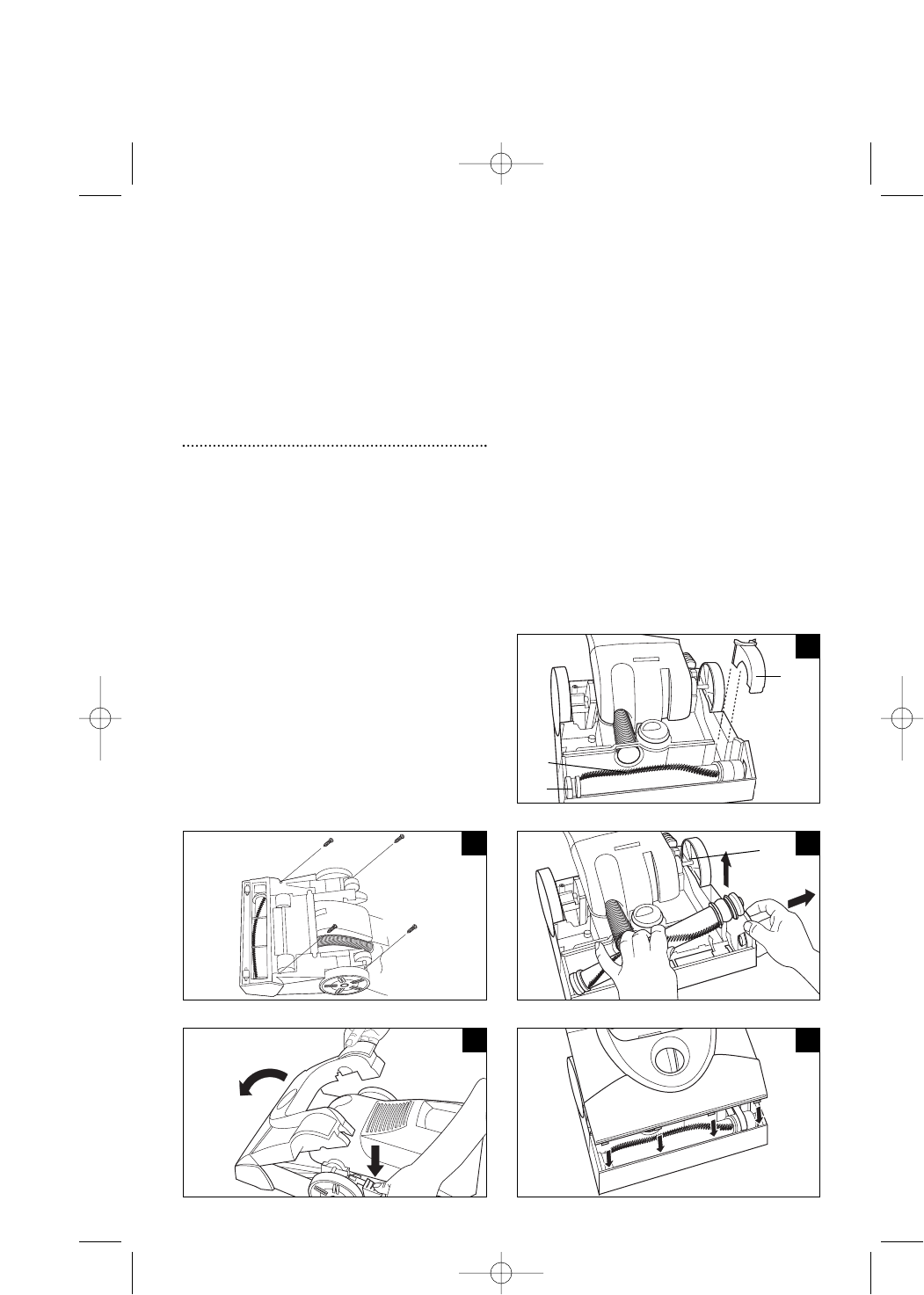

2 Press the handle release pedal and place
the cleaner face down, in the flat position
on a soft surface (eg carpet).
3 Use a cross-head screwdriver to remove
the four screws indicated J.
4 Turn the cleaner over.
5 While pressing the handle release
pedal lift the rear of the top cover,
unhook from the front then completely
remove the cover K.
Replacing the belt
LM
6 Lift off the belt cover Û.
7 Gently pull the right hand side (belt side)
of the floor nozzle outwards and at the
same time lift the brush bar out of its
location M.
8 If the belt has broken, ensure all pieces
are removed. Clean the motor shaft ı.
9 Check the brush bar end caps. ˆ
10 Fit the left hand end cap into the floor
nozzle.
11 Fit the right hand end cap onto the brush
bar.
12 Place one end of the new belt over the
motor shaft and the other around the
pulley end of the brush.
13 Locate the left hand side of the brush bar
first, then while pulling the right hand side
of the nozzle gently outwards and
stretching the belt, lower the right hand
side of the brush into its location.
14 Rotate the brush by hand to ensure it is
correctly and securely located.
15 IMPORTANT: Re-fit the belt cover.
16 Replace the top cover, hooking it in at the
front first and by pressing the handle
release pedal to allow the rear to
correctly locate N.
17 Turn the cleaner face down and re-fit and
tighten the four fixing screws, do not
overtighten.
18 Return the cleaner to its correct working
position before re-testing.
N
M
L
Û
Ù
ˆ
ı
