4-3. Connecting the M-NET transmission lines
(1) Supplying power to the M-NET transmission line from the BAC-HD150

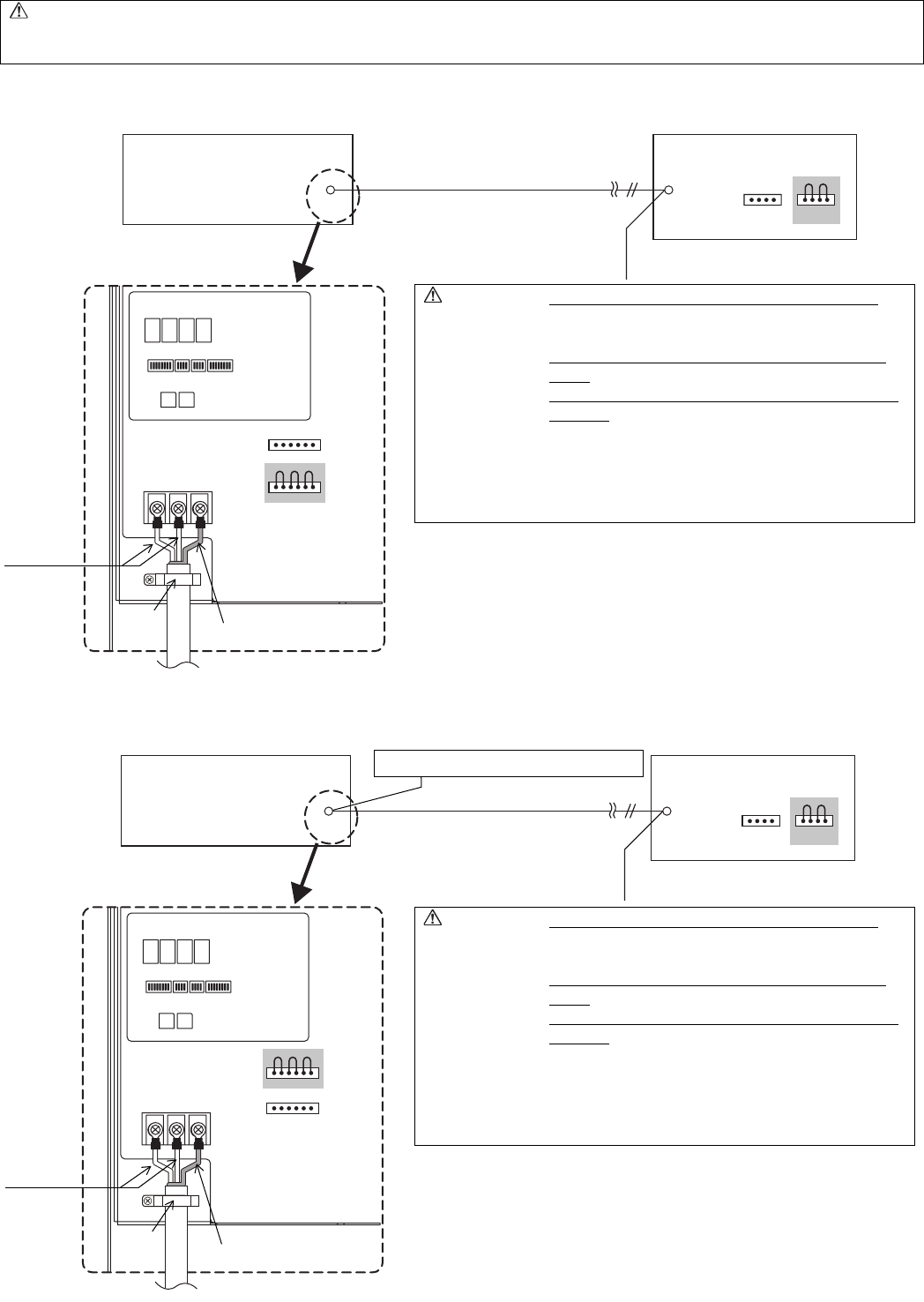

Connect the M-NET transmission lines and the power jumper as shown in the figure below.
(2) To not supply power to the M-NET transmission line from the BAC-HD150
Connect the M-NET transmission lines and the power jumper as shown in the figure below.
CAUTION • In an air conditioner system has more than 1 Outdoor units, System controller receiving transmission power
through TB7 on one of the Outdoor unit would have a risk that the connected Outdoor units failure would stop
power supply to System controller, and disrupt the whole system.
M-NET
TB7
TB3
CN40 CN41
CN41
CN41
CN41
CN40CN40
OFF
ONON
TB3
ABS
BM ADAPTER
(BAC-HD150)
Outdoor unit
CAUTION • Connect the shield to the S terminal of TB3.
Insulate the cables with vinyl tape, except the part
that connects to the ring terminal.
• Connect the power jumper of BAC-HD150 to
CN40 (supplies power).
Connect the power jumper of the outdoor unit
to CN41 (does not supply power).
• Use the type of transmission lines specified, and
connect them to the appropriate terminals. Secure
the cables to keep undue force from being applied.
Improper connections or failure to properly secure
cables may result in overheating and fire.
M-NET
transmission line
(non-polarized)
Shield
Cable
clamps
M-NET
TB7
TB3
CN40
CN40
CN40
TB3
ABS
CN41
CN40CN40
OFF
ONON
CN41
CN41
CN41
Shield
Cable
clamps
BM ADAPTER
(BAC-HD150)
Outdoor unit
CAUTION • Connect the shield to the S terminal of TB3.
Insulate the cables with vinyl tape, except the part
that connects to the ring terminal.
• Connect the power jumper of BAC-HD150 to
CN41 (does not supply power at factory setting).
Connect the power jumper of the outdoor unit
to CN41 (does not supply power).
• Use the type of transmission lines specified, and
connect them to the appropriate terminals. Secure
the cables to keep undue force from being applied.
Improper connections or failure to properly secure
cables may result in overheating and fire.
Power supply unit (PAC-SC51KUA...etc)
M-NET
transmission line
(non-polarized)
