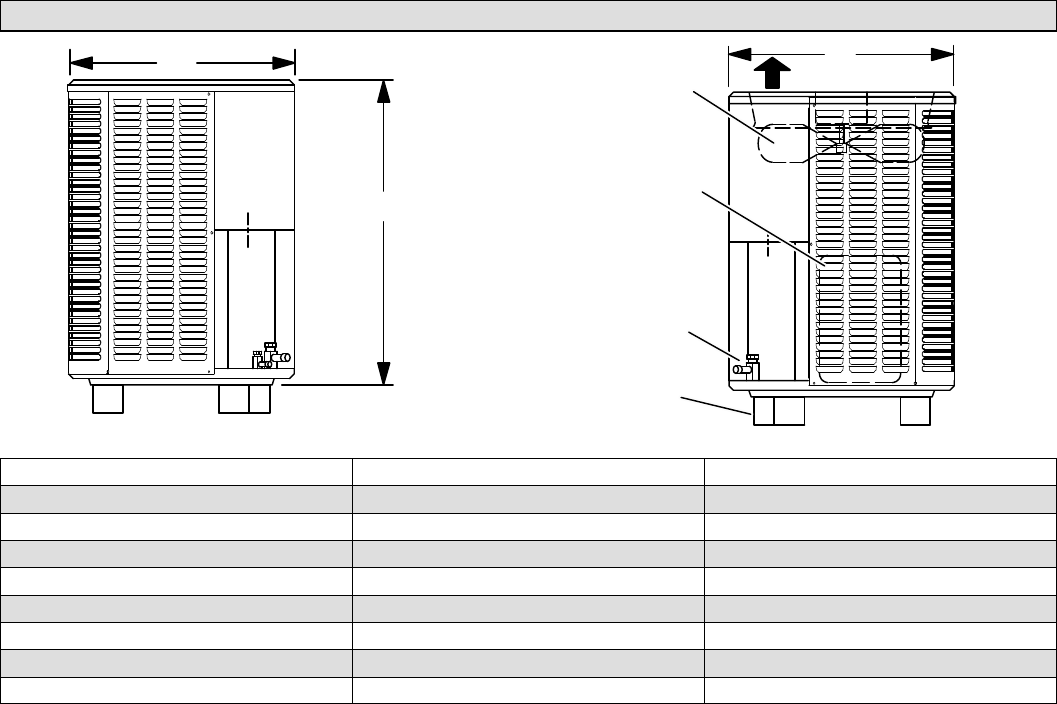

Unit Dimensions − Inches (mm)
SUCTION AND LIQUID
LINE CONNECTION
DISCHARGE AIR
SIDE VIEW
OUTDOOR
COIL FAN
COMPRESSOR
A
B
A
OPTIONAL UNIT STANDOFF KIT (4)
(FIELD INSTALLED)
SIDE VIEW
Model Numbers A B
14ACX−018−230 24−1/4 (616) 29−1/4 (743)
14ACX−024−230 28−1/4 (724) 33−1/4 (845)
14ACX−030−230 28−1/4 (724) 37−1/4 (946)
14ACX−036−230 28−1/4 (724) 37−1/4 (946)
14ACX−042−230 28−1/4 (724) 29−1/4 (743)
14ACX−041−230 and 14ACX−048−230 28−1/4 (724) 37−1/4 (946)
14ACX−059−230 32−1/4 (819) 37−1/4 (946)
14ACX−047−230 and 14ACX−060−230 32−1/4 (819) 33−1/4 (845)
