NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

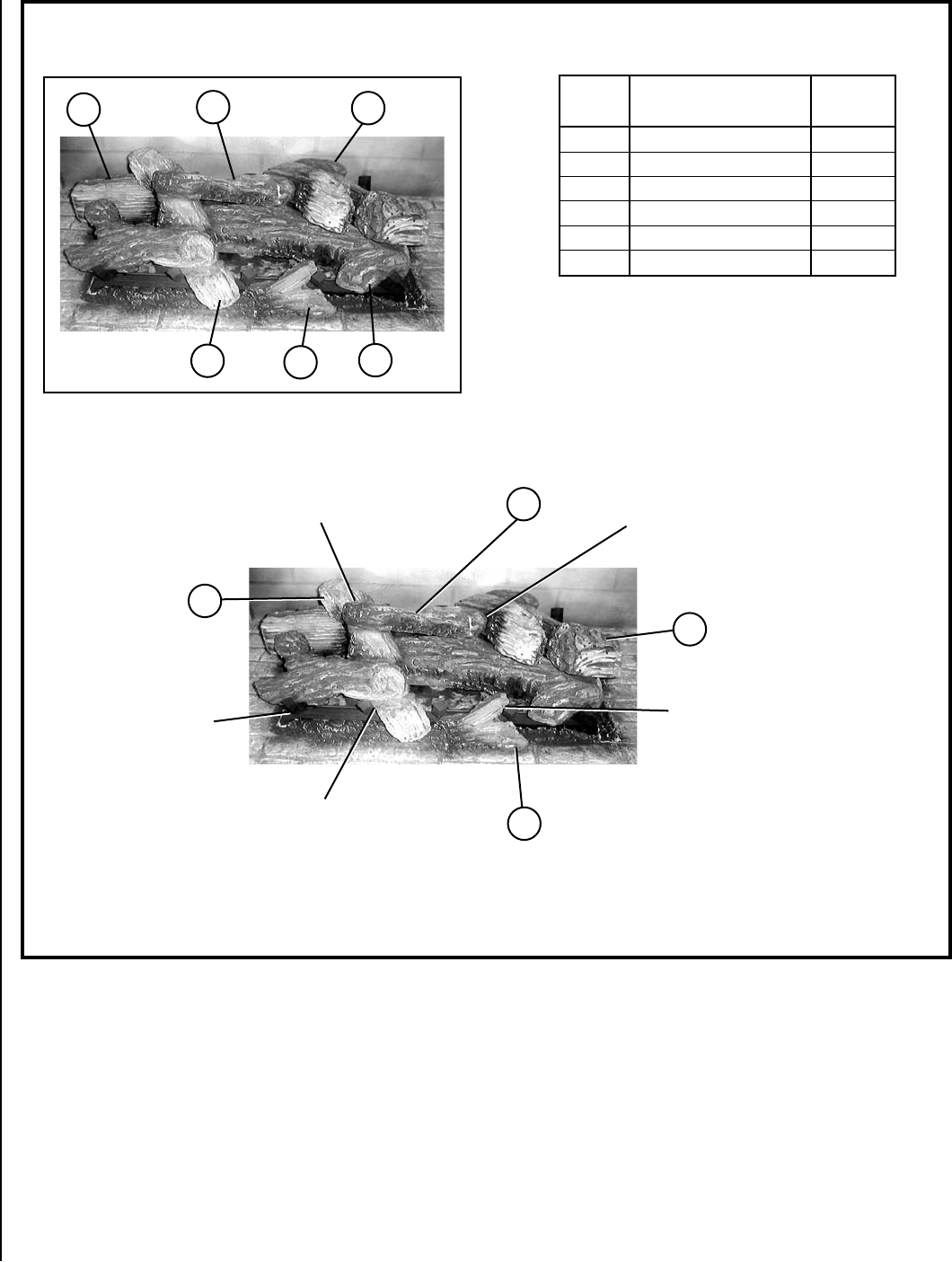

EDVPF, EDVST, EDVCL AND EDVCR LOG PLACEMENT (CONTINUED)
Catalog Number for the entire log set: 55M04
Log Part
Number Description Number
1 Log, Corner 55M18
2 Log, Rear/Left 55M19
3 Log, Front/Left 55M20
4 Log, Rear/Right 55M21
5 Log, Front/Center 55M22
6 Log, Center/Top 55M23
2
6
5
4
1
3
Figure 8
3
Grate
Assembly
5
Position Small End Of Log (6)
On The Notch Of Log (3) Here
6
4
Position The Round End Of Log (6)
Against The Notch Of Log (4) Here.
Two Charred Spots Face The Front
Position The Groove In The Back
Of Log (3) Against The Grate
Rest Log (5) Against
The Grate Here
Log (5) Sits In Front
Of The Grate
STEP 5
