Haier AB484FCAHA Air Conditioner User Manual



22

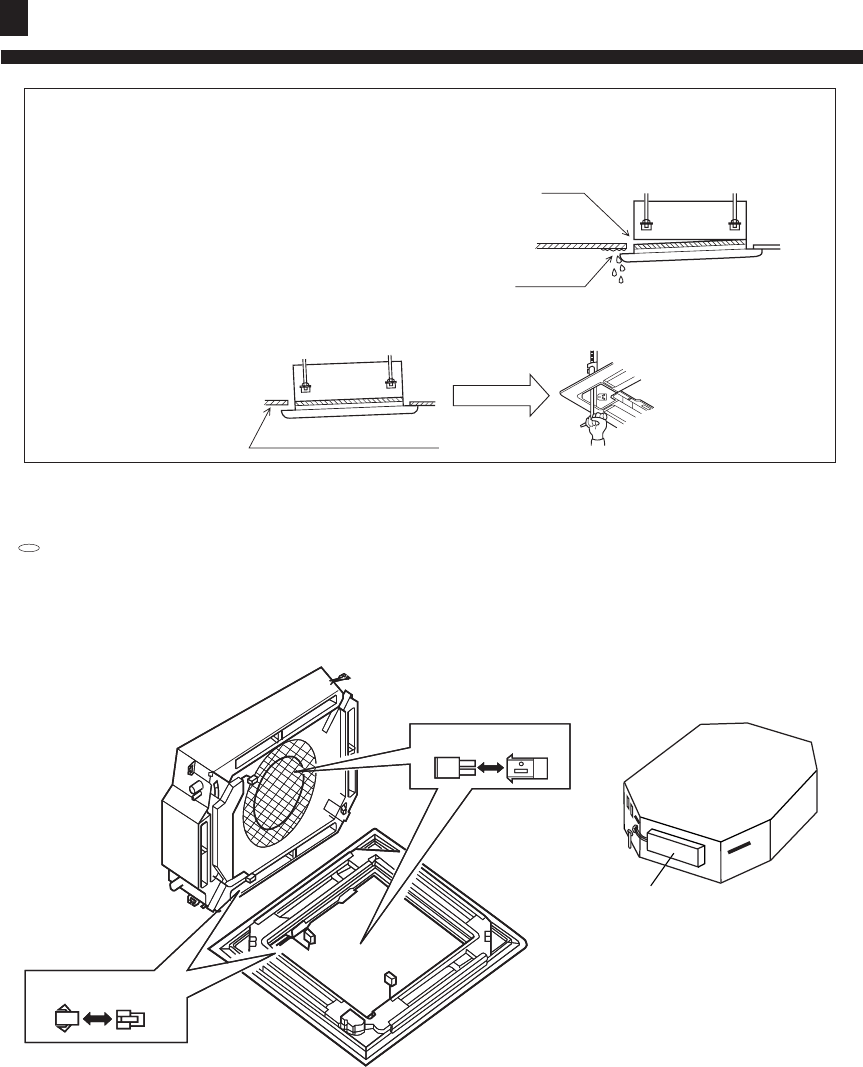

Wiring of Decorated Board
a. Connect it to the connector of the wind deflector motor lead on the decorated board (Fig. 5);
b. Connect it to the receiving terminal of remote control on the decorated board.
side of decorated board
side of indoor unit
electrical cabinet
AB184~484FCAHA
<circuit diagram>
(different from the actual condition)
Fig.5
Attention
Inappropriate tightening of screws might cause the faults as
shown in Fig. 3.
Tighten the screws properly.
If there is still a gap between the decorated board and the ceiling
after tightening the screws, please readjust the height of the body
of the indoor unit. (Fig. 4)
If the indoor unit keeps the horizontal level and the drainpipe
cant be influenced, adjust the height of the body of the indoor
unit from the holes on the angles of the decorated board.
air leakage
leakage
from roof
pollution
vapour condensate drops
Fig.3
any gap is not allowed
Fig.4
Installation Procedures
