CHECK FILTER
The ability of any humidifier to efficiently supply humidity output relies heavily on the
condition of the filter. As the filter loads with impurities it gradually loses its wicking
capability. When this happens, moisture output is reduced and the humidifier has to work
longer to satisfy the selected setting
1) This humidifier has a check filter reminder timed to appear after
720 hours of operation. When the Check Filter (CF) message is
displayed, disconnect the power cord and check the condition of
the filter. If a build-up of deposits or severe discoloration is
evident replace the filter to restore maximum efficiency.
2) The CF function is reset after plugging the unit back in.
CONTROL LOCK FEATURE
To avoid unwanted tampering with the humidifier settings the controls
can be locked.
ACTIVATION PROCEDURE
After the humidifier functions have been set up, hold the Speed and
Humidity buttons down for 5 seconds. The display will show “CL” for
2 seconds.
Release the buttons and the control will resume the display of the room humidity.
The humidifier will continue to function with the locked in settings. If buttons are
operated while “CL” is active, the “CL” is displayed and settings are unaffected.
DEACTIVATION PROCEDURE
To deactivate the “CL” function simply press and hold both buttons for 5 seconds.
“CL” will flash at the rate of 1 second on and 1 second off for a period of 2
seconds and then resume the display of room humidity.
REPLACEMENT OF WICK
CAUTION: Before changing wick, ensure unit is turned OFF and unplugged.
NOTE: This unit uses 2 model 1040 wicks. Replace the wick at the beginning of
each season, and more often in areas with hard water.
1) Lift off chassis and set aside.
2) Lift off transition molding tray, then remove and discard used wicks.
3) Install new wicks according to instructions listed in ASSEMBLY section.
OPTIONAL AIRCARE
®
FILTER
This humidifier is built to accommodate the two-stage 1050 optional air purifying
filter. The first stage is a high-efficiency, electrostatically-charged filter media which
traps dust, pollen and airborne pollutants. The second stage is an activated carbon
media which absorbs odors from cooking, pets or tobacco smoke.
We recommend replacing the AIRCARE
®
filter at least once a year, more often if
necessary. When the white filter media is coated with a layer of dust and dirt, it is
time to replace the filter.
NOTE: The certified water output of your humidifier will be reduced when using the
AIRCARE
®
filter. The AIRCARE
®
filters are optional and are not required for
normal operation of the humidifier
. necessary. When the white filter media is
coated with a layer of dust and dirt, it is time to replace the filter.

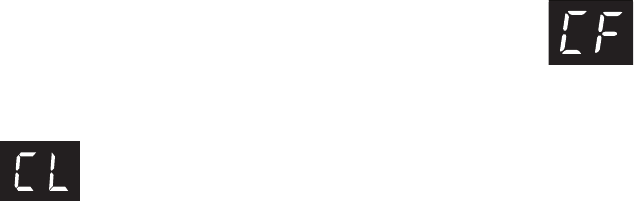

Check Filter
Function Display
Control Lock
Display
