INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
1. PRECAUTIONS
Improper installation may damage equipment/could
endanger life, cause serious injury and/or property
damage.
A. Read Installation and Operating Instructions carefully
before attempting to start your air conditioner installa-
tion.
B. The Dometic Corporation will not be liable for any
damages or injury incurred due to failure in following
these instructions.
C. Installation must comply with the National Electrical
Code and any State or Local Codes or regulations.
D. DO NOT add any devices or accessories to this air
conditionerexceptthosespecicallyauthorizedby
Dometic.
E. Thisequipmentmustbeservicedbyqualiedpersonnel
and some states require these people to be licensed.
2. CHOOSING PROPER LOCATION
FOR THE AIR CONDITIONER
Thisairconditionerisspecicallydesignedforinstallationontheroof
of a recreational vehicle (RV).
A. NORMAL LOCATION
Theairconditionerisdesignedtotoveranexistingroof
vent opening. When the vent is removed, it normally
creates a 14-1/4” X 14-1/4” (±1/8”) opening.
B. OTHER LOCATIONS
When no roof vent is available or another location is desired, the
following is recommended:
1. For one unit installation: The air conditioner should be
mounted slightly forward of center (front to back) and
centered from side to side.
2. For two unit installations: Install one Air Conditioner
1/3 and one Air Conditioner 2/3’s from front of RV and
centered from side to side.
It is preferred that the air conditioner be installed in a relatively at and
level roof section measured with the RV parked on a level surface.
Note: A 15° slant to either side, or front to back, is acceptable.

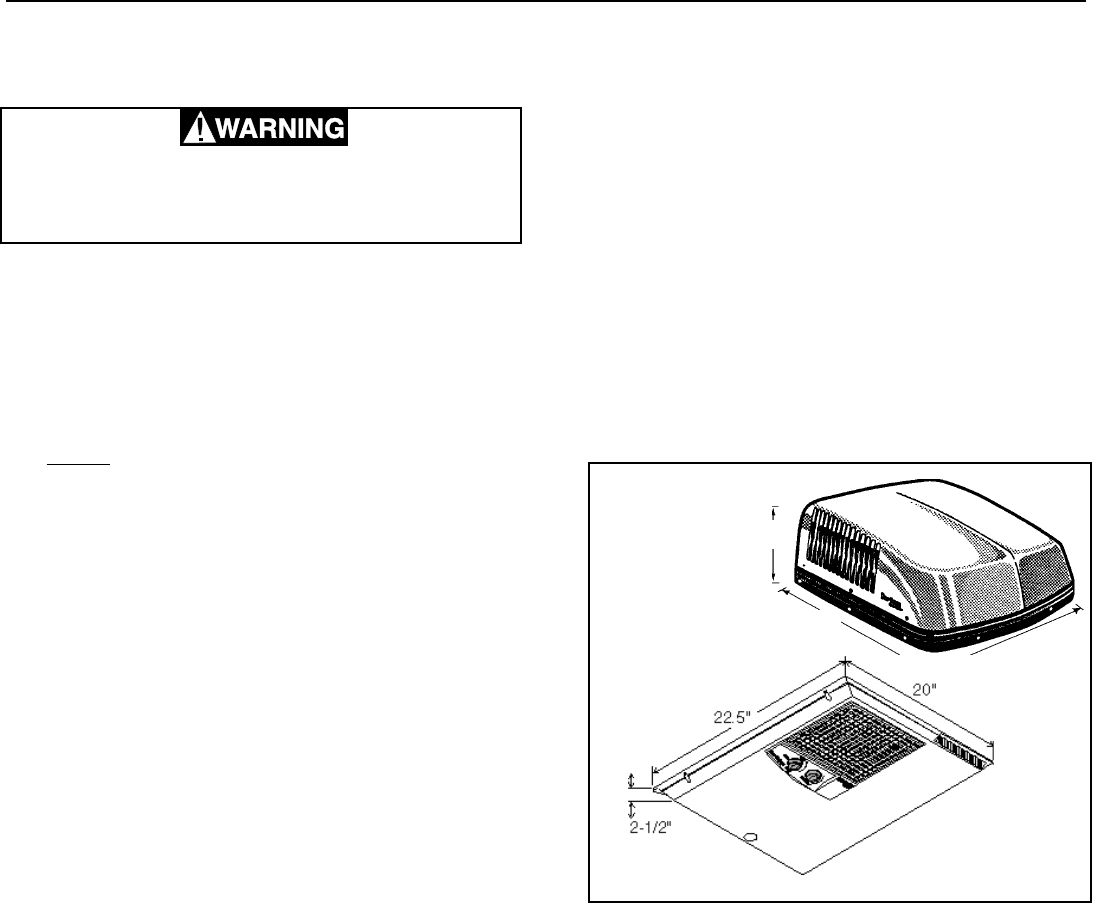

FIG. 1
34.4”
12.7”
*
29.5”
