INSTALLATION INSTRUCTIONS

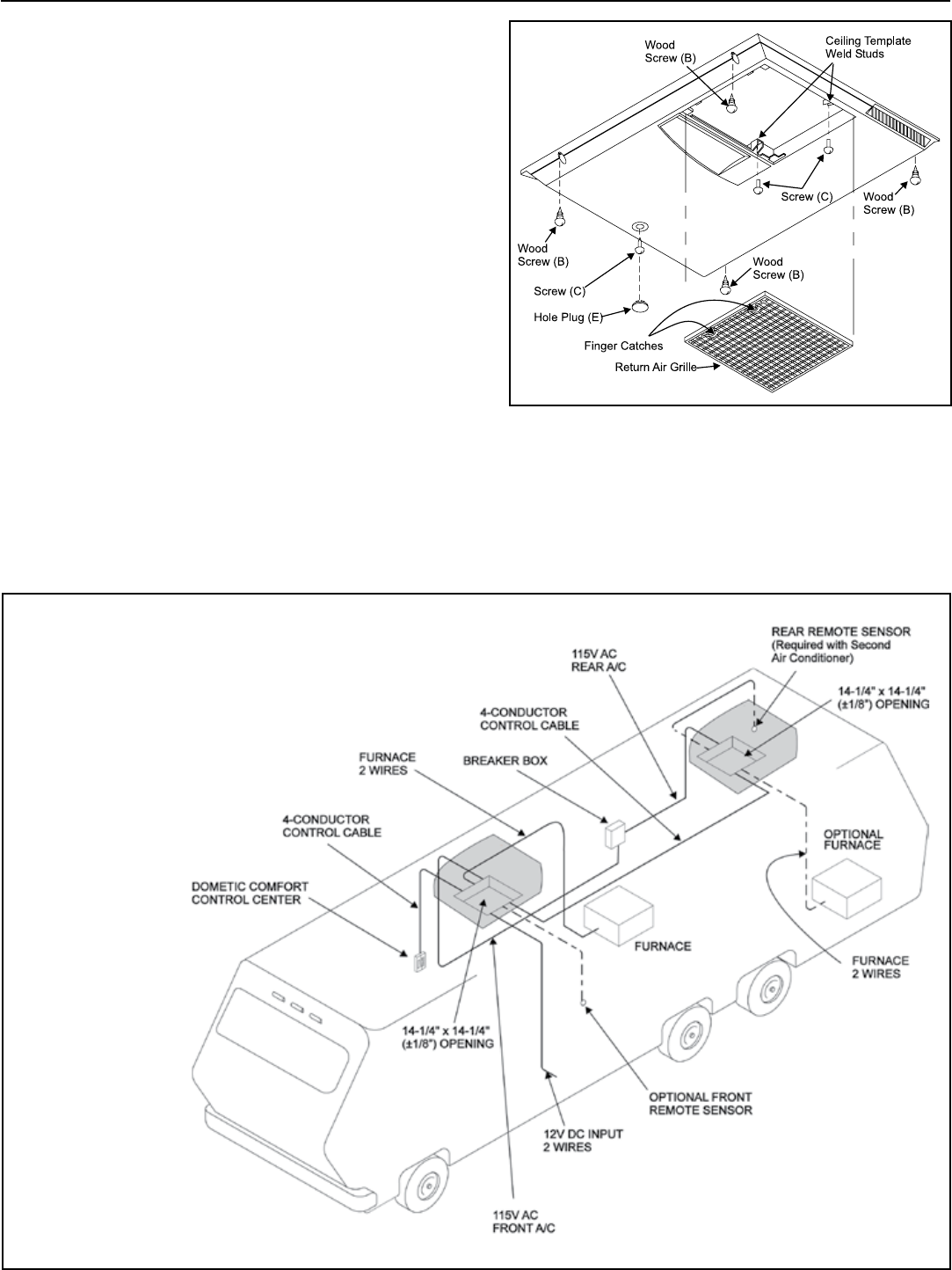

FIG. 16
Two Zone Conguration
FIG. 15
9. AIR BOX INSTALLATION
A. Remove return air grille from air box by pulling in on half-
roundngercatches.
B. Hold air box up to ceiling template and install three (3)
#10 x 3/8” (C) screws at air box mounting point.
C. Snap hole plug (E) into place at rear of air box.
D. Install four (4) wood screws (B) which hold the air box
tight to ceiling, if desired.
E. Reinstallreturnairgrilleandlterintoairbox.
F. The air conditioner installation is now complete. Turn on
power to the unit for operational check. Please read Unit
Operating Instructions before proceeding.
Note: There are four optional mounting holes on the outer
edge of the return air opening for which screws are provided.
These are only required where an uneven ceiling does not
allowproperttingoftheairbox.
