JWDSK Series Installation Instructions
8
Adjust display Roll, Pitch, and YAW tension
1. Disconnect all wires and cable from the display.
2. Remove two Lower screws securing display to Centris cup.
3. Loosen two Upper screws securing display.
4. Lift display upward and away from mount.

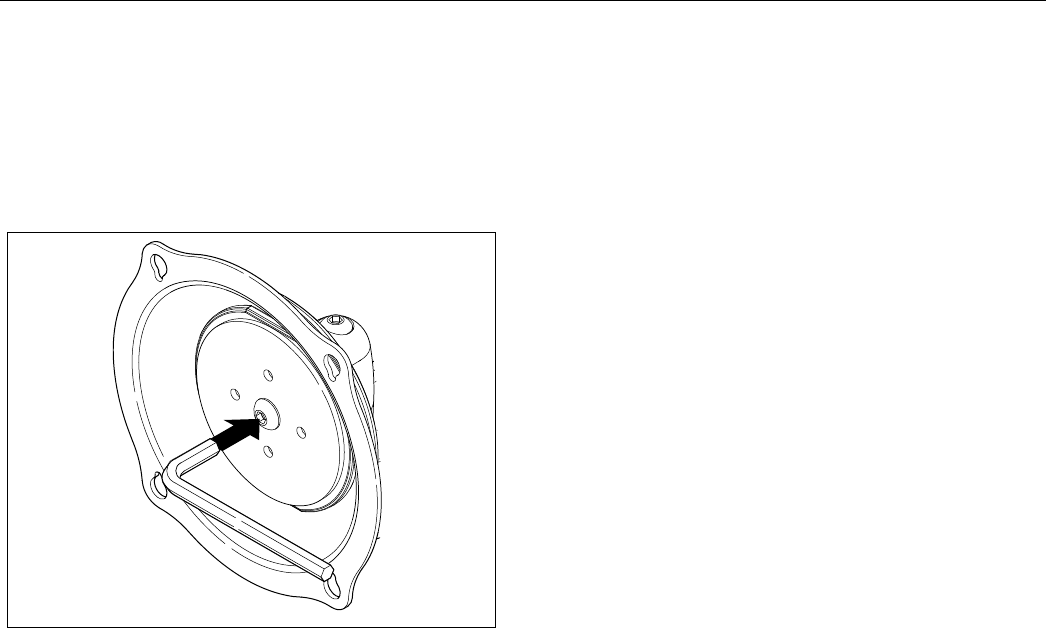

5. Using a hex head wrench turn the tension adjustment screw
clockwise to increase tension, or counter-clockwise to
decrease tension. (See Figure 11)
6. Re-install display.
Figure 11
