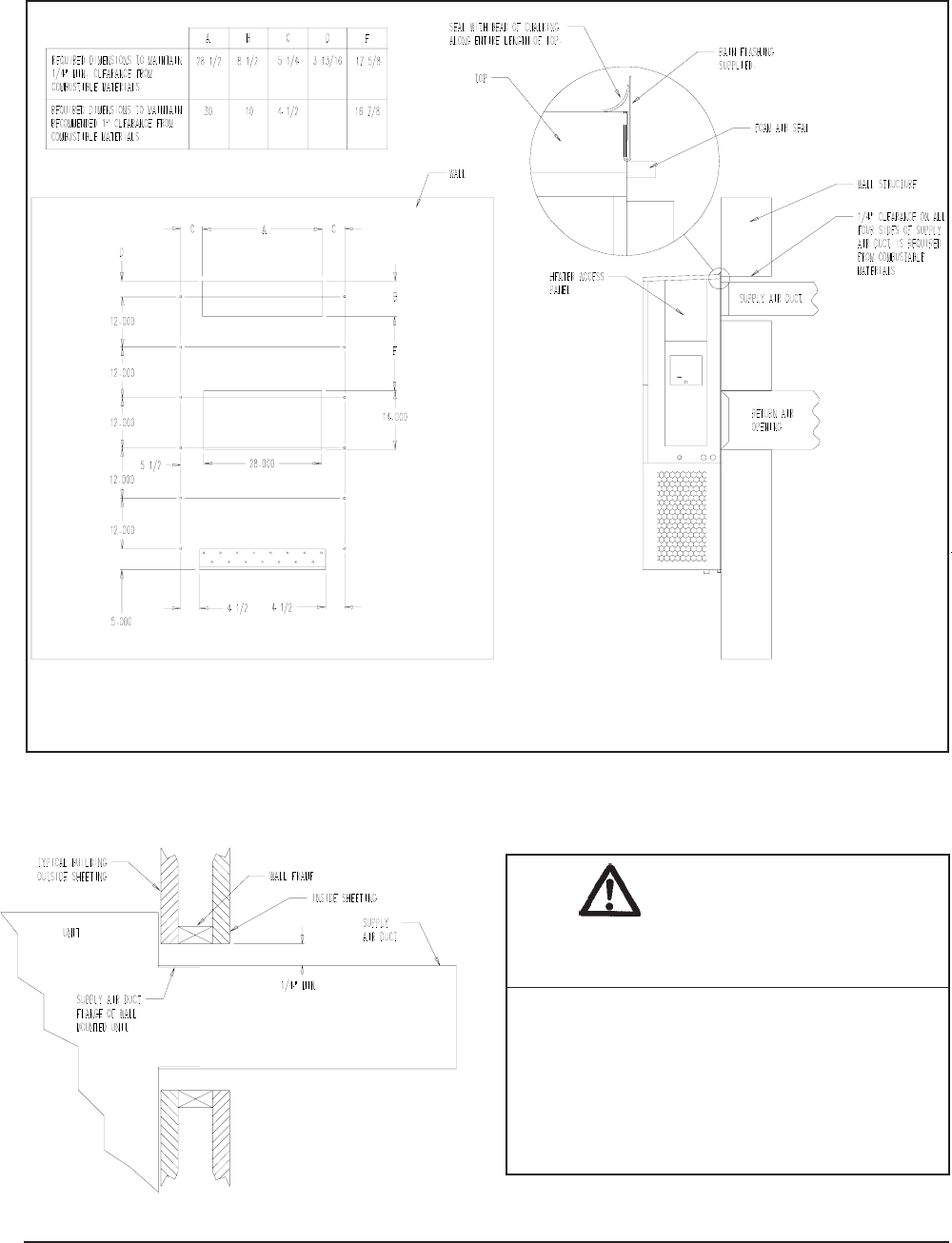

FIGURE 3
MOUNTING INSTRUCTIONS
NOTE: It is recommended that a bead of silicone caulking be
placed behind the side mounting flanges and under the
top flashing at the time of installation.
Side section view of
supply air duct for wall
mounted unit showing 1/4
inch clearance to
combustible surfaces.
FIGURE 4
ELECTRIC HEAT CLEARANCE
MIS-277
WARNING
WARNING
• A minimum of 1/4 inch clearance must be
maintained between the supply air duct and
combustible materials. This is required for
the first 3 feet of ducting.
• It is important to insure that the 1/4 inch
minimum spacing is maintained at all
points.
• Failure to do this could result in overheat-
ing the combustible material and may
result in fire.
MIS-311
4 9/
16
