035-19046-002-B-0104
12 Unitary Products Group
CLEARANCES
All units require particular clearances for proper operation
and service. Installer must make provisions for adequate
combustion and ventilation air in accordance with section 5.3
of Air for Combustion and Ventilation of the National Fuel Gas
Code, ANSI Z223.1 – Latest Edition (in U.S.A.), or Sections
7.2, 7.3, or 7.4 of Gas Installation Codes, CSA-B149.1 (in
Canada) - Latest Edition, and/or applicable provisions of the
local building codes. Refer to Table 6 for clearances required
for combustible construction, servicing, and proper unit oper-
ation.

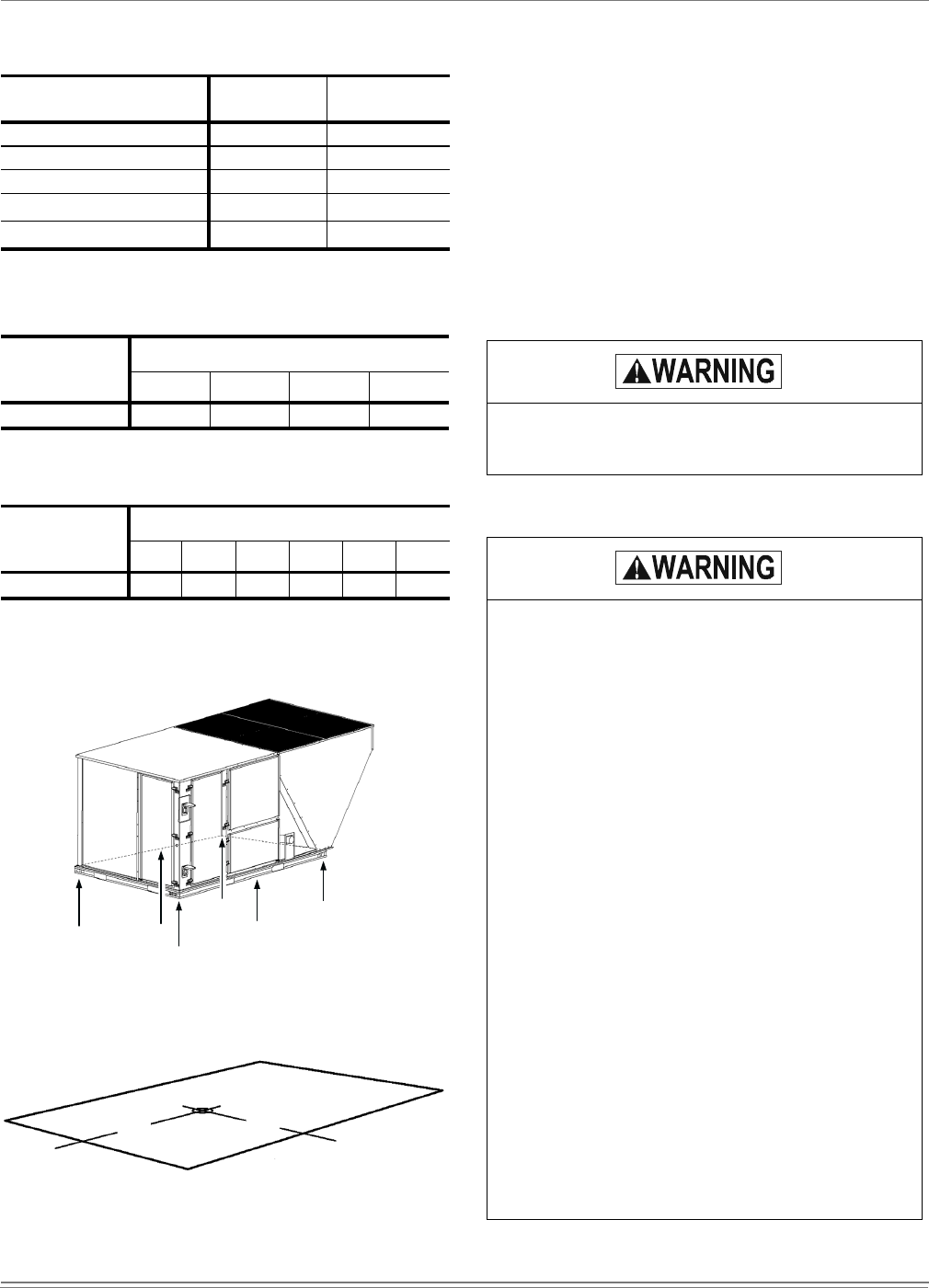

TABLE 3: UNIT WEIGHTS
Model DJ150
Shipping
Weight (lb.)
Operating
Weight
(lb.)
Cooling Unit Only
1415 1400
w/Economizer
85 84
w/Power Exhaust
150 148
w/Gas Heat
*
*.
8 Tube Heat Exchanger
110 110
w/Electric Heat
†
†.
54 kW heater
49 49
TABLE 4: 4 POINT LOAD WEIGHT
Model
Location (lbs.)
*
*.
Weights include largest gas heat option.
ABCD
DJ150
282 323 424 371
TABLE 5: 6 POINT LOAD WEIGHT
Model
Location (lbs.)
*
*.
Weights include largest gas heat option.
ABCDEF
DJ150
184 201 220 289 264 242
FIGURE 5 - UNIT 6 POINT LOAD
FIGURE 6 - UNIT CENTER OF GRAVITY
A
B
F
E
C
D
LEFT
FRONT
47-½"
25-½"
LEFT
FRONT
Do not permit overhanging structures or shrubs to
obstruct condenser air discharge outlet, combustion
air inlet or vent outlets.
Excessive exposure to contaminated combustion air
will result in safety and performance related prob-
lems. To maintain combustion air quality, the recom-
mended source of combustion air is the outdoor air
supply. The outdoor air supplied for combustion
should be free from contaminants due to chemical
exposure that may be present from the following
sources.
• Commercial buildings
• Indoor pools
• Laundry rooms
• Hobby or craft rooms
• Chemical storage areas
The following substances should be avoided to
maintain outdoor combustion air quality.
• Permanent wave solutions
• Chlorinated waxes and cleaners
• Chlorine based swimming pool cleaners
• Water softening chemicals
• De-icing salts or chemicals
• Carbon tetrachloride
• Halogen type refrigerants
• Cleaning solvents (such as perchloroethylene)
• Printing inks, paint removers, varnishes, etc.
• Hydrochloric acid
• Cements and glues
• Anti-static fabric softeners for clothes dryers
• Masonry acid washing materials
