A
B
C
D
FRONT
4 POINT LOADS

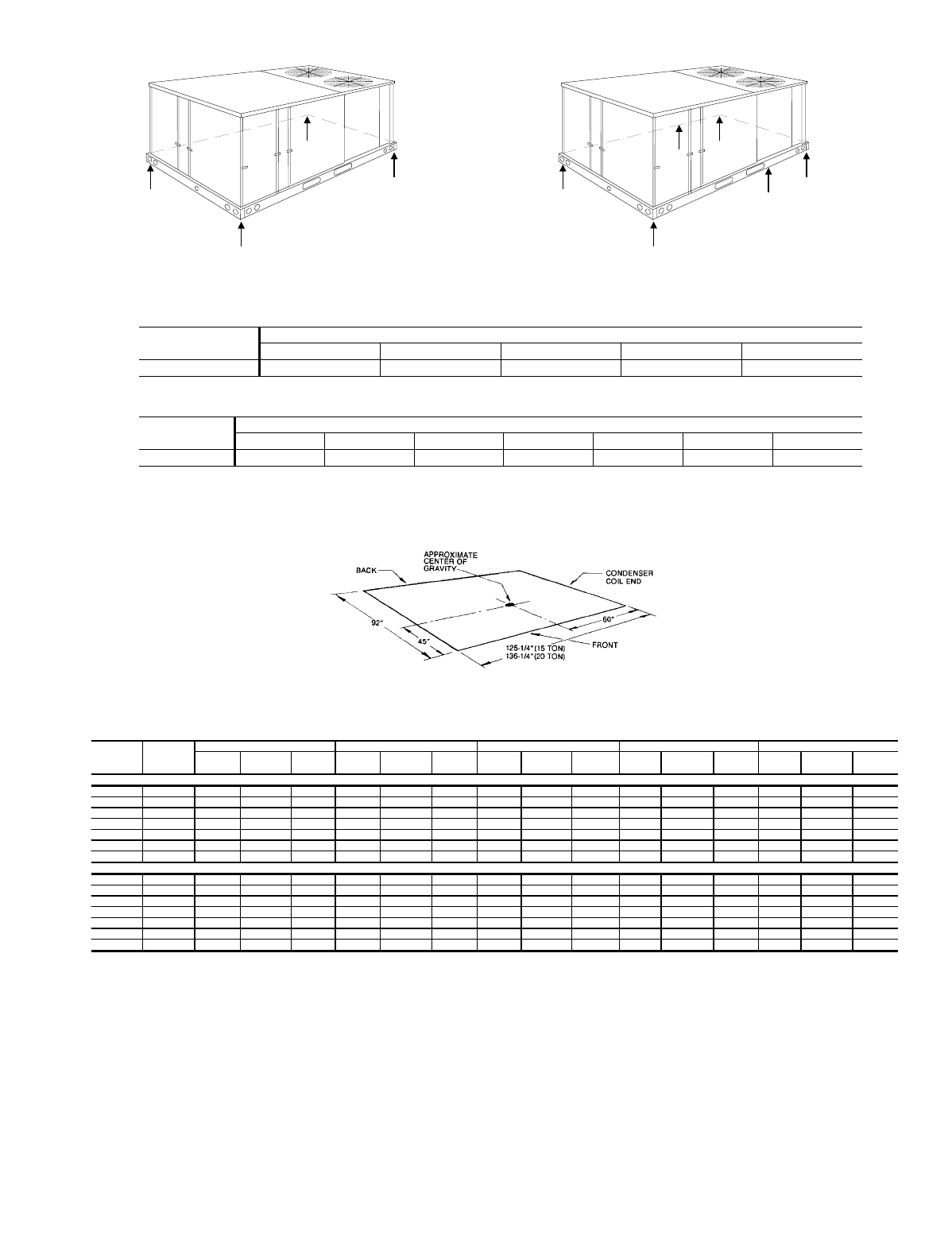

FIG. 11
- FOUR AND SIX POINT LOADS
A
E
D
B
F
C
FRONT
6 POINT LOADS
UNIT
4 - POINT LOADS (LBS)
TOTAL A B C D
300 3,130 615 671 962 882
NOTE: These weights are with economizer, high heat, and the largest blower motor available.
UNIT
6 - POINT LOADS (LBS)
TOTAL A B C D E F
300 3,130 418 438 533 628 603 510
NOTE: These weights are with economizer, high heat, and the largest blower motor available.
TABLE 7
- FOUR AND SIX POINT LOADS
TABLE 8
- SUPPLY AIR BLOWER PERFORMANCE
DCE300
- BOTTOM DUCT CONNECTIONS
(
COOLING APPLICATIONS)
BLOWER PULLEY
SPEED TURNS ESP OUTPUT INPUT ESP OUTPUT INPUT ESP OUTPUT INPUT ESP OUTPUT INPUT ESP OUTPUT INPUT
rpm
OPEN:
iw
bhp
kW
iw
bhp
kW
iw
bhp
kW
iw
bhp
kW
iw
bhp
kW
975 6.0* 1.4 5.9 4.9 1.0 7.3 6.0 0.5 8.8 7.2 - - - - - -
1005 5.0 1.6 6.2 5.1 1.2 7.7 6.3 0.7 9.2 7.6 0.1 10.9 8.9 - - -
1040 4.0 1.8 6.6 5.4 1.4 8.1 6.7 0.9 9.7 8.0 0.3 11.4 9.4 - - -
1070 3.0 2.0 6.9 5.7 1.6 8.5 7.0 1.1 10.2 8.3 0.6 11.9 9.8 - - -
1100 2.0 2.1 7.3 6.0 1.8 8.9 7.3 1.3 10.6 8.7 0.8 12.4 10.2 0.2 14.3 11.7
1135 1.0 2.4 7.7 6.3 2.0 9.3 7.6 1.6 11.1 9.1 1.0 13.0 10.6 0.4 14.9 12.2
1165 0.0 2.6 8.0 6.6 2.2 9.7 8.0 1.8 11.6 9.5 1.3 13.5 11.0 0.7 15.5 12.7
1140 6.0 2.4 7.7 6.3 2.1 9.4 7.7 1.6 11.2 9.2 1.1 13.1 10.7 0.5 15.0 12.3
1180 5.0 2.7 8.2 6.7 2.3 9.9 8.1 1.9 11.8 9.7 1.4 13.7 11.2 0.8 15.8 12.9
1215 4.0 2.9 8.6 7.0 2.6 10.4 8.5 2.2 12.3 10.1 1.7 14.3 11.7 1.1 16.4 13.5
1255 3.0 3.2 9.1 7.4 2.9 11.0 9.0 2.5 12.9 10.6 2.0 15.0 12.3 1.4 17.2 14.1
1290 2.0 3.4 9.5 7.8 3.1 11.5 9.4 2.7 13.5 11.1 2.2 15.6 12.8 - - -
1330 1.0 3.7 10.0 8.2 3.4 12.0 9.9 3.0 14.1 11.6 2.6 16.4 13.4 - - -
1365 0.0 3.9 10.5 8.6 3.7 12.6 10.3 3.3 14.7 12.1 2.9 17.0 13.9 - - -
NOTES:
Blower performance is based on coolin
onl
unit, with fixed outdoor air, 2" T/A filters and a dr
evaporator coil.
Refer to pa
e 14 for additional static resistances.
ESP - External Static Pressure available for the suppl
and return air duct s
stem. All internal unit resistances have been deducted from the total static pressure of the
blower.
* FACTORY SETTING
12500 CFM
STANDARD DRIVE:
ACCESSORY DRIVE:
7500 CFM 8750 CFM 10000 CFM 11250 CFM
530.18-N11Y
Unitary Products Group 13
