Units may be moved or lifted with a forklift. Slotted openings
in the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60
INCHES.
CLEARANCES
All units require particular clearances for proper operation
and service. Installer must make provisions for adequate
ventilation air in accordance with applicable provisions of the
local building codes. Refer to Table 6 for clearances required
for combustible construction, servicing, and proper unit oper-
ation.
Before lifting, make sure the unit weight is distrib-
uted equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rig-
ging cable damage with plywood or other suitable
material.

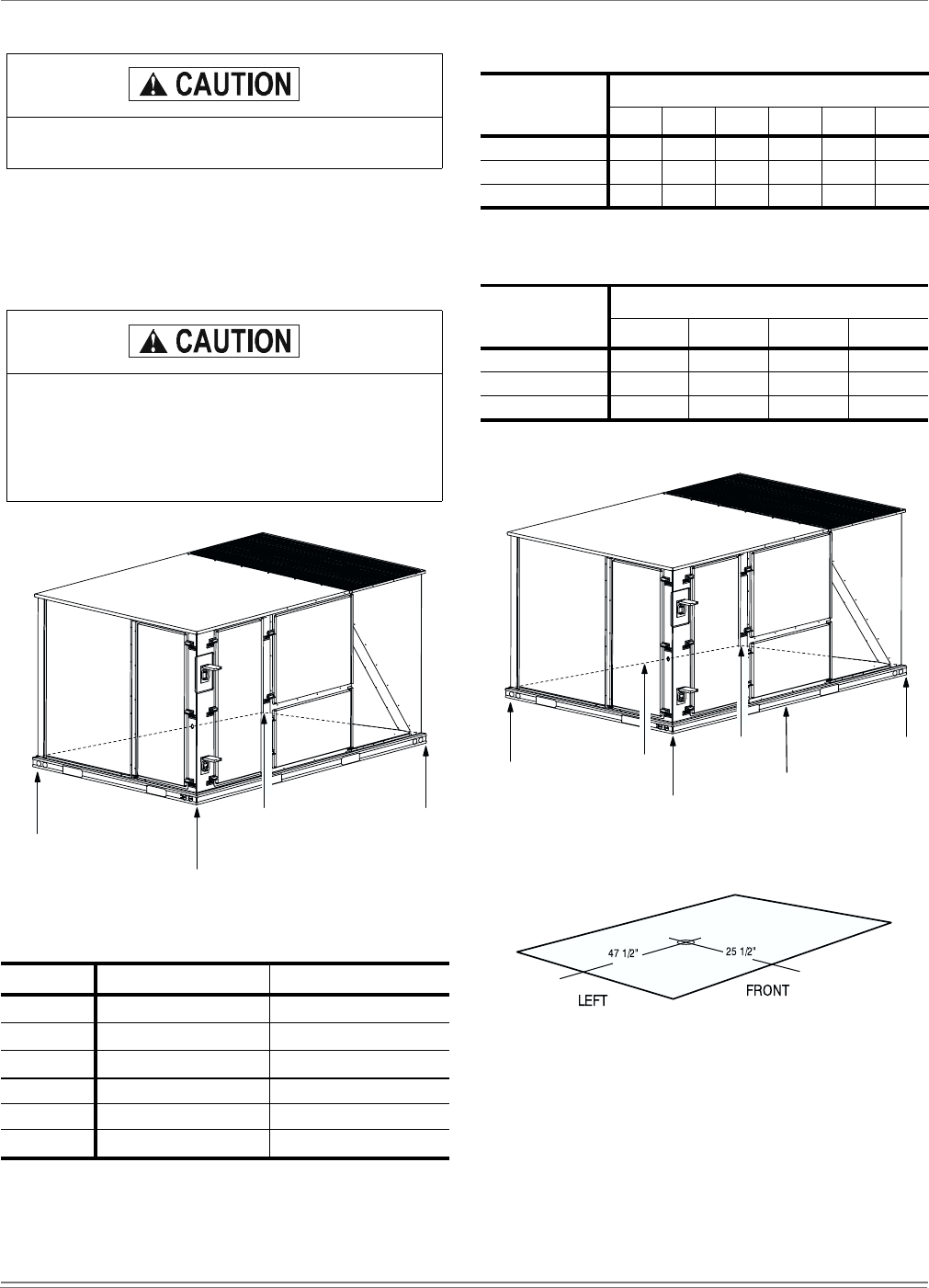

FIGURE 5 - UNIT 4 POINT LOAD
TABLE 3: UNIT WEIGHTS
Model
Shipping Weight
*
(lb.)
*.
Weights include largest gas heat option.
Operating Weight
†
(lb.)
†.
54kW heater.
DM090 1056 1051
DM120
1121 1116
DM150 1200 1195
Econ. 85 84
w/ PE 150 148
Elec. Heat
2
49 49
D
A
CB
L E F T
F R O N T
TABLE 4: 6 POINT LOAD WEIGHT
Model
Location (lbs.)
*
*.
Weights include largest gas heat option.
ABCDEF
DM090
158 142 128 187 207 230
DM120 168 151 136 198 219 244
DM150 180 161 145 212 235 262
TABLE 5: 4 POINT LOAD WEIGHT
Model
Location (lbs.)
*
*.
Weights include largest gas heat option.
ABCD
DM090
230 197 287 336
DM120 245 209 305 357
DM150 262 224 327 382
FIGURE 6 - UNIT 6 POINT LOAD
FIGURE 7 - UNIT CENTER OF GRAVITY
D
A
C
B
E
F
L E F T
F R O N T
