LOCATION
The installation location must allow adequate clearance for servicing and proper operation. A minimum front
clearance of 40" (1016 mm) is required. 0" sides and rear clearance from combustible and non-combustible
construction is required except when hot top sections are incorporated. Ranges incorporating hot top sections
require a 0" sides and rear clearance from non-combustible construction and 6" from combustible construction.
INSTALLATION CODES AND STANDARDS
Your Vulcan range must be installed in accordance with state and local codes, or in the absence of local codes,
with National Electrical Code ANSI/NFPA-70 (latest edition) available from The National Fire Protection
Association, Batterymarch Park, Quincy, MA 02269. In Canada refer to Canadian electrical code C22.1 Part 1
(latest edition).
ASSEMBLY
Leg/Caster Assembly
The range is shipped fully assembled, except for the legs. The range is provided with 6"(152 mm) adjustable
stainless steel legs (hardware included), packaged in a box located inside of the oven. A set of 6"(152 mm)
casters are available as an optional field installable accessory.
RANGE SERIES LEGS TO INSTALL CASTERS TO INSTALL
EV12 4 4
EV24 4 4
EV36 4 4
EV60 6 6
Installation of Legs/Casters:
1. Carefully tip or lift range to access bottom for leg installation.

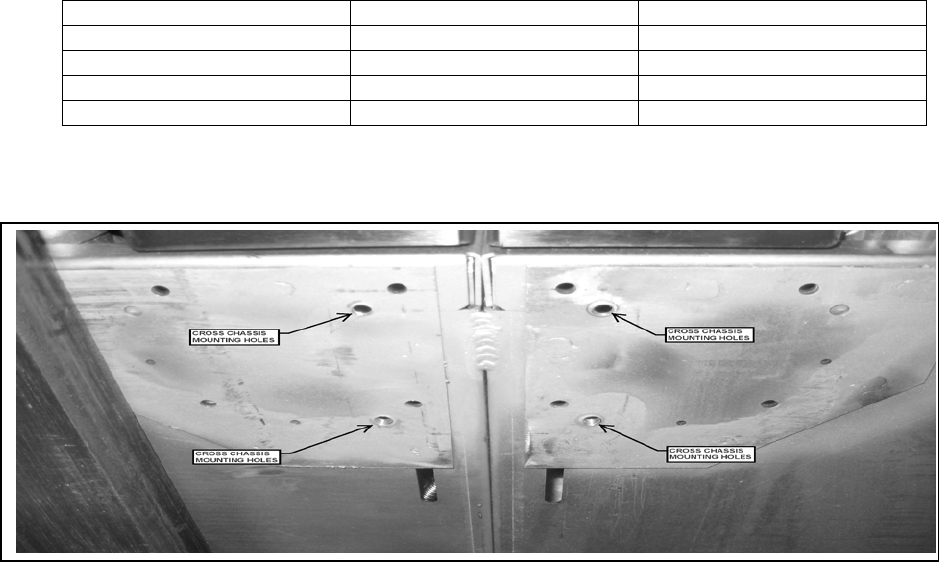

2. Align holes in leg/caster mounting plate with pre-drilled holes in bottom of range located in each of the
four corners. Two additional legs/casters must be installed on the EV60. The additional legs/casters should be
installed utilizing the pre-drilled holes shown in Figure 1.
