Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
16
4 Object Model Diagram

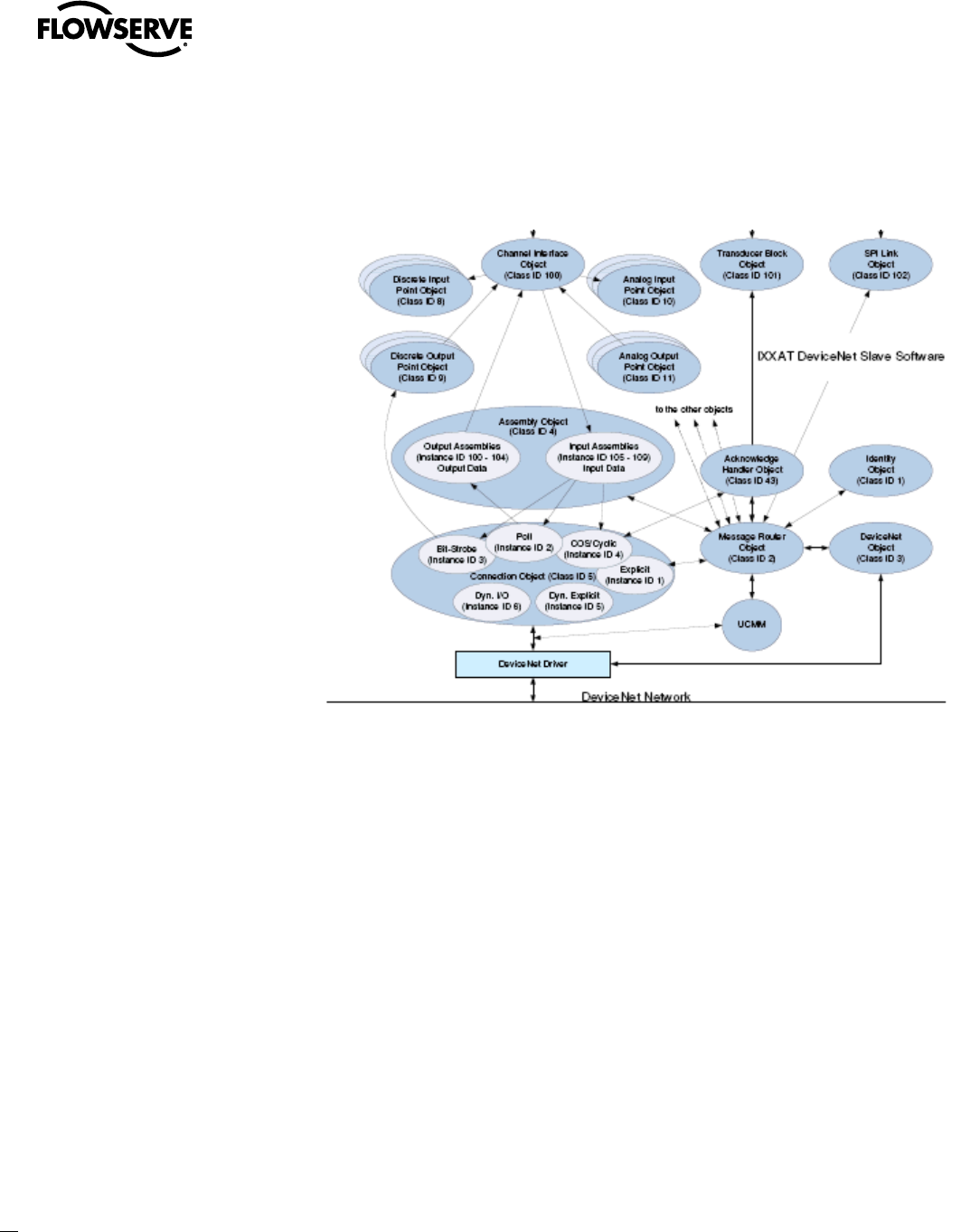

Figure 4.1 – Object Model of DeviceNet Limitorque Interface
4.1 Assembly Objects
The Assembly Object binds attributes of multiple objects, which allows data to or from each object to
be sent or received over a single connection. Assembly Objects can be used to bind input data or output
data. The terms input and output are defined from the networks point of view. An input will produce data
on the network and an output will consume data from the network
The terms input and output are defined from the networks point of view.
An input is a signal produced at the actuator and sent to the PLC via the network. •
