Controls
71
Vehicle Dock Reference Guide
Figure 55

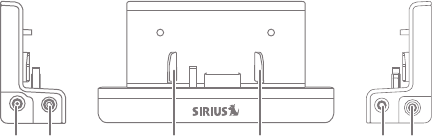

and the section following identify and describe the controls and connectors
of the vehicle dock.
Power (PWR) Connector: Power connection for the supplied cigarette lighter
adapter (see page 37).
Audio Out (AUDIO) Connector: Audio output for directly connecting to your
vehicle’s audio system (see pages 41 & 43).
Docking Rails: Fit-into slots in the back of the ST5 to secure it while it is docked
(see page 40).
FM OUT Connector: FM output for use with the optional FM Direct Adapter
(see page 42).
Antenna (ANT) Connector: Connection for the supplied magnetic antenna
(see page 36).
1.
2.
3.
4.
5.
AUDIO
PWR
FM OUT
ANT
1 2 433 5
Figure 55
