Exploded View/Disassembly&Assembly Instructions
5-4
This Document can not be used without Samsung's authorization

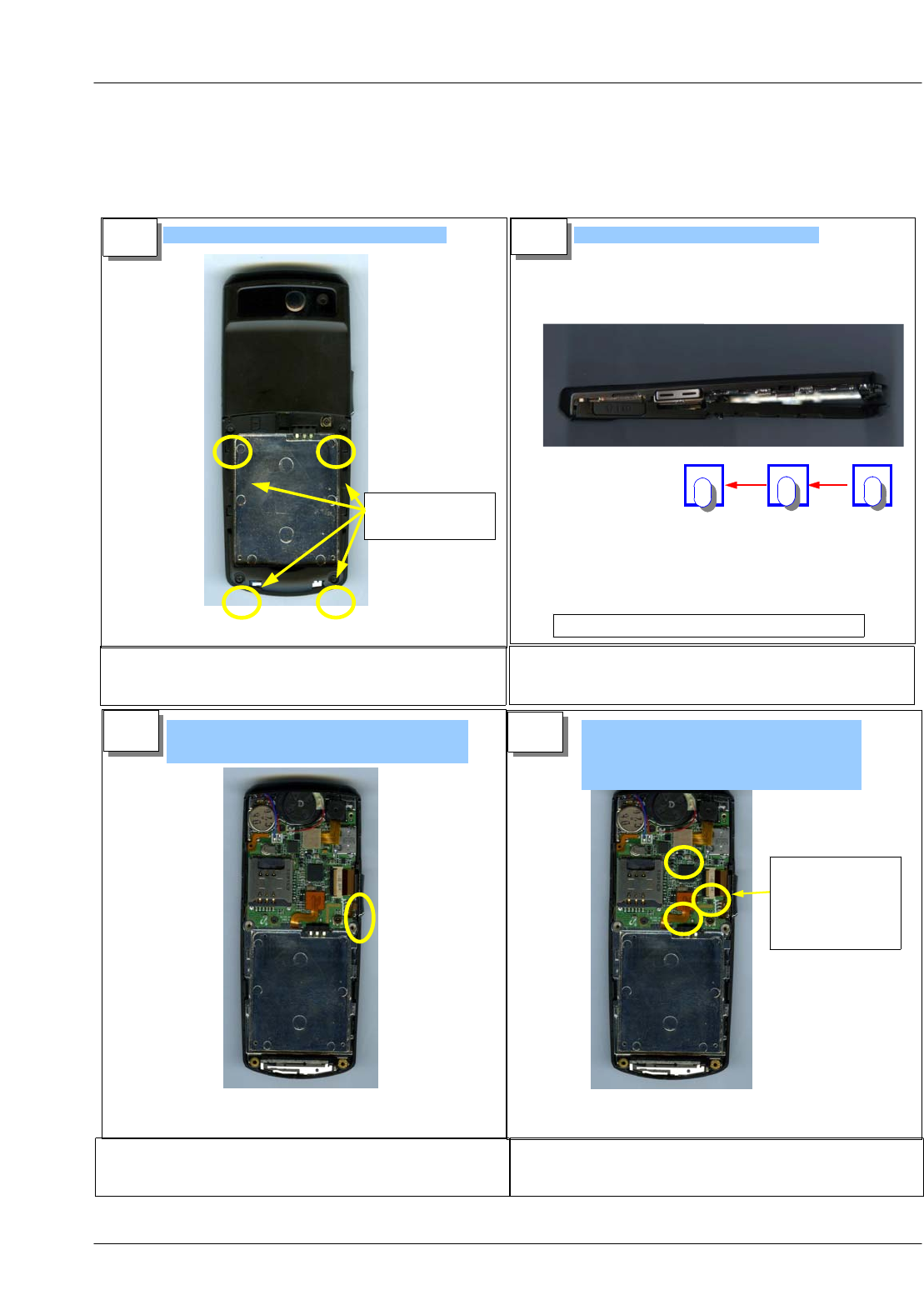

5-3. Disassembly and Assembly Instruction
5-3-1. Disassembly
1) Be careful of the damage of cover and scratch.
1) Be careful of the damage of cover and scratch.
1
Unscrew 4 screws in rear cover
2
Separate the rear cover
3
Separate the Camera Connector,
Main key PBA Connector and LCD
Connector from Main PBA
4
Remove the Volume key and separate
the Volume key PBA from case.
Unscrew marked
4 points
From the bottom part separte the rear cover
12
3
1) Be careful of the damage on key PBA
Use pinset for
separate
the LCD
connector
