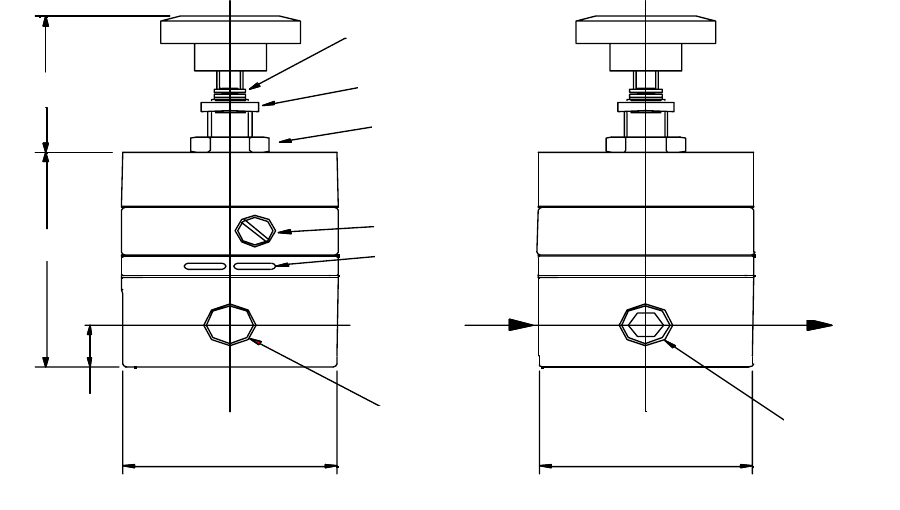

DIMENSION DETAILS
43.5 REF
Gauge
port 1/4”
NPT
Outlet
port
Inlet port
1/4” NPT
13.6 REF
69 REF
54 REF
Inlet port
Exhaust
slots
Bleed screw
Locknut for
mounting
Tension nut
Max. pressure
stop locknuts
54 REF
Ø
11 required for panel mounting
