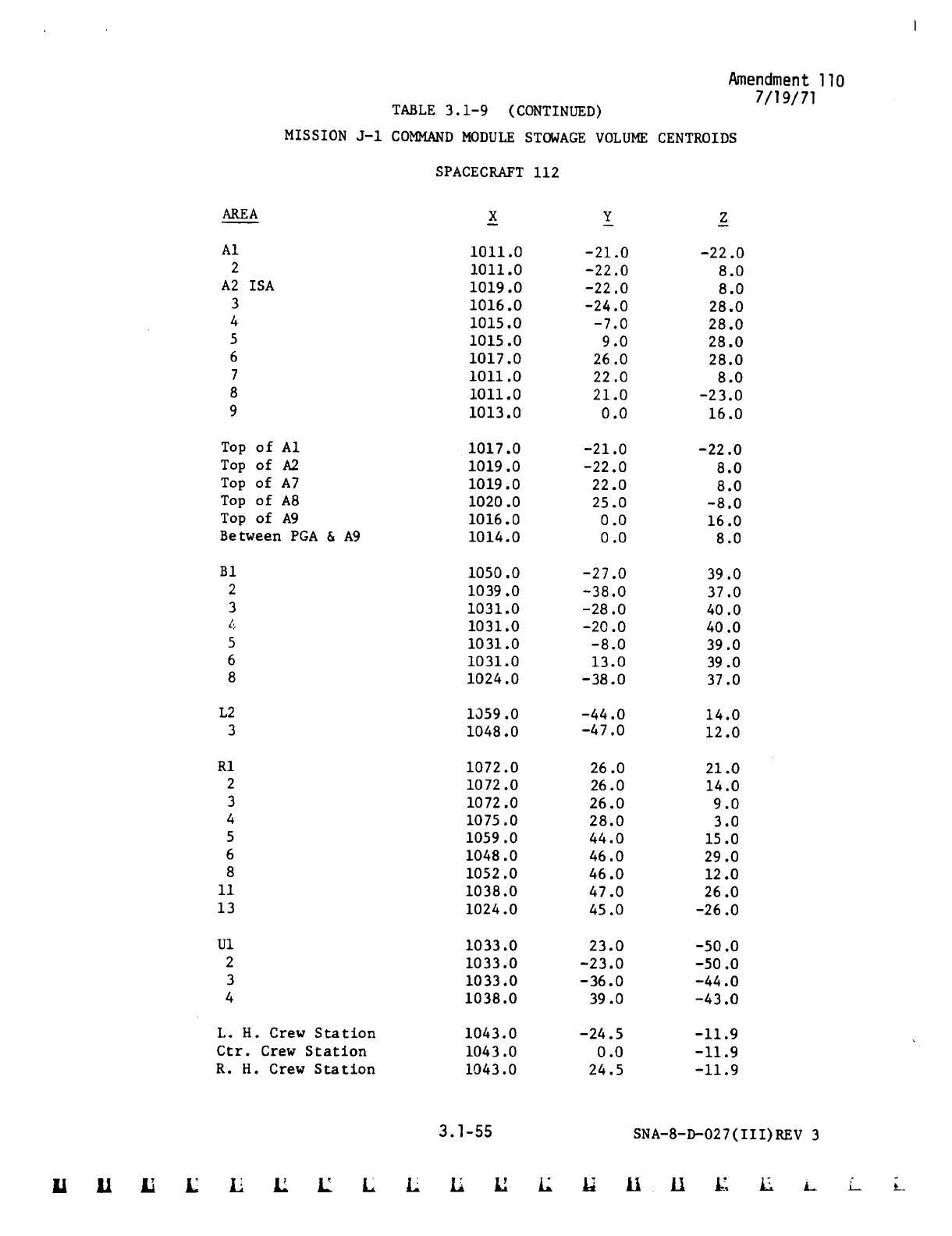

TABLE 3.1-9 (CONTINUED)
MISSION J-i COMMAND MODULE STOWAGE VOLUME CENTROIDS
SPACECRAFT 112
AREA X Y Z
A1 i011.0 -21.0 -22.0
2 i011.0 -22.0 8.0
A2 ISA 1019.0 -22.0 8.0
3 1016.0 -24.0 28.0
4 1015.0 -7.0 28.0
5 1015.0 9.0 28.0
6 1017.0 26.0 28.0
7 i011.0 22.0 8.0
8 i011.0 21.0 -23.0
9 1013.0 0.0 16.0
Top of A1 1017.0 -21.0 -22.0
Top of A2 1019.0 -22.0 8.0
Top of A7 1019.0 22.0 8.0
Top of A8 1020.0 25.0 -8.0
Top of A9 1016.0 0.0 16.0
Between PGA & A9 1014.0 0.0 8.0
B1 1050.0 -27.0 39.0
2 1039.0 -38.0 37.0
3 1031.0 -28.0 40.0
4 1031.0 -20.0 40.0
5 1031.0 -8.0 39.0
6 1031.0 13.0 39.0
8 1024.0 -38.0 37.0
L2 1059.0 -44.0 14.0
3 1048.0 -47.0 12.0
RI 1072.0 26.0 21.0
2 1072.0 26.0 14.0
3 1072.0 26.0 9.0
4 1075.0 28.0 3.0
5 1059.0 44.0 15.0
6 1048.0 46.0 29.0
8 1052.0 46.0 12.0
ii 1038.0 47.0 26.0
13 1024.0 45.0 -26.0
Ul 1033.0 23.0 -50.0
2 1033.0 -23.0 -50.0
3 1033.0 -36.0 -44.0
4 1038.0 39.0 -43.0
L. H. Crew Station 1043.0 -24.5 -11.9
Cir. Crew Station 1043.0 0.0 -ii.9
R. H. Crew Station 1043.0 24.5 -11.9
Amendment
7/19/71
110
3.1-55
SNA-8-D-027(III)REV 3
