NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
8
WARNING: THE FIREPLACE MUST BE
UNPLUGGED/DISCONNECTED FROM
THE POWER SUPPLY PRIOR TO ANY
MAINTENANCE OR CLEANING IN OR-
DER TO REDUCE THE RISK ELECTRIC
SHOCK OR FIRE.
WARNING: THE HALOGEN LIGHT
BULBS IN YOUR FIREPLACE CAN
BECOME EXTREMELY HOT. ALLOW AT
LEAST 10 MINUTES BETWEEN TURN-
ING OFF THE FIREPLACE AND REMOV-
ING LIGHT BULBS TO AVOID THE
ACCIDENTAL BURNING OF SKIN.
CAUTION: Do not exceed a 35 Watt bulb.
Use of a higher rater bulb may result in a fire,
causing prperty damage, personel injury or
loss of life.
CAUTION: Do not touch the bulbs, oils from
your skin will damage them when they heat up.
Use gloves or cloth when handling bulbs.

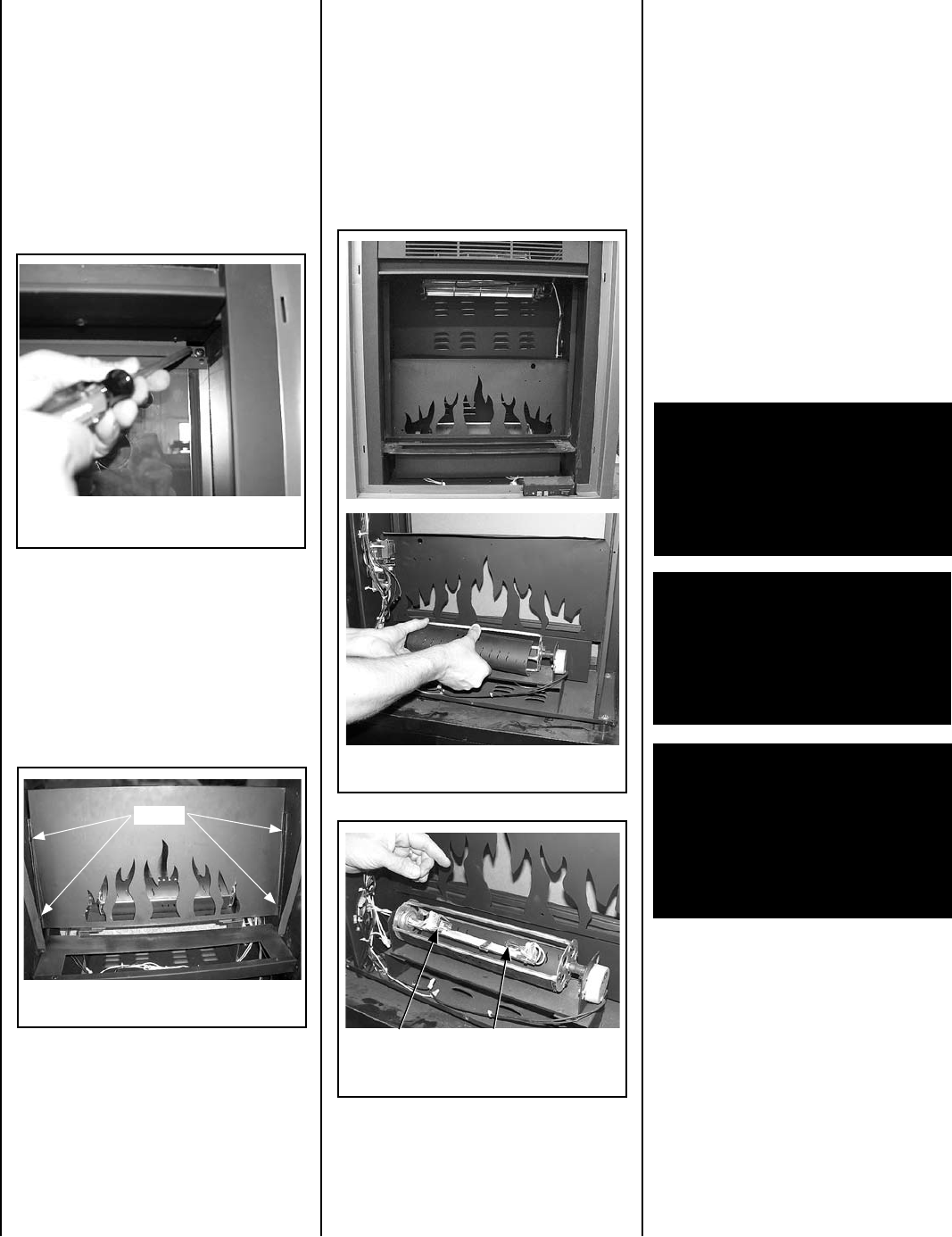

FLAME GENERATION BULBS
1. Hold the front glass panel, lift up and move
backwards to take out the front glass panel
(refer to Figure 6 ).
2. From the bottom, gently pull forward and lift
up log/ember bed until front edge clears the front
of the unit (do not pull up on logs).
3. Remove two screws on the top corners of the
glass that hold glass in place (see Figure 9 ).
WARNING: TURN OFF THE FIRE-
PLACE COMPLETELY AND LET COOL
BEFORE SERVICING. ONLY A QUALI-
FIED SERVICE PERSON SHOULD
SERVICE AND REPAIR THIS ELECTRIC
FIREPLACE.
Figure 9
4. With gloves and safety glasses in place, use
both hands to hold the bottom of the glass. Use
fingers to gently push the glass towards you
until the glass falls onto you hands. Gently hold
the glass, using both hands, and place glass on
smooth, soft surface to avoid breakage.
5. Remove screws and loosen and pull up and
away the flame board (see Figure 10 ).
Figure 11
Figure 12
9. Hold socket and push in new bulb (DO NOT
exceed wattage). Replace spring clip.
10. Replace steps 8 and 9 for second bulb.
11. Insert bottom edge of removed cylinder half
into bottom drum track. Squeeze drum cylinder
until its top edge fits into top drum track.
12. With gloves, carefully replace glass. Slide
top of glass into metal slot and slide bottom
onto ledge.
13. Place brackets against glass and tighten
screws.
14. Gently push ember bed down until it rests
inside its area.
15. Replace grate and screws.
7. Squeeze half of the drum cylinder (see Figure
11 ) until its top edge clears the top drum track.
Remove bottom edge of cylinder drum from the
bottom drum track. This will give you access
to the light bulbs.
Note: Do not exert excessive pressure on the
drum cylinder as this may cause damage.
8. Remove spring clip (see Figure 12 ). Hold
socket and pull out old bulb.
6. Locate flame generation cylindrical drum.
Figure 10
