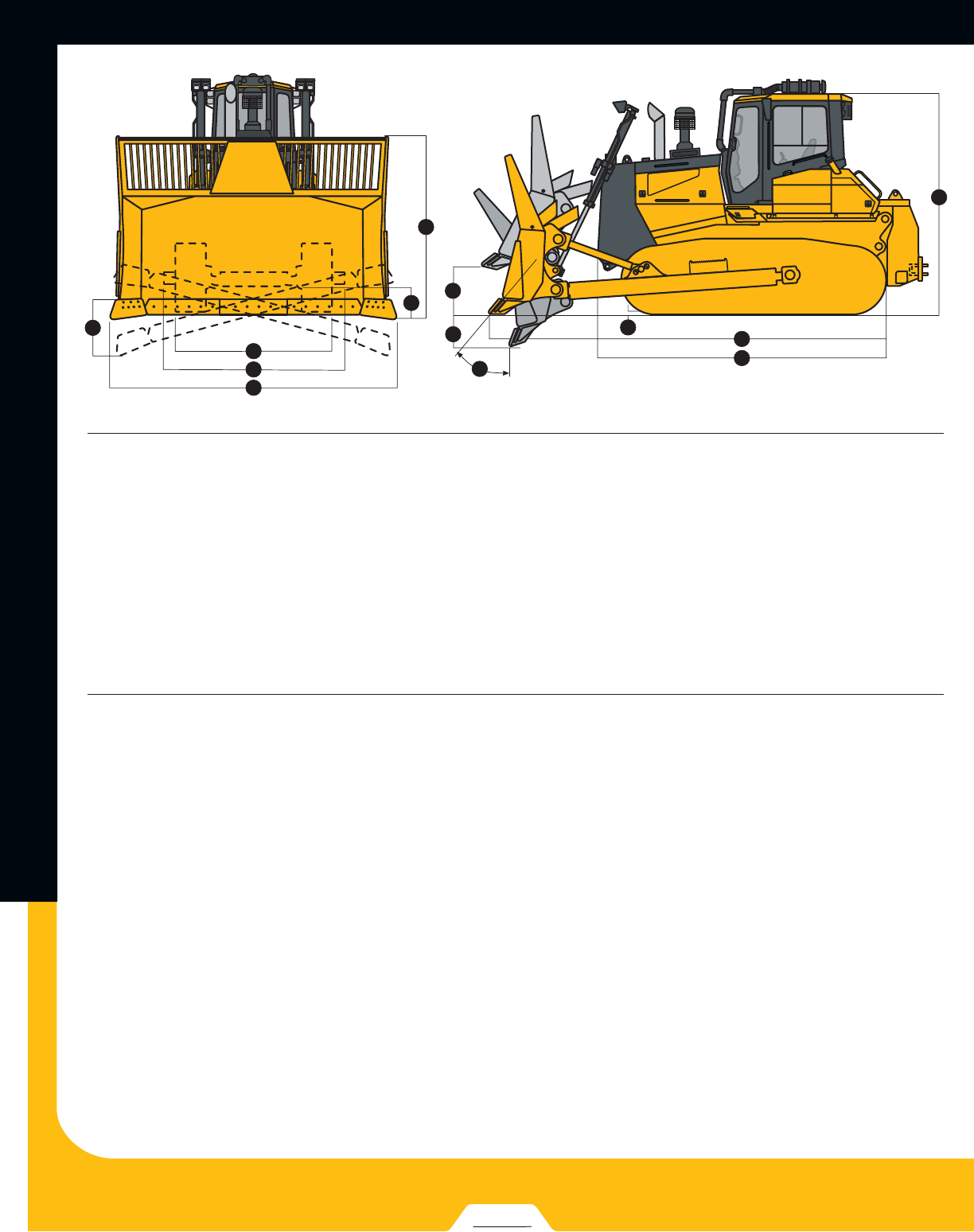

Machine Dimensions 1050J WH
A
Overall Height Over Cab* . . . . . . . . . . . . . . . . . . . . . . . 11 ft. 11 in. (3.63 m)
B Overall Length (without blade) . . . . . . . . . . . . . . . . . . . 16 ft. 0 in. (4.88 m)
C Height of Grousers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 in. (84 mm)
D Ground Clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 in. (635 mm)
E Total Width Over Blade-Mounting Trunnions . . . . . . . . . 10 ft. 4 in. (3.15 m)
F Overall Width
24-in. (610 mm) Extreme-Duty Single-Bar
Grouser Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 2 in. (2.79 m)
26-in. (660 mm) Extreme-Duty Single-Bar
Grouser Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 4 in. (2.84 m)
28-in. (711 mm) Extreme-Duty Single-Bar
Grouser Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 6 in. (2.90 m)
*
NOTE: Illustration shows optional cab-roof-mounted cab air precleaner system. Overall height does NOT include this option. With powered cab air precleaner system add 12 in. (296 mm).
Blade Specs
(with push beams, cupped end bits, and tilt cylinders)
semi-U dozer blade U dozer blade
semi-U dozer blade with trash rack U dozer blade with trash rack
Weight
With Mechanical Pitch Adjustment . . . . . . . . . . . . . . . 13,318 lb. (6041 kg) 14,420 lb. (6541 kg) 14,908 lb. (6762 kg) 16,092 lb. (7299 kg)
With Power Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13,567 lb. (6154 kg) 14,670 lb. (6654 kg) 15,157 lb. (6875 kg) 16,341 lb. (7412 kg)
With Standard Cutting Edges . . . . . . . . . . . . . . . . . . . 7,033 lb. (3190 kg) 8,135 lb. (3690 kg) 8,622 lb. (3911 kg) 9,806 lb. (4448 kg)
SAE Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.6 cu. yd. (8.92 m
3
) 25.8 cu. yd. (19.79 m
3
) 15.3 cu. yd. (11.8 m
3
) 32.8 cu. yd. (25.05 m
3
)
G Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 5 in. (1.7 m) 7 ft. 10 in. (2.4 m) 5 ft. 5 in. (1.7 m) 7 ft. 10 in. (2.4 m)
H Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 ft. 3 in. (4.03 m) 13 ft. 3 in. (4.03 m) 14 ft. 2 in. (4.3 m) 14 ft. 2 in. (4.3 m)
I Lifting Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 7 in. (1.4 m) 4 ft. 7 in. (1.4 m) 4 ft. 7 in. (1.4 m) 4 ft. 7 in. (1.4 m)
J Blade Digging Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . 22 in. (570 mm) 22 in. (570 mm) 22 in. (570 mm) 22 in. (570 mm)
K Maximum Blade Pitch Adjustment . . . . . . . . . . . . . . . . 10 deg. 10 deg. 10 deg. 10 deg.
L Maximum Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 5 in. (1043 mm) 3 ft. 5 in. (1043 mm) 3 ft. 5 in. (1043 mm) 3 ft. 5 in. (1043 mm)
M Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 ft. 4 in. (6.5 m) 21 ft. 4 in. (6.5 m) 22 ft. 8 in. (6.9 m) 22 ft. 8 in. (6.9 m)
