Connection to the ports (continued)

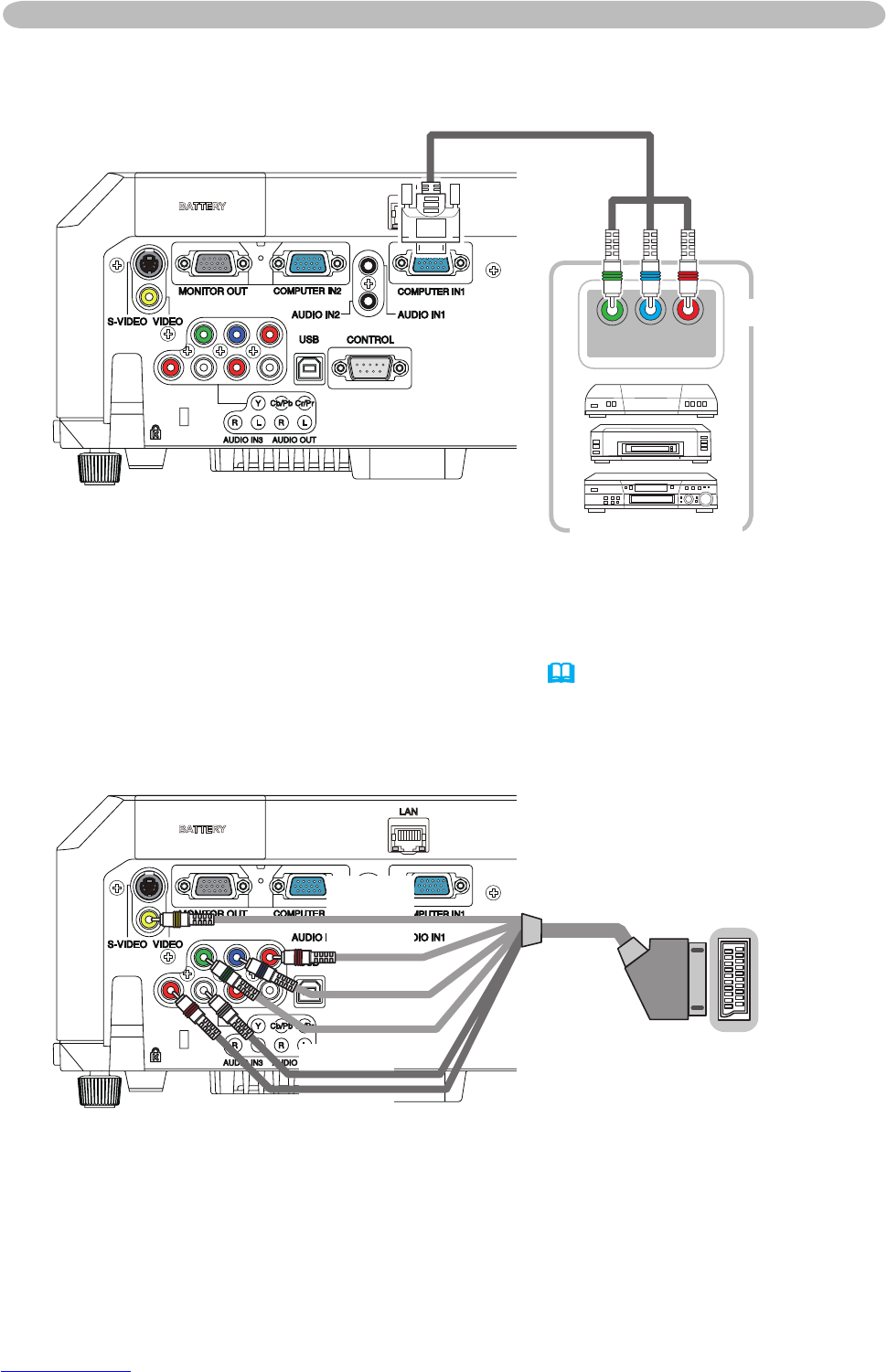

To input SCART RGB signal;
ex.
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex.. For more reference, please consult your
dealer.
SCART connector
(jack)
SCART cable
(plug)
RCA plugs
To input component video signal to COMPUTER IN ports
ex.
To input component video signal to the COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1 and IN2 port (&3).
BAT TERY
LAN
Y CB/PB CR/PR
COMPONENT VIDEO OUT
RCA plugs
D-sub plug
VCR/DVD player
RCA connectors
