Main Cover and Paper Input Assembly
1 Remove the toner cartridge.
2 Remove memory door (HP LaserJet 5L and 6L).
CAUTION Remove the memory door first (HP LaserJet 5L and 6L). The door will break if you remove the Main
Cover without removing the memory door.
3 Remove the EP Door Assembly.
4 Remove the Back Cover.
5 Remove the (2) screws from the top of the printer (Figure 6-6, callout 1).
6 Grasp the two lower, front corners of the printer and pull gently outward to release the front of the
Main Cover.
7 Lift the cover straight off.
8 Remove the Paper Input Assembly (Figure 6-6, callout 2) by rotating it forward and lifting it out
with firm pressure.

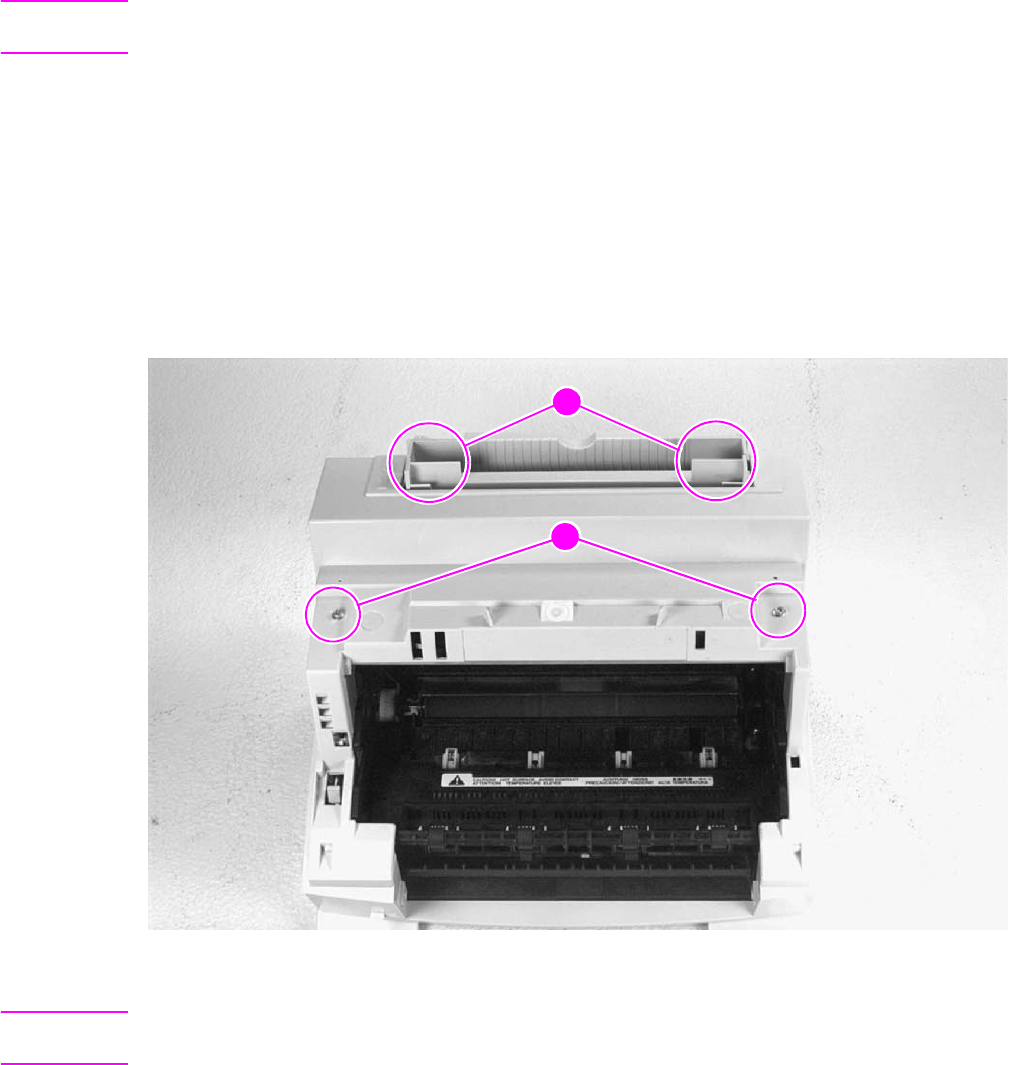

Figure 6-6 Main Cover and Paper Input Assembly removal
Note When replacing the Paper Input Assembly, make certain that the mylar sheet is positioned between
the Input Feed Roller and Separation Pad and that the sheet is not folded or bent.
