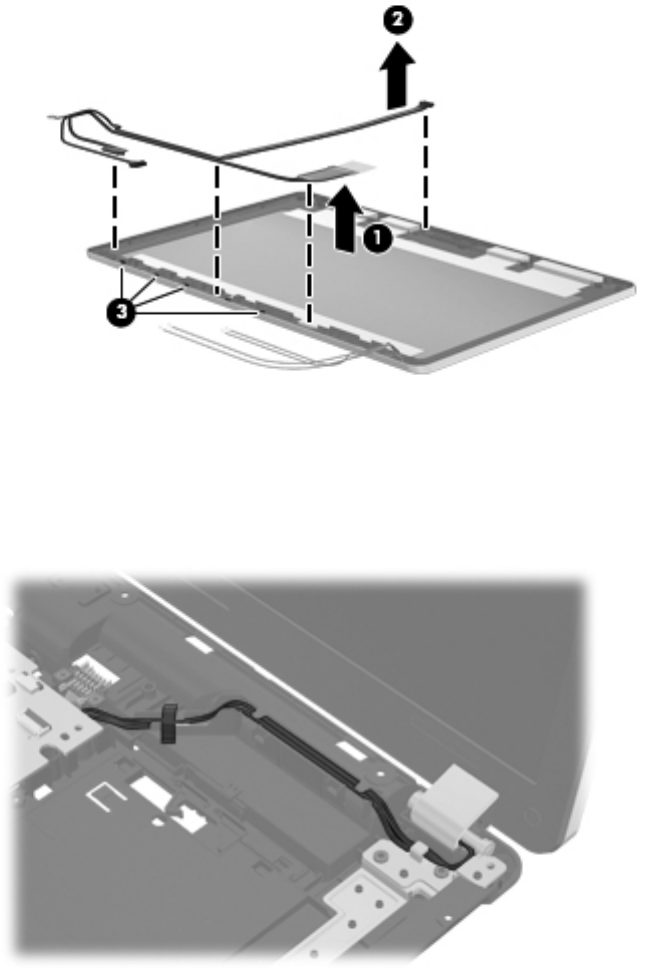

To remove the display cable (1) or webcam cable (2) from the display enclosure, remove the
cable from the clips (3) and routing paths in the display enclosure.
The display cable is available using spare part number 605766-001 for models without a
webcam, 646273-001 for 4530s HD+ models. The webcam cable is available using spare part
number 646275-001.
Reverse this procedure to reassemble and install the display assembly.
Note the correct cable routing paths for the antenna cables. Make sure you properly route all cables
when assembling the computer as shown in the following images.
Cable routing path – top
Cable routing path – bottom
