Logic Hotbox, Convector and IPF Fires
FRAME AND FRONT INFORMATION
Product
Code
Description Frame
Finish
Frame Size (mm)
whd
Complete Front Choice
8251GP Designio front Graphite 595 615 68
8251IR Designio front Iridium 595 615 68
8681MB Dimension front Matt Black 540 635 68
8255BS Evolution front for Logic Hotbox Stainless Steel 489 597 45
8257BS Evolution front for Logic Convector and IPF Stainless Steel 489 597 45
8249BS Infiniti front Stainless Steel 620 710 75
8253IR Progress front Iridium 520 598 60
8678 Richmond front for Logic Convector and IPF Black Cast Iron 540 635 50
8698MB Winchester Matt Black 508 619 55
Fire Front Choice
8288MB Arts fire front for Logic Hotbox and Logic Convector Matt Black 390 230
8284PBR Arts fire front for Logic Hotbox and Logic Convector Polished Brass 390 230
8288P Arts fire front for Logic Hotbox and Logic Convector Polished Chrome 390 230
8288HP Arts fire front for Logic Hotbox and Logic Convector Highlight Polished 390 230
8282MB Arts fire front for Logic IPF Matt Black 390 230
8282PBR Arts fire front for Logic IPF Polished Brass 390 230
8282P Arts fire front for Logic IPF Polished Chrome 390 230
8282HP Arts fire front for Logic IPF Highlight Polished 390 230
8391 Holyrood fire front Matt Black with Brass finials 385 265
8397 Holyrood fire front Polished Brass with black columns 385 265
8150 Holyrood fire front Highlight Polished 385 210
8397P Holyrood fire front Polished Chrome 385 210
8382 Spanish fire front Matt Black 385 210
8388 Spanish fire front Polished Brass 385 210
8153 Spanish fire front Highlight Polished 385 210
8388P Spanish fire front Polished Chrome 385 210
OPTIONS AND
ACCESSORIES
Product
Code
Description
8455 Standard remote control kit
for Logic Hotbox and Logic
Convector
8315 Spacer kit (75mm) for
Logic Hotbox and Logic
Convector
LOGIC HOTBOX FIRE INFORMATION
Product
Code
Description
Flue
Type
Gas
Type
Fuel
Effect
Heat
Input
(kW)
Heat
Output
(kW)
Efficiency
Remote
Control
Opening Size (mm)
whd
8306MCUC Logic Hotbox Class 1 & 2 Nat. Gas Coals 6.70 3.20 48% Upgradable 410 560 250
P8306MCUC Logic Hotbox Class 1 & 2 LPG Coals 6.70 3.20 48% Upgradable 410 560 250
8306PBUC Logic Hotbox Class 1 & 2 Nat. Gas Pebbles 6.70 3.20 48% Upgradable 410 560 250
P8306PBUC Logic Hotbox Class 1 & 2 LPG Pebbles 6.70 3.20 48% Upgradable 410 560 250
LOGIC CONVECTOR FIRE INFORMATION
Product
Code
Description
Flue
Type
Gas
Type
Fuel
Effect
Heat
Input
(kW)
Heat
Output
(kW)
Efficiency
Remote
Control
Opening Size (mm)
whd
8308MCUC Logic Convector Class 1 & 2 Nat. Gas Coals 6.70 4.10 61% Upgradable 410 560 250
P8308MCUC Logic Convector Class 1 & 2 LPG Coals 6.70 4.10 61% Upgradable 410 560 250
8308PBUC Logic Convector Class 1 & 2 Nat. Gas Pebbles 6.70 4.10 61% Upgradable 410 560 250
P8308PBUC Logic Convector Class 1 & 2 LPG Pebbles 6.70 4.10 61% Upgradable 410 560 250
LOGIC INTEGRAL POWERED FLUE FIRE INFORMATION
Product
Code
Description
Flue
Type
Gas
Type
Fuel
Effect
Heat
Input
(kW)
Heat
Output
(kW)
Efficiency
Remote
Control
Opening Size (mm)
whd
8316MC Logic IPF Powered flue Nat. Gas Coals 6.70 4.20 62% Sequential 410 560
additional
info. on
next page
P8316MC Logic IPF Powered flue LPG Coals 6.70 4.20 62% Sequential 410 560
X
X
X
X
X
X
X
X
X
X
130
The above information is to assist you in your choice of a suitable Gazco fire. This is not intended to be all the information required to install your fire.
This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

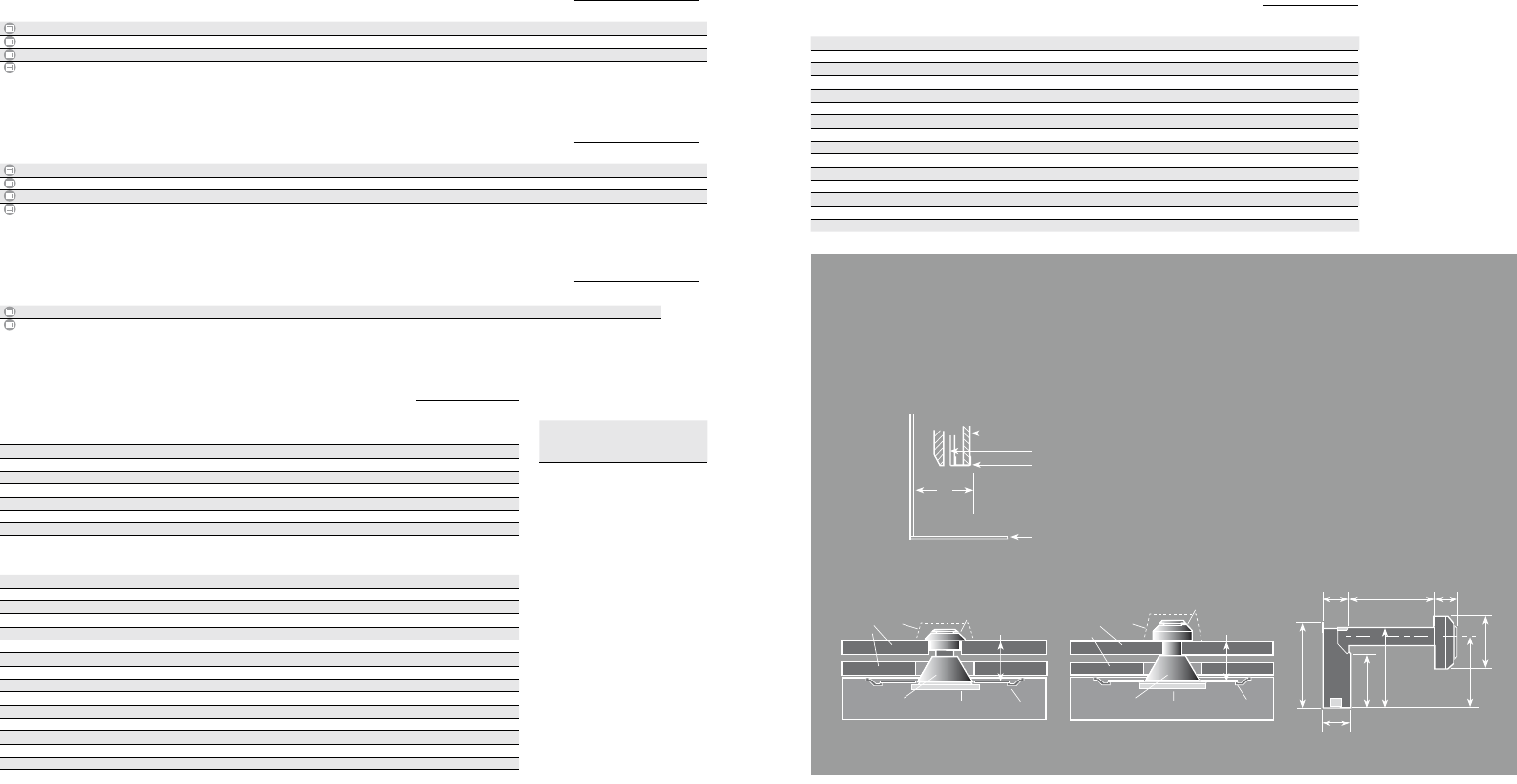

ADDITIONAL INFORMATION
Logic Hotbox, Convector and IPF Fires
If your chimney has a shallow ‘starter block’ then use spacer kit 8315
and a 3" (75mm) deep rebate surround to achieve the C1 dimension.
Pre cast flues with a deep 'starter block' may be installed in exactly the
same way as a conventional masonry opening providing there is a depth
of 8
1
/
2
" (215mm) at C1.
If you are fitting a Decorative or Profil frame with an Arts Front, an additional fitting kit will be provided to ease installation.
You can install a Logic Convector Fire with a Stovax Cast Iron Victorian, Art Nouveau or Combination Fireplace.
Conventional Logic Hotbox and Logic Convector fires require 5" minimum flue sizes.
Please consult your local Gazco and Stovax dealer for further information.
Installation of Logic Hotbox or Logic Convector into Pre Cast Flues (minimum 16,500mm
2
)
Installation of Logic Integral Powered Flue
FRAME AND FRONT INFORMATION cont'd.
Product
Code
Description Frame
Finish
Frame Size (mm)
wh
Marble or similar
Sealed gap
Spacer
$
Hearth
592
192
370
550
183 596 155
596
499
Fan unit recessed in outer wall.
Outer wall
Inner wall
Guard
External
fan unit
335mm min overall
855mm max overall
Convector unit
Front
75mm (3")
Rebated surround
Convector unit recessed in inner wall.
Front
40mm (1
3
/4")
Rebated surround
Convector unit
Outer wall
Inner wall
Guard
300mm min overall
780mm max overall
External
fan unit
Diagrammatic representation only. Not accurate for installation purposes.
Fire Frame Choice
8284MB Arts frame Matt Black 510 605
8284PBR Arts frame Polished Brass 510 605
8284P Arts frame Polished Stainless Steel 510 605
8284BS Arts frame Brushed Stainless Steel 510 605
8284BPBR Arts frame Polished Brass & Matt Black 510 605
8284BP Arts frame Polished Stainless Steel & Matt Black 510 605
8284BBS Arts frame Brushed Stainless Steel & Matt Black 510 605
8285 Decorative frame Matt Black 505 610
8266 Decorative frame Polished Brass 505 610
8232 Decorative frame Polished Stainless Steel 505 610
8235 Decorative frame Brushed Stainless Steel 505 610
8345 Profil (Standard) frame Matt Black 490 600
8340 Profil (Standard) frame Polished Brass 490 600
8342 Profil (Standard) frame Polished Stainless Steel 490 600
8229 Profil (Standard) frame Brushed Stainless Steel 490 600
131
The above information is to assist you in your choice of a suitable Gazco fire. This is not intended to be all the information required to install your fire.
This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com
