66 | Handling Paper and Other Media
Removing Paper from the Take-up Reel
1. Press l on the control panel to select .
2. Press and hold l for three seconds to cut the paper.
If the media is too thick to cut with the built-in cutter, cut it manually
following the instructions on page 60.

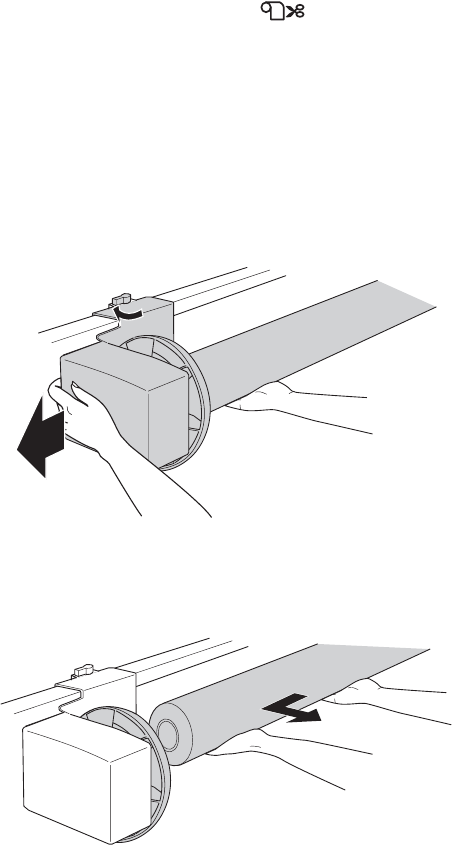

3. Support the take-up reel core with one hand to keep it from falling.
Then turn the lever to unlock the movable unit and slide it out to the
left.
4. Remove the printed media and core. If a large amount of paper has been
printed, two people may be required to lift the media and core.
5. To reinstall the core after you remove the printed media, see page 29.
WARNING: The printed
media and core may be
heavy and need to be
lifted by two people.
