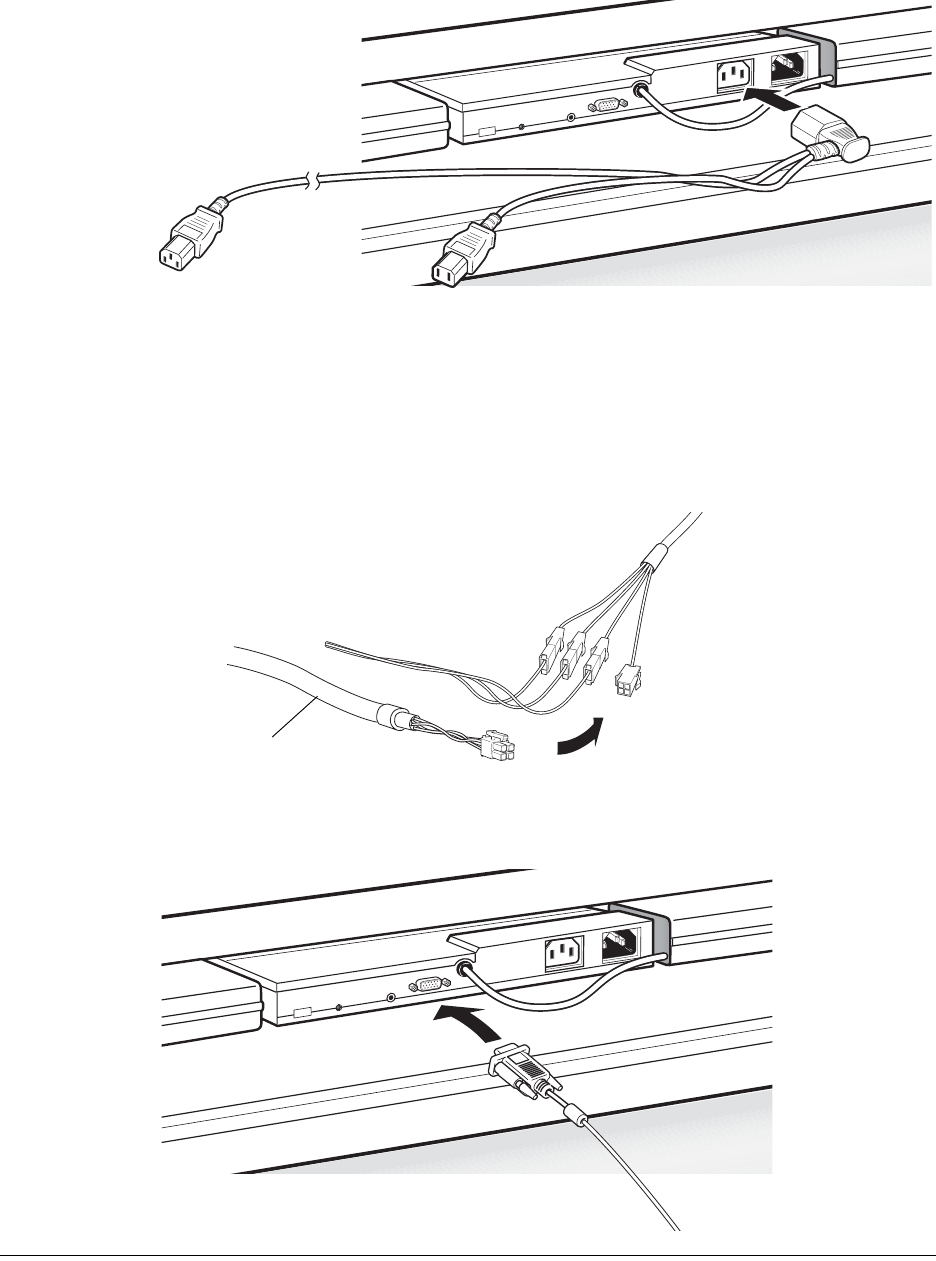

8 Connect AC CABLE 3 to the AC output connector, as shown below.
9 Locate the
7M KIT packed in box #3. The 23-foot (7-meter) cables included in this kit connect the
projector to the screen. The kit also includes a video cable connector (HDMI repeater) and its power
supply.
10 Connect power supply for the HDMI repeater to the power cable, as shown above.
11 Connect the 4-pin connector of the
Speaker Cable to the unconnected speaker cable inside the screen.
12 Connect the male end of the
Control Cable to the RS-232 port, as shown below. Tighten the
thumbscrews on the connector to secure it in place.
To projector
(do not connect yet)
To HDMI repeater
To projector
(do not connect yet)
Speaker cable
To projector
(Do not connect yet)
