Sawgrass Technologies, Inc. SubliJet IQ
®
Getting Started Guide for the EPSON Stylus D88
10

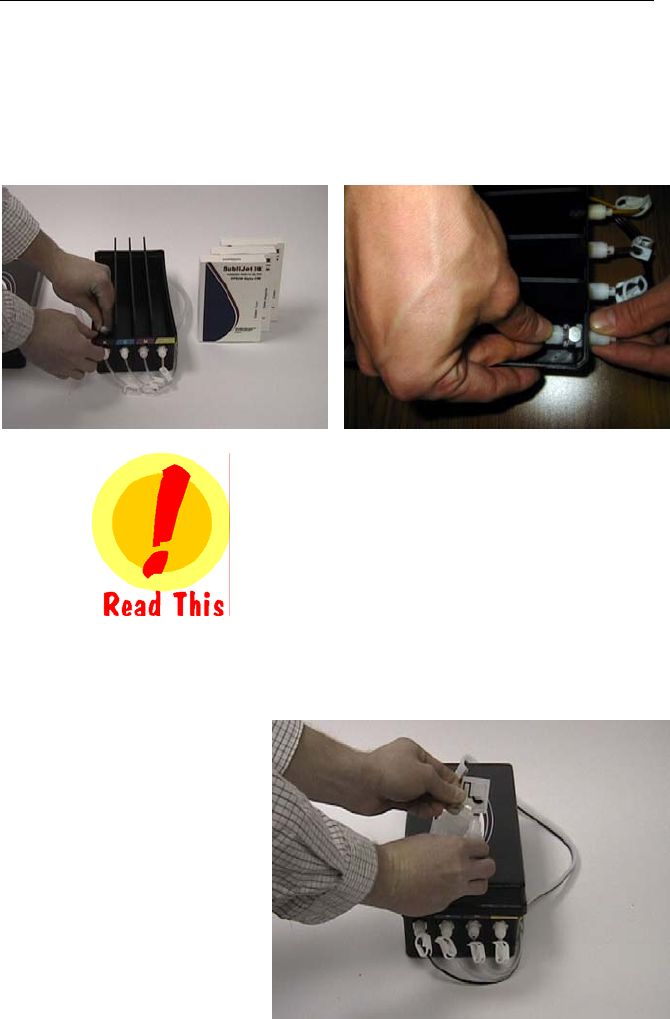

3. Remove the lid from the box and place it to the side.
4. Clamp the tubes at the end of each line before you clip on each bag to
prevent ink from entering them. Insert the ink bags into the ink box by
clipping them into the connectors inside each chamber. All chambers
are labeled with the corresponding color for each ink bag.
5. Once all ink bags are connected inside your Quick Connect II™ ink
box, you will need to obtain the small primer bottle to prime each line.
6. Take the cartridge in one
hand and the priming bottle
in the other. Squeeze the
priming bottle to release all
of the air and insert it into
the bottom of the cartridge
to pull ink through the line
until a small amount of it
reaches the reservoir.
Remember to match the
right color ink to its
corresponding cartridge
chamber. Once the tube is
filled, there is no way to
undo it!
