SmartCell ZX-250 User Guide 4-45
Switch Administration Performing Hardware Maintenance
T• Remove the spent fuse from holder (1). Push out the small storage drawer (2) behind the fuse holder,
remove the fresh fuse and place in holder.

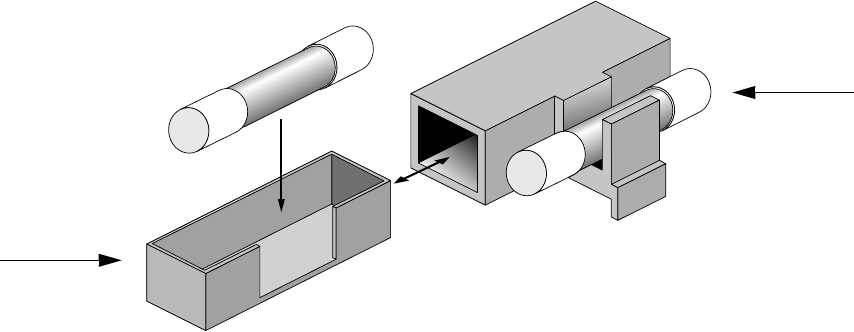

Figure 4-18 Detail of fuse assembly.
Q• Replace the fuse assembly by pushing it back into the power plug assembly.
(1)
(2)
