CONNECTING TO THE NETWORK
Page 4-3
4.1.2 Connecting Network Ports SEH-32 and SEH-34
The SEH-32 has a 50-pin Champ connector, while the SEH-34 has two
50-pin Champ connectors. This configuration of the SEH allows you to
run a 50-pin feeder cable from the SEH to a punch down block. Each
Champ connector supports 12 10BASE-T, twisted pair segments.
Note: Refer to Appendix A for information about wiring the SEH to a
punch down block.
To connect the SEH into an existing twisted pair wiring system:
1. Connect a 50-pin feeder cable to the Champ connector on the SEH
as shown in Figure 4-2.

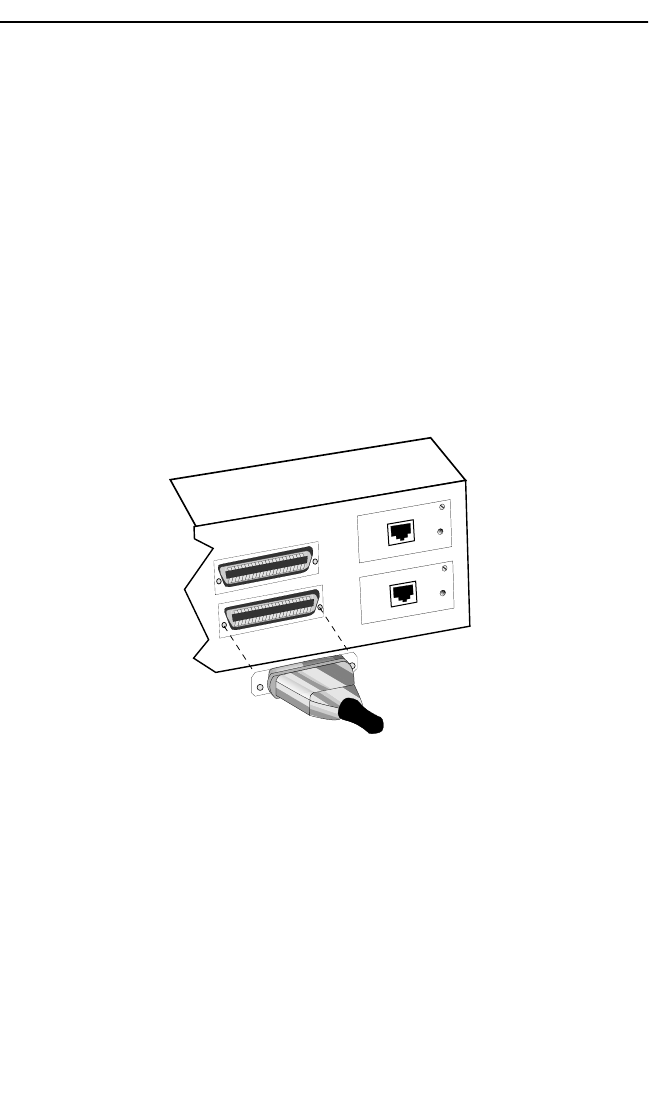

Figure 4-2. SEH-32/34 Network Ports
2. Attach the feeder cable to the punch down block, or patch panel.
In most cases, you can connect the feeder cable directly to a
Champ connector located on the punch down block. If not, you
must wire the feeder cable to the punch down block using the
punch down information in Appendix A.
3. At the device end of a segment, attach the segment to a 10BASE-T
compliant Ethernet device.
EPIM-1
EPIM-2
EPIM-T
LNK
EPIM-T
LNK
24X
13X
12X
1X
