The basic installation of this Smoke Alarm is similar whether you want to
i
nstall one Smoke Alarm, or interconnect more than one Smoke Alarm.
I
f you are interconnecting more than one Smoke Alarm, you MUST read
“Special Requirements For Interconnected Smoke Alarms” below before
y
ou begin installation.
E
LECTRICAL SHOCK HAZARD. Turn off power to the area where you
will install this unit at the circuit breaker or fuse box before beginning
i
nstallation. Failure to turn off the power before installation may result
i
n serious electrical shock, injury or death.
1. Remove the mounting bracket from the base, and attach it to the
j
unction box.
Activate the battery back-up by removing the “Pull to Activate Battery
B
ack-Up” tab. Or, install battery back-up. Battery back-up cannot work
u
ntil you install the battery in the correct position (Match “+” to “+” and
“-” to “-”).
P
ush and hold test button until the alarm sounds: 3 beeps, pause, 3
beeps, pause. The Escape Light
®
will turn on. LED flashes once every
s
econd.
2
. Using wire nuts, connect the power connector to the household wiring.
3. Plug the power connector into the back of the Smoke Alarm.
4.
Position the base of the Smoke Alarm over the mounting bracket and
turn. The Alarm can be positioned over the bracket every 90°. Turn the
Smoke Alarm clockwise (right) until the unit is in place.
5. Check all connections.
Improper wiring of the power connector or the wiring leading to the
power connector will cause damage to the Alarm and may lead to a
non-functioning Alarm.
ELECTRICAL SHOCK HAZARD. Do not restore power until all Smoke
Alarms are completely installed. Restoring power before installation is
complete may r
esult in serious electrical shock, injur
y or death.
6.
Make sur
e the Smoke Alarm is receiving AC power. Under normal
operation, the Green power indicator light will shine continuously.
7.
If the Gr
een power indicator light does not light,
TURN OFF POWER TO
THE JUNCTION BOX
and recheck all connections. If all connections are
correct and the Green power indicator still does not light when you
r
estor
e the power
, the unit should be r
eplaced immediately
.
8. Test each Smoke Alarm. Press and hold the Test/Silence button until the
unit alarms.
When testing a series of inter
connected units you must
test each unit individually. Make sure all units alarm when each one
is tested.
If any unit in the series does not alarm, TURN OFF POWER and recheck
connections. If it does not alarm when you r
estor
e power, replace it
immediately.
Special Requirements For Interconnected Smoke Alarms
• Failure to meet any of the above requirements could damage the
u
nits and cause them to malfunction, removing your protection.
•
AC and AC/DC Smoke Alarms can be interconnected. Under AC
power, all units will alarm when one senses smoke. When power is
i
nterrupted, only the AC/DC units in the series will continue to send
a
nd receive signals. AC powered Smoke Alarms will not operate.
I
nterconnected units can provide earlier warning of fire than stand-alone units,
especially if a fire starts in a remote area of the dwelling. If any unit in the series
s
enses smoke, all units will alarm. To determine which Smoke Alarm initiated an
alarm, see table:
On Initiating Alarms Red LED flashes rapidly
O
n All Other Alarms Red LED is Off
Interconnect units within a single family residence only. Otherwise all
h
ouseholds will experience unwanted alarms when you test any unit in the
series. Interconnected units will only work if they are wired to compatible
units and all requirements are met. This unit is designed to be compatible
w
ith:
F
irst Alert
®
S
moke Alarm Model SA9120B and
B
RK Electronics
®
Smoke Alarm Models 100S, 9120, 9120B, 7010, 7010B; BRK Electronics
®
Heat Alarm Models HD6135F, HD6135FB; Smoke/CO Alarm Model
S
C9120B; Relay Module RM4.
Interconnected units must meet ALL of the following requirements:
• A maximum of 18 compatible units may be interconnected
(Maximum of 12 Smoke Alarms).
•
The same fuse or circuit breaker must power all interconnected units.
•
The total length of wire interconnecting the units should be less than
1000 feet (300 meters). This type of wire is commonly available at
H
ardware and Electrical Supply stores.
•
All wiring must conform to all local electrical codes and NFPA 70 (NEC).
Refer to NFPA 72, NFPA 101, and/or your local building code for further
connection requirements.
FOLLOW THESE INSTALLATION STEPS
STAND-ALONE ALARM ONLY:
• Connect the white wire on the power connector to the neutral wire in
t
he junction box.
•
Connect the black wire on the power connector to the hot wire in the
junction box.
• Tuck the orange wire inside the junction box. It is used for interconnect
o
nly.
INTERCONNECTED UNITS ONLY:
Strip off
about 1/2” (12 mm) of the plastic coating on the orange wire
on the power connector.
• C
onnect the white wire on the power connector to the neutral wire in
t
he junction box.
• Connect the black wire on the power connector to the hot wire in the
junction box.
•
Connect the orange wire on the power connector to the interconnect
wire in the junction box. Repeat for each unit you are interconnecting.
Never connect the hot or neutral wires in the junction box to the orange
interconnect wire. Never cross hot and neutral wires between Alarms.
ST
AND-ALONE ALARM ONL
Y:
• If you are only installing one Smoke Alarm, restore power to the
junction box.
INTERCONNECTED UNITS ONLY:
•
If you ar
e inter
connecting multiple Smoke Alarms, repeat steps
1-5 for each Smoke Alarm in the series. When you are finished,
r
estore power to the junction box.

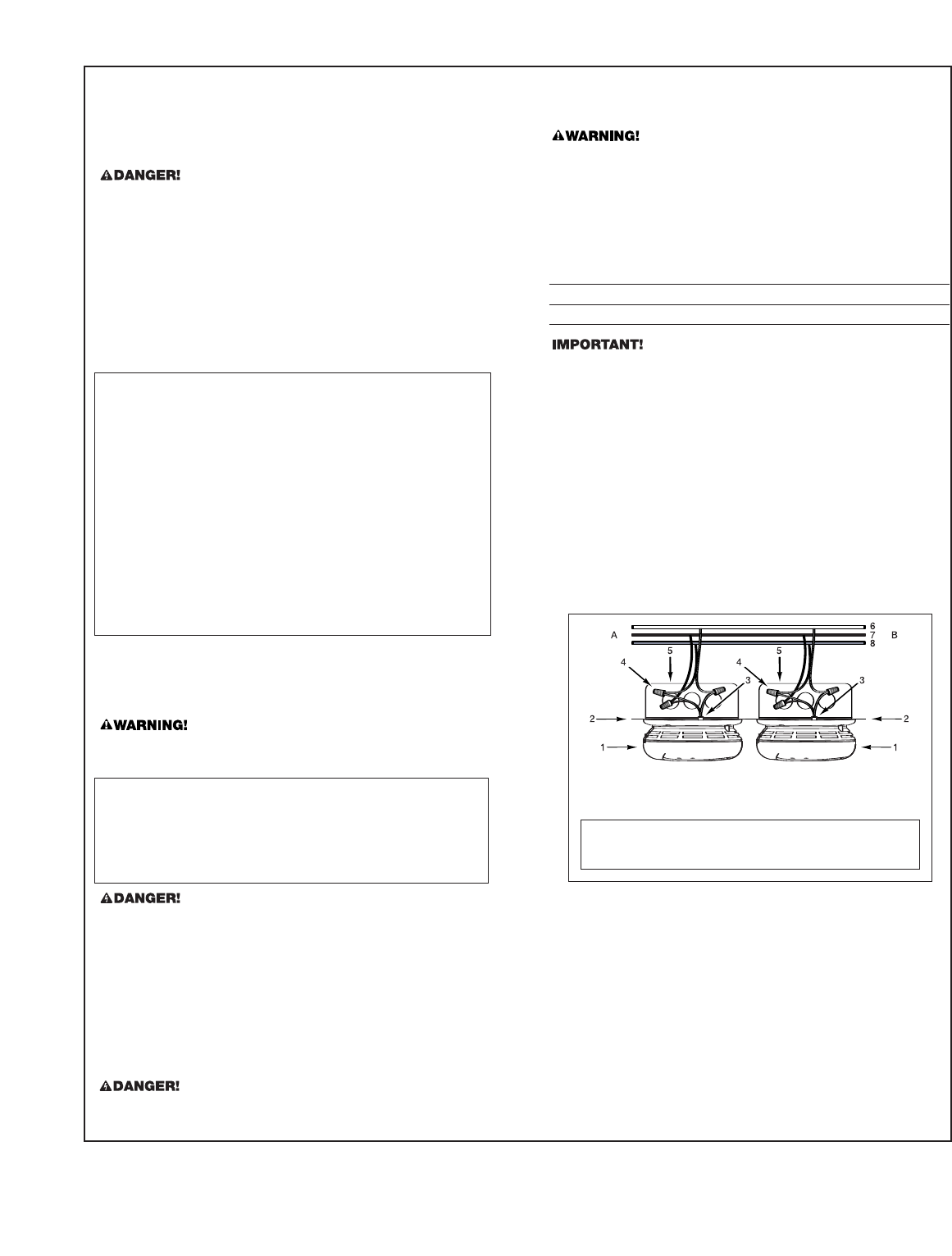

A. Unswitched 120VAC
60 Hz source
B. To additional units; Maximum = 18 total
(Maximum 12 Smoke Alarms)
1. Smoke Alarm
2. Ceiling or Wall
3. Power Connector
4. Wire Nut
5. Junction Box
6. Neutral Wire (Wht)
7. Interconnect Wire
(Orange)
8.
Hot Wir
e (Blk)
3
