ASUS M2R-FVM 1-29

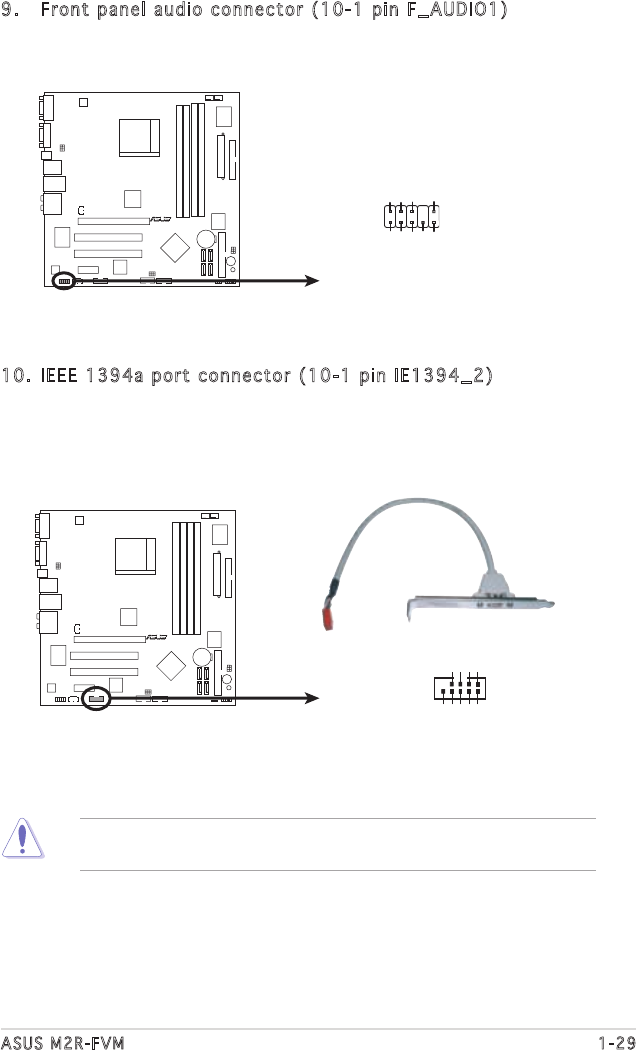

9. Front panel audio connector (10-1 pin F_AUDIO1)
This connector is for a chassis-mounted front panel audio I/O module.
R
M2R-FVM
M2R-FVM
Azalia Analog Front Panel Connector
HP_HD
MIC2_L
HP_R
HP_L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE#
AGND
F_AUDIO1
10. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a
module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
Never connect a USB cable to the IEEE 1394a connector. Doing so will
damage the motherboard!
R
M2R-FVM
M2R-FVM
IEEE 1394a Connector
IE1394_2
1
GND
+12V
TPB1-
GND
TPA1-
+12V
TPB1+
GND
TPA1+
