271846-YTG-B-0208
Johnson Controls Unitary Products
15

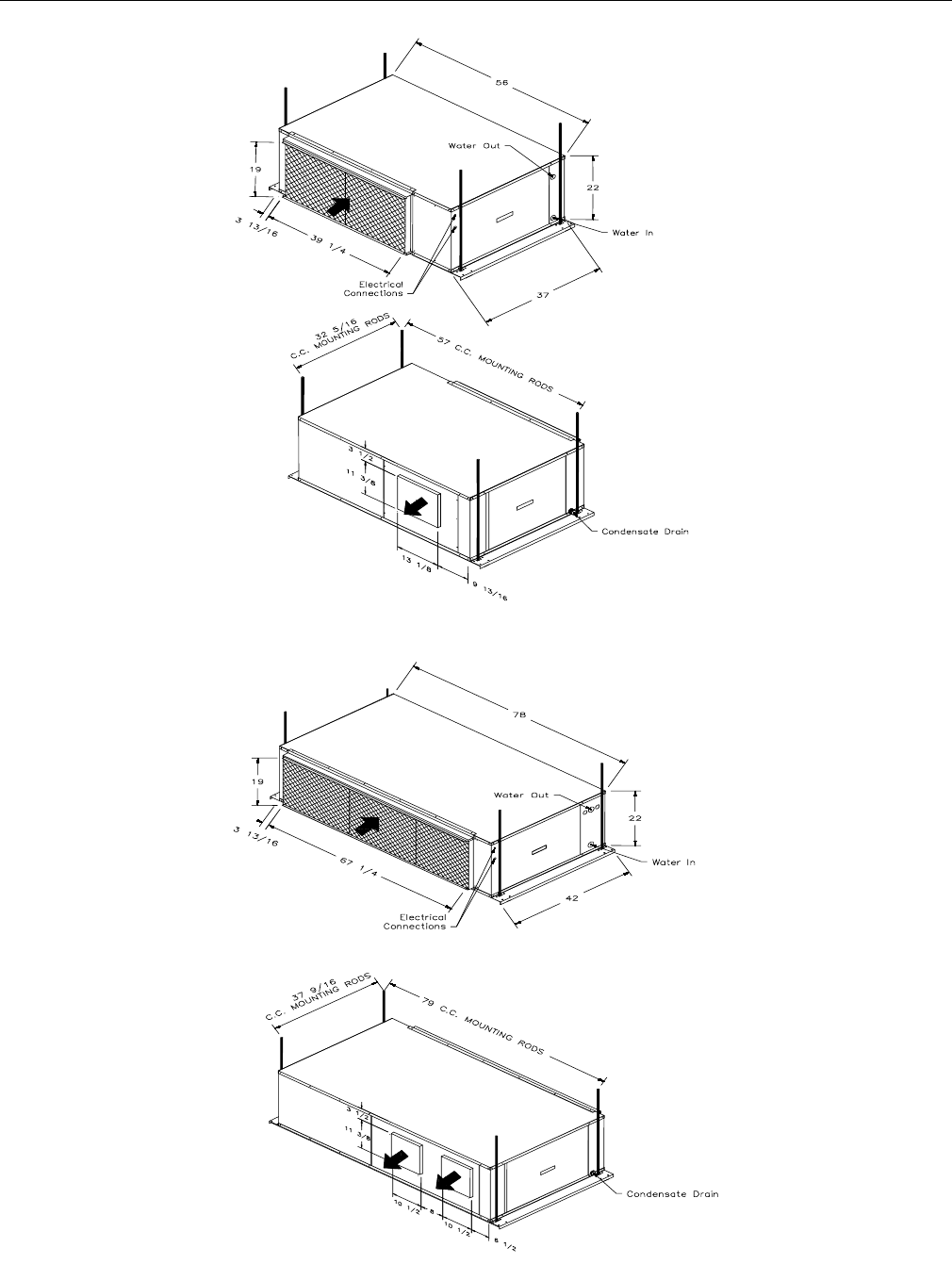

TABLE 14: OVERSIZED MOTORS CU 5-25 TON MODELS
TABLE 15: STANDARD MOTORS CH 5-10 TON MODELS
TABLE 16: OVERSIZED MOTORS CH 8-10 TON MODELS
MODEL# VOLTAGE
COMPRESSOR EVAPORATOR FAN
MIN. CCT.
AMPACITY
MAX FUSE /
CCT. BKR. AMP
QTY RLA LRA HP FLA RPM
CU060
208-230/3/60 1 @ 19.3 123.0 1.50 4.5 1800 28.63 45
460/3/60 1 @ 7.5 49.5 1.50 2.2 1800 11.58 15
575/3/60 1 @ 6.4 40.0 1.50 1.8 1800 9.80 15
CU096
208-230/3/60 2 @ 13.9 88.0 2.00 6.0 1800 37.28 50
460/3/60 2 @ 7.1 44.0 2.00 3.0 1800 18.98 25
575/3/60 2 @ 5.4 34.0 2.00 2.4 1800 14.55 15
CU120
208-230/3/60 2 @ 19.3 123.0 3.00 8.4 1800 51.83 70
460/3/60 2 @ 7.5 49.5 3.00 4.2 1800 21.08 25
575/3/60 2 @ 6.4 40.0 3.00 3.4 1800 17.80 20
CU180
208-230/3/60 2 @ 25.0 164.0 5.00 14.0 1800 70.25 90
460/3/60 2 @ 12.0 100.0 5.00 6.6 1800 33.60 45
575/3/60 2 @ 9.7 90.0 5.00 57 1800 27.53 35
CU240
208-230/3/60 2 @ 33.6 225.0 7.50 22.2 1800 97.80 125
460/3/60 2 @ 17.3 114.0 7.50 10.8 1800 49.73 60
575/3/60 2 @ 13.5 80.0 7.50 8.4 1800 38.78 50
CU300
208-230/3/60 3 @ 32.1 195.0 10.00 25.6 3600 129.93 150
460/3/60 3 @ 16.4 95.0 10.00 11.6 3600 64.90 80
575/3/60 3 @ 12.0 80.0 10.00 9.1 3600 48.10 60
MODEL# VOLTAGE
COMPRESSOR EVAPORATOR FAN
MIN. CCT.
AMPACITY
MAX FUSE /
CCT. BKR. AMP
QTY RLA LRA HP FLA RPM
CH060
208-230/3/60 1 @ 19.3 123.0 1.00 3.7 1800 27.83 45
460/3/60 1 @ 7.5 49.5 1.00 1.7 1800 11.08 15
575/3/60 1 @ 6.4 40.0 1.00 1.3 1800 9.30 15
CH096
208-230/3/60 2 @ 13.9 88.0 1.50 4.5 1800 35.78 45
460/3/60 2 @ 7.1 44.0 1.50 2.1 1800 18.08 25
575/3/60 2 @ 5.4 34.0 1.50 1.7 1800 13.85 15
CH120
208-230/3/60 2 @ 19.3 123.0 2.00 6.0 1800 49.43 60
460/3/60 2 @ 7.5 49.5 2.00 2.8 1800 19.68 25
575/3/60 2 @ 6.4 40.0 2.00 2.2 1800 16.60 20
MODEL# VOLTAGE
COMPRESSOR EVAPORATOR FAN
MIN. CCT.
AMPACITY
MAX FUSE /
CCT. BKR. AMP
QTY RLA LRA HP FLA RPM
CH096
208-230/3/60 2 @ 13.9 88.0 2.00 6.0 1800 37.28 50
460/3/60 2 @ 7.1 44.0 2.00 2.8 1800 18.78 25
575/3/60 2 @ 5.4 34.0 2.00 2.2 1800 14.35 15
CH120
208-230/3/60 2 @ 19.3 123.0 3.00 8.2 1800 51.63 70
460/3/60 2 @ 7.5 49.5 3.00 4.0 1800 20.88 25
575/3/60 2 @ 6.4 40.0 3.00 3.2 1800 17.60 20
