Removing Glass Enclosure Panel
(see Figure 11)
1. Remove top louver assembly by pulling it
up and out.
2. Remove the control compartment access
door (see removal instructions on Page 4
- Removing Control Compartment Door).
3. Locate the two (2) latches at the top of the
control compartment. To disengage the two
latches from the bottom vee-flange of the
glass enclosure panel, reach for the handles
located towards the back of the latches and
pull the handles down toward the front of
the appliance.
4. Swing the bottom of the door out and raise
it slightly to lift the top flange of the door
frame away from the appliance.
Installing Glass Enclosure Panel
(see Figure 11 )
1. Visually inspect the gasket on the backside
of the glass panel. The gasket surface must
be clean, free of irregularities and seated
firmly.
2. Position the glass enclosure panel in front of
the firebox opening at a 45 degree angle and
engage the top flange over the lip at the top
of the firebox opening. See Figure 11.
3. Swing the glass enclosure panel down and
back. Ensure the gasket seats evenly as the
panel draws shut. Engage the Vee-flange at
the bottom of the panel with the latches and
close the latches to secure the panel.
4. Reinstall the control compartment door see
installation instructions on Page 4 , Reinstall-
ing Control Compartment Door).
WARNING
The size and position of the log
set was engineered to give the
appliance a safe, reliable and
attractive flame pattern. Any
attempt to use a different log
set in the fireplace will void
the warranty and will result in
incomplete combustion, soot-
ing, and poor flame quality.
REFERENCE
Firebox Accessories / Parts
Cat. No. Model No. Description
88L53
FGE Bag of Glowing Embers
(1 oz. rockwool)
80L42
FDVS
Bag of Decorative
Volcanic Stone
Table 8
Glowing Embers
Bag of Glowing
Embers (rockwool)
Separate into Quarter
Size (separate) Pieces
INSTALL VOLCANIC STONE, GLOWING
EMBERS AND LOGS
1. Remove the front glass enclosure panel
(see
Removing Glass Enclosure Panel on
this page).
2. Carefully remove the log set, embers and
volcanic stone from the firebox.
Handle
logs carefully to prevent breakage.
3. Install decorative volcanic stone - Mound up
a portion of the volcanic stone in front of the
burner in a pleasing pattern.
4. Placement of Glowing Embers -
Separate the Embers (rockwool) into pieces
about the size of a quarter (see Figure 12).
Keep the pieces fluffed up, not matted.
Distribute these pieces over the surface of
the burner, as shown in
Figures13 or 14.
Do not use more than is necessary. Ensure
that the main burner ports remain uncovered
by the ember material.
Note: This appliance is provided with enough
Glowing Embers for several applications, do
not use all that is in a new bag at one time. For
best glowing effect, replace the ember material
annually.
5. Placement of Logs -
The logs have locating notches or slots to
help ensure that they are properly positioned.
Proper log placement is critical to prevent
sooting.
WARNING
DO NOT attempt to install the logs
until the appliance installation
has been completed, the gas line
connected and tested for leaks
and the initial burner operation
has been checked out.

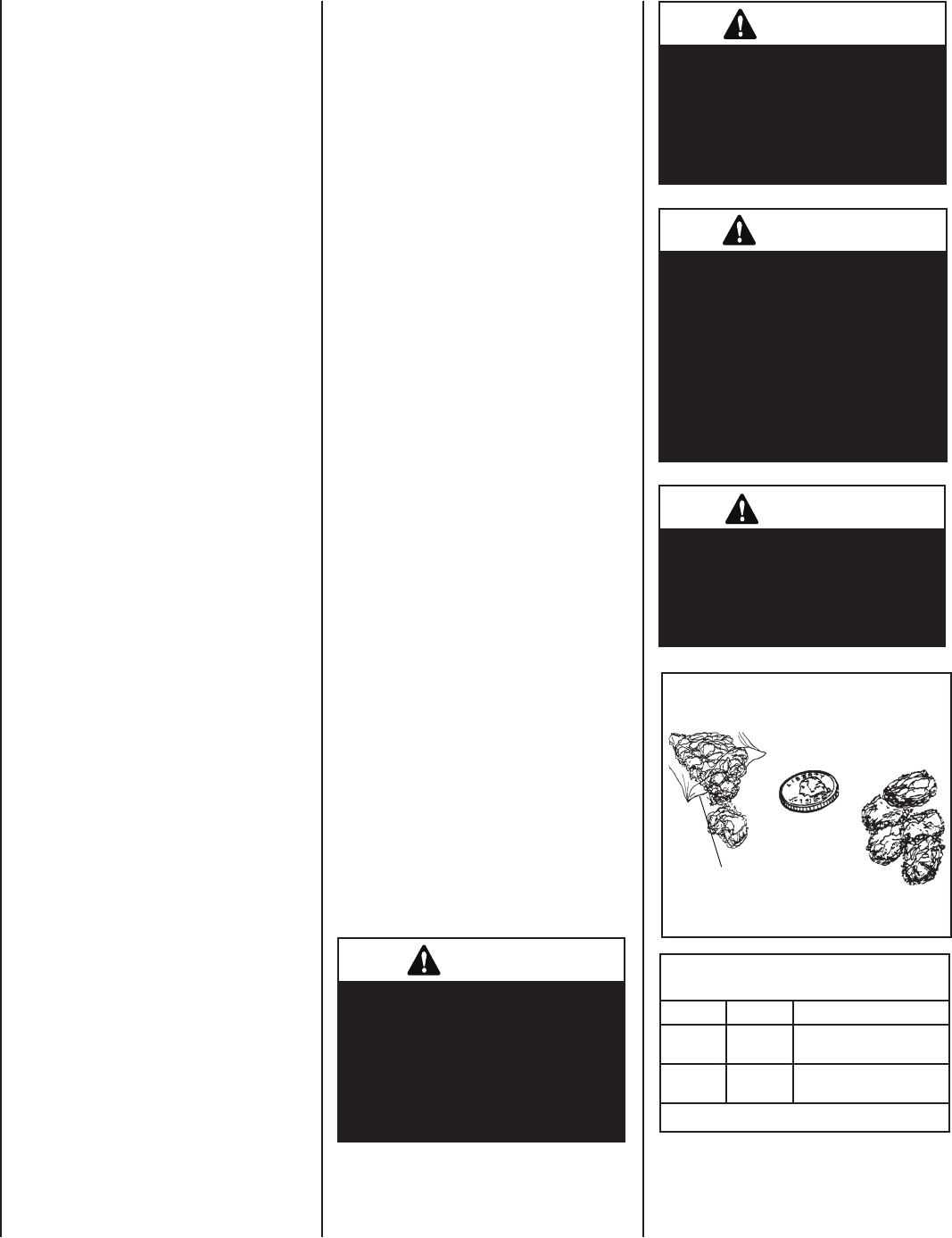

Figure 12
WARNING
This appliance is not designed
to burn wood. Any attempt to
do so could cause irreparable
damage to appliance and prove
hazardous to your safety.
WARNING
If logs are not installed according
to the log installation instructions,
flame impingement and improper
combustion could occur and result
in soot and/or excessive produc-
tion of carbon monoxide (CO), a
colorless, odorless, toxic gas.
SSBV-3530 - Install as Follows
Carefully position the ceramic fiber logs into the
firebox as shown in
Figure 13. Logs should be
placed in the order shown and per the following
instructions.
1. Place embers on the front burner tube and
volcanic stone in front of the burner as
shown and per instructions on this Page
(see Placement of Glowing Embers & Install
Decorative Volcanic Stone on this Page).
2. Place the rear log (A) as shown. Position the
2 notches on the bottom of log (A) over the 2
corresponding locating brackets as shown.
3. Place the center log (C) as shown. The 2
notches on the bottom of log (C) fit over
the corresponding locating brackets.
4. Place the left log (B) as shown. The top fork
on log (B) fits into the notch on log (A). The
bottom of log (B) rests on the subfloor.
5. Place the top right log (D) as shown. The top
fork on log (D) fits into notch on log (A) as
shown. The bottom fork on log (D) rests on
subfloor flange (identified in photo #1)
.
SSBV-4035 - Install as Follows
Carefully position the ceramic fiber logs into the
firebox as shown in
Figure 14. Logs should be
placed in the order shown and per the following
instructions.
1. Place embers on the front burner tube and
volcanic stone in front of the burner as
shown and per instructions on this Page
(see Placement of Glowing Embers & Install
Decorative Volcanic Stone on this page).
2. Place the rear log (A) as shown. Position the
2 notches on the bottom of the log over the 2
corresponding locating brackets as shown.
3. Place the center log (C) as shown. The 2
notches on the bottom of the log should fit
over the corresponding locating brackets.
4. Place the top right log (D) as shown. The top
fork on log (D) fits into notch on log (A) as
shown. The bottom fork on log (D) rests on
subfloor flange (identified in photo #1).
5. Place the top left log (B) as shown. The top
fork on log (B) fits into notch on log (A). The
bottom of the log rests on the subfloor.
