NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

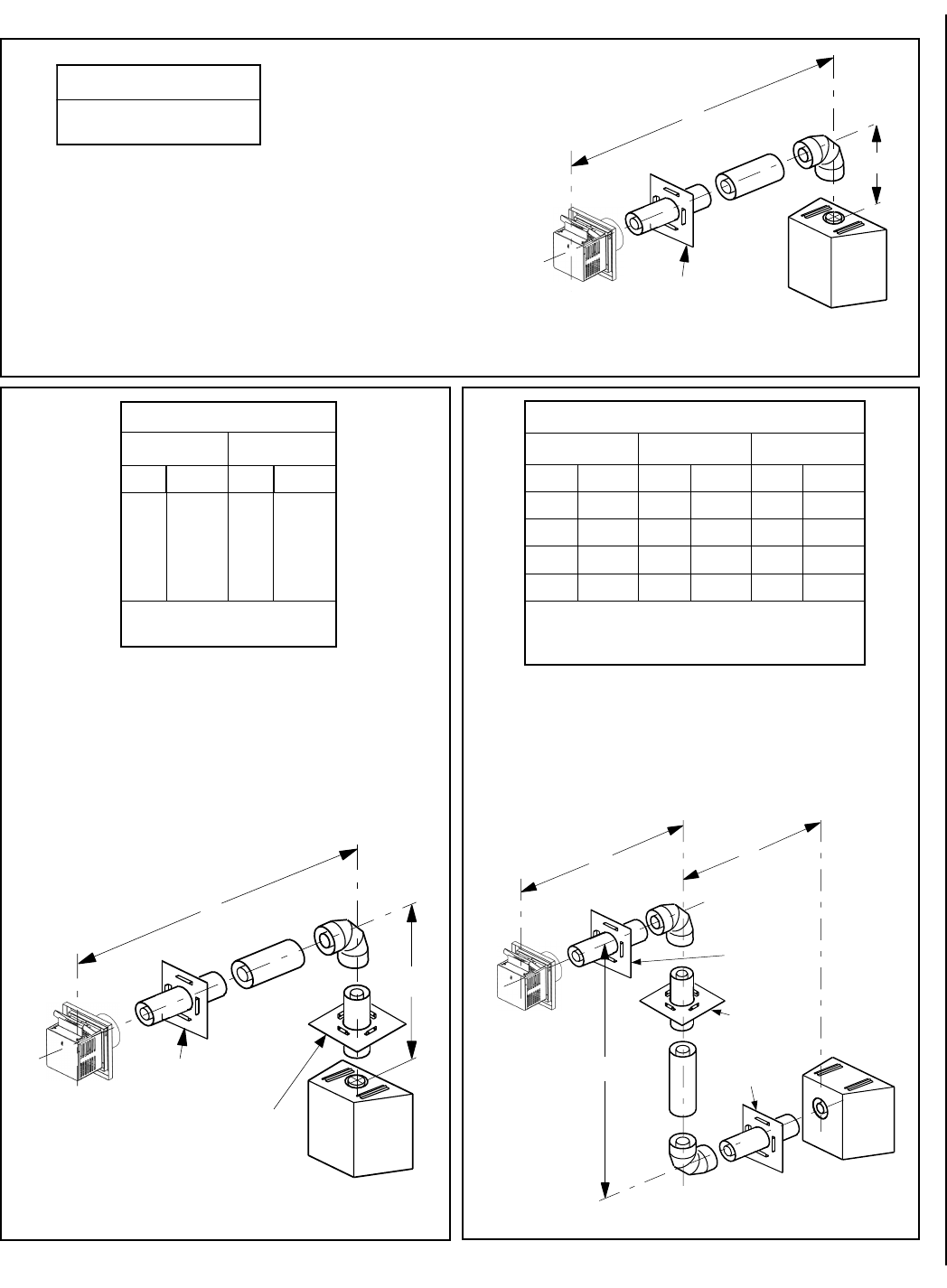

Figure 37
-
Top Vent - ONE 90 DEGREE ELBOW -
ELBOW CONNECTION NOT DIRECTLY AT APPLIANCE
Figure 38
-
Rear Vent - TWO 90 DEGREE ELBOWS
Figure 36
-
Top Vent - ONE 90 DEGREE ELBOW - ELBOW CONNECTION AT APPLIANCE
Refer to
Table 3 on page 16
for an aid in venting component selection for a
particular range of exterior wall thicknesses when using the square (SV4.5HTS),
small square (SV4.5HTSS) or the round (SV4.5HTR) termination .
Refer to
Table 3 on page 16
for an aid in venting component selection
for a particular range of exterior wall thicknesses when using the
square (SV4.5HTS), small square (SV4.5HTSS) or the round
(SV4.5HTR) termination .
Refer to
Table 3 on page 16
for an aid in venting component selection for a
particular range of exterior wall thicknesses when using the square (SV4.5HTS),
small square (SV4.5HTSS) or the round (SV4.5HTR) termination .
HORIZONTAL VENT FIGURES/TABLES (CONTINUED)
Short Square Termination (SV4.5HTSS) shown;
Long Square Termination (SV4.5HTSSL) may also be used;
Square Termination (SV4.5HTS) may also be used
Round Termination (SV4.5HTR) may also be used.
Short Square Termination (SV4.5HTSS) shown;
Long Square Termination (SV4.5HTSSL) may also be used;
Square Termination (SV4.5HTS) may also be used
Round Termination (SV4.5HTR) may also be used.
Short Square Termination (SV4.5HTSS) shown;
Long Square Termination (SV4.5HTSSL) may also be used;
Square Termination (SV4.5HTS) may also be used
Round Termination (SV4.5HTR) may also be used.
ELBATF
wobleeerged09en0=V
.xaM)m419.0(teef3=H
ELBATG
muminiMVmumixaMH
teef)m(teef)m(
1)503.0(5)25.1(
2)16.0(01)1.3(
3)419.0(51)56.4(
4)22.1(02)2.6(
.xaM)m4.21(teef04=H+V
.xaM)m2.6(teef02=H
HELBAT
muminiMVmumixaMHH+H
1
mumixaM
teef)m(teef)m(teef)m(
1)503.0(2)016.0(5)25.1(
2)016.0(4)22.1(01)1.3(
3)419.0(6)68.1(51)56.4(
4)22.1(8)84.2(02)2.6(
H+H+V
1
.xaM)m4.21(teef04=
.xaM)m84.2(teef8=H
H+H
1
.xaM)m2.6(teef02=
H
*Wall Firestop/Spacer
(SV4.5HF)
V
*When using Secure Flex, use Wall Firestop/Spacer SV4.5HF.
H
V
*Wall Firestop/Spacer
(SV4.5HF)
**Ceiling Firestop/Spacer
(SV4.5BF)
*When using Secure Flex,
use Wall Firestop/Spacer
SF4.5HF.
**When using Secure Flex, use Ceiling
Firestop/Spacer SF4.5BF.
H
1
V
H
*Wall
Firestop/Spacer
(SV4.5HF)
**Ceiling
Firestop/Spacer
(SV4.5BF)
*Wall
Firestop/Spacer
(SV4.5HF)
*When using Secure
Flex, use Wall
Firestop/Spacer
SF4.5HF.
**When using Secure
Flex, use Ceiling
Firestop/Spacer
SF4.5BF.
