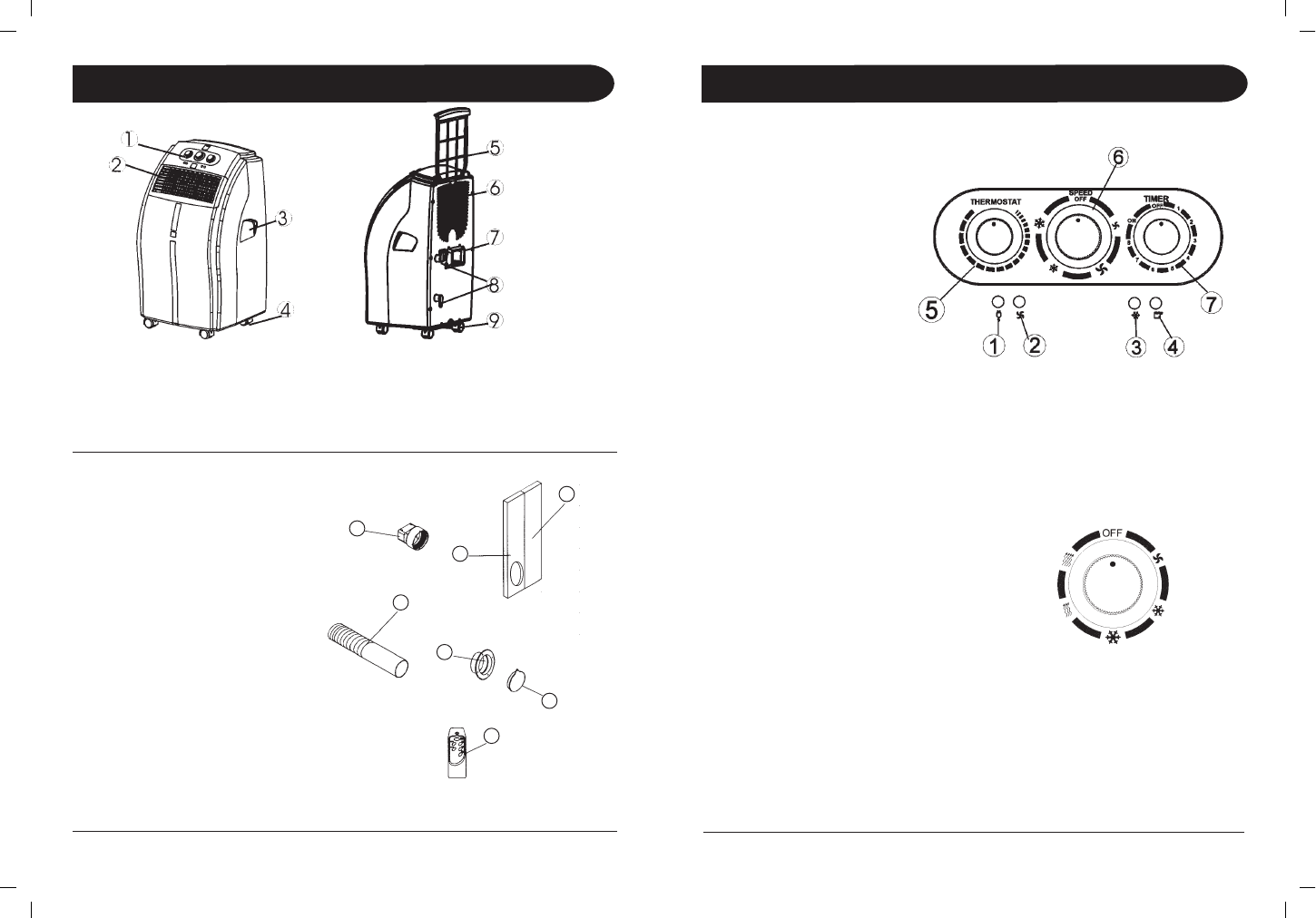

Parts
4
1. Control Panel
2. Cooling Air Outlet
3. Handle
4. Castors
5. Air Filter
6. Air Inlet
7. Exhaust Air Outlet
8. Cord Hanger
9. Water Stopper (Rubber Plug Inside)
10
11
12
13
14
15
16
Accessories
10. Adaptor - for insertion over the
hose and into the back of the
air conditioner.
11. Exhaust Hose
12. Foam Strip - for filling the open
window space and with a hole for
connection to the exhaust hose.
13. Foam Strip - for filling the open
window space.
14. Round Connector - to be used
between hose and window kit or
between hose and wall.
15. Cap for Round Connector
16. Remote Control
(Electronic control models only)
Operation - Mechanical Models
9
1. Power indicator
2. Fan operating indicator
3. Cooling operating indicator
4. Full water indicator
5. Thermostat
6. Speed switch with options for:
LOW FAN, HIGH FAN, LOW COOL,
HIGH COOL
7. Timer (1-8 hours) as well as
ON/OFF switch
Turning ON/OFF
Set TIMER to ON for continuous operation (the unit will operate as long as it is not turned off).
Power indicator comes on.
To turn off the unit, turn the TIMER to the OFF position
Setting Function / Ventilation Speed
WA-1010M
Turn the speed switch to select the required setting:
LOW FAN, HIGH FAN, LOW COOL, HIGH COOL
SPEED OFF
Low Fan
High Fan
High Cool
Low Cool
SPEED
WA-1010M
