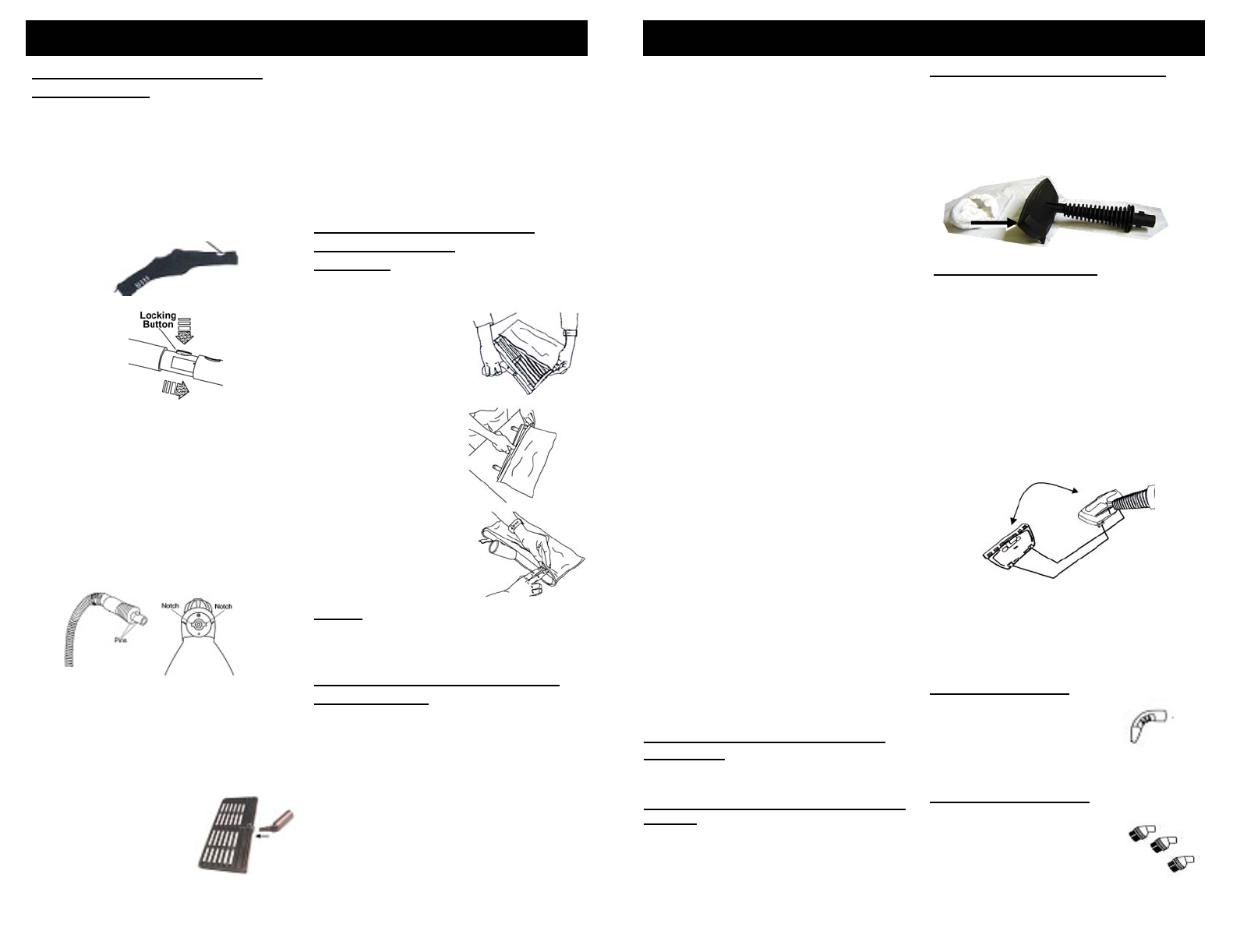

Shark S3200 Carpet Cleaner User Manual



Using Your Steam Cleaner with
Steam Pocket™
Step 1. Attach one or both of the
extension tubes to the hand grip
of the flexible hose. To attach the
extension tubes one onto the
other or onto the hand grip, press
the locking button ensuring that it
fits into the hole (Fig. 3., Fig. 4)
and press the two sections
together.
Attaching the Steam Pocket™
Towel to the Frame
1. Slide the Steam
Pocket™ towel over
the steam pocket
frame. (Fig. 7)
2. Bring the towel all
the way to the top
of the steam
pocket frame.
(Fig. 8)
3. Bring the velcro
strips that are on the
back side of the
steam pocket™ towel
over the steam pocket
frame and attach to
the inside of the
front side of the
Steam Pocket™ towel.
(Fig. 9)
NOTE: If replacing the Steam
Pocket™ towel, make sure that the frame
has been allowed to cool before removing
or attaching a new Steam Pocket™ towel.
1. Slide the Steam
Pocket™ towel over
the steam pocket
frame. (Fig. 7)
2. Bring the towel all
the way to the top
of the steam
pocket frame.
(Fig. 8)
3. Bring the velcro
strips that are on the
back side of the
steam pocket™ towel
over the steam pocket
frame and attach to
the inside of the
front side of the
Steam Pocket™ towel.
(Fig. 9)
NOTE: If replacing the Steam
Pocket™ towel, make sure that the frame
has been allowed to cool before removing
or attaching a new Steam Pocket™ towel.
WARNING: Always insure the unit is
UNPLUGGED” from the wall receptacle
prior to attaching or removing
accessories.
OPERATING INSTRUCTIONS
Fig. 4
6
Fig. 7
Fig. 6
Fig. 9
Note: The flat end on the angle
adapter must face toward the
side of the frame with the brass
pin. Once inserted, rotate it 90°
Step 4. Insert the electrical power cord
into the outlet. Heating time is
approximately 5 minutes
with cold water. Filling the
steam generator with hot water
will shorten the heat up time.
Fig. 6
Hand Grip
Locking Button
Fig. 3
Step 2. To attach the flexible hose to the
main unit, align the end of the
hose with the pins to the notches
in the nozzle of the unit. Push
the flexible hose into the nozzle
until it stops against the unit and
rotate 90˚ until it locks into
position. (Fig. 5) To remove
the flexible hose, push the
flexible hose in, rotate 90˚ in the
opposite direction and pull the
flexible hose out.
Fig. 5
Nylon Bristle Brush (x3)
It is best for cleaning grout in-between
the tiles, ceramic and marble.
To use: To attach the nylon
bristle brush to the concentrator
nozzle push on and turn to lock.
Squeegee Attachment
This attachment is very useful for cleaning
windows, ceramic, tiled or marble
surfaces.
IMPORTANT: When cleaning windows,
always avoid any sudden changes in
temperature to prevent glass breakage or
cracks.
To use: To attach the squeegee
attachment to the steam/garment diffuser,
place the two hinges at the back of the
squeegee attachment into the two open
tabs that are at the back of the
steam/garment diffuser. (Fig. 11)
Care & Maintenance of the Steam
Pocket™ Towel
To clean the towel, simply wash it in your
washing machine using the warm water
setting.
Always wash your towels separately
from other fabrics. They have a tendency
to pick up lint and other particles from
other fabrics and the next time you use
your towel, this lint will transfer to the
surface being cleaned.
ONLY USE LIQUID DETERGENTS,
never use dry detergents as many times
the granules do not fully dissolve and
become trapped in the towel. This can
scratch the surface that you are
cleaning.
NEVER USE BLEACH OR FABRIC
SOFTENERS! Bleach will damage the
micro-fiber fabric and fabric softeners
deposit a coating on the micro-fiber
fabric what will not allow the cloth to
clean efficiently.
Air dry the towel. Do not put in a clothes
dryer as high heat will cause the towel to
shrink and the micro-fibers to break
down.
If you wash your towel on a regular basis
and don’t let it get too dirty, it will last
much longer. As with any fabric, dirt
particles, grease and other contaminants
can cause the fibers to break down,
therefore regular cleaning will help
preserve your micro-fiber towel.
As you use the micro-fiber towel, you will
notice that sometimes a thread will
loosen or pull out. This is normal and
you should NEVER PULL AT THE
LOOSE THREAD! Pulling the thread can
cause the weave to come undone.
Instead, simply trim the thread with a
pair of sharp scissors.
CAUTION: Be aware of hand placement
and take care not to actuate the steam
discharge switch while installing or
removing accessories.
OPERATING INSTRUCTIONS
Attaching the Accessories to the
Steam Unit
Always allow the unit to cool for 15
minutes before changing accessories.
Concentrator Nozzle or Steam/Garment
Diffuser
To attach the concentrator nozzle or the
steam/garment diffuser to the unit, align
the two pins on the end of the concentrator
nozzle or the steam/garment diffuser with
the notches in the nozzle of the unit.
7
Angled Concentrator
Use the extended concentrator
to clean under toilet rims
and hard to reach places.
To use: To attach the angled
concentrator to the concentrator
nozzle push on and turn to lock.
Fig. 11
Step 3: Attach the steam pocket frame
with the angle adapter onto the
extension tube.
Note: If the angle adapter is not
attached to the steam pocket
frame, attach as follows: Hold
the steam pocket frame in one
hand and the
angle adapter in the
other. Insert the
angle adapter
into the opening
of the steam
pocket frame as shown in
Fig. 6.
Due to the unique cleaning ability of this
cloth, proper care of your micro-fiber towel
is required to ensure long life and continued
cleaning ability.
The first thing you should do when you
get a new micro-fiber towel is to wash and
dry it. During the manufacturing process
the fabric has a tendency to become flat
as it picks up contaminants from the air
and machinery. There will also be a
number of loose threads that, while they
cause no harm, can be annoying the first
time you use the towel.
Swing the squeegee attachment up
against the bottom of the steam/garment
diffuser until the locking tab engages. To
remove the squeegee attachment, just
push your thumb against the locking tab
to release.
Steam/Garment Diffuser Bonnet
To use the steam/garment diffuser bonnet
try on a hidden area first to test for color
fastness see “Spot Cleaning” in the “Tips”
section.
To use: Attach the steam garment/diffuser
bonnet over the steam/garment diffuser.
(Fig. 10)
Fig. 10
