QUICKDRAW
®
Boiler Water Heater
4

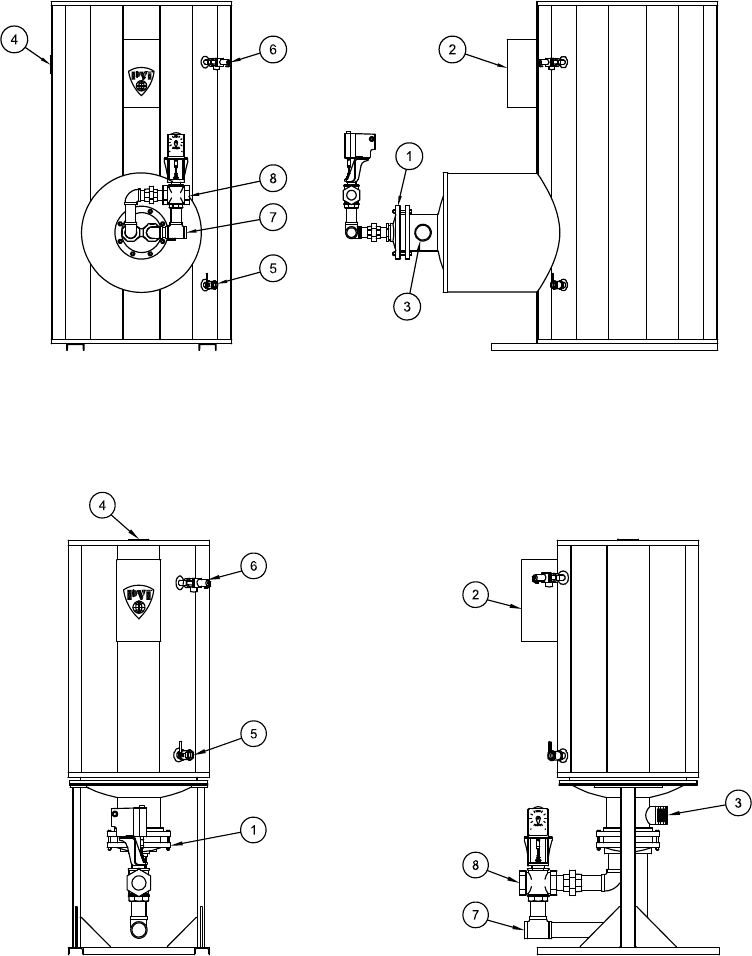

Typical QuickDraw
®
Storage Construction
Typical QuickDraw
®
Instantaneous Construction
1. U-tube Heat Exchan
g
e
r
5. Potable Water Inlet
2. Tank Drain 6. Steam Inlet
3. Control Enclosure 7. Potable Water Outlet
4. Relief Valve
(
AGA o
p
tional
)
8. Condensate Outlet
Note: Components, controls and connection locations may vary.
