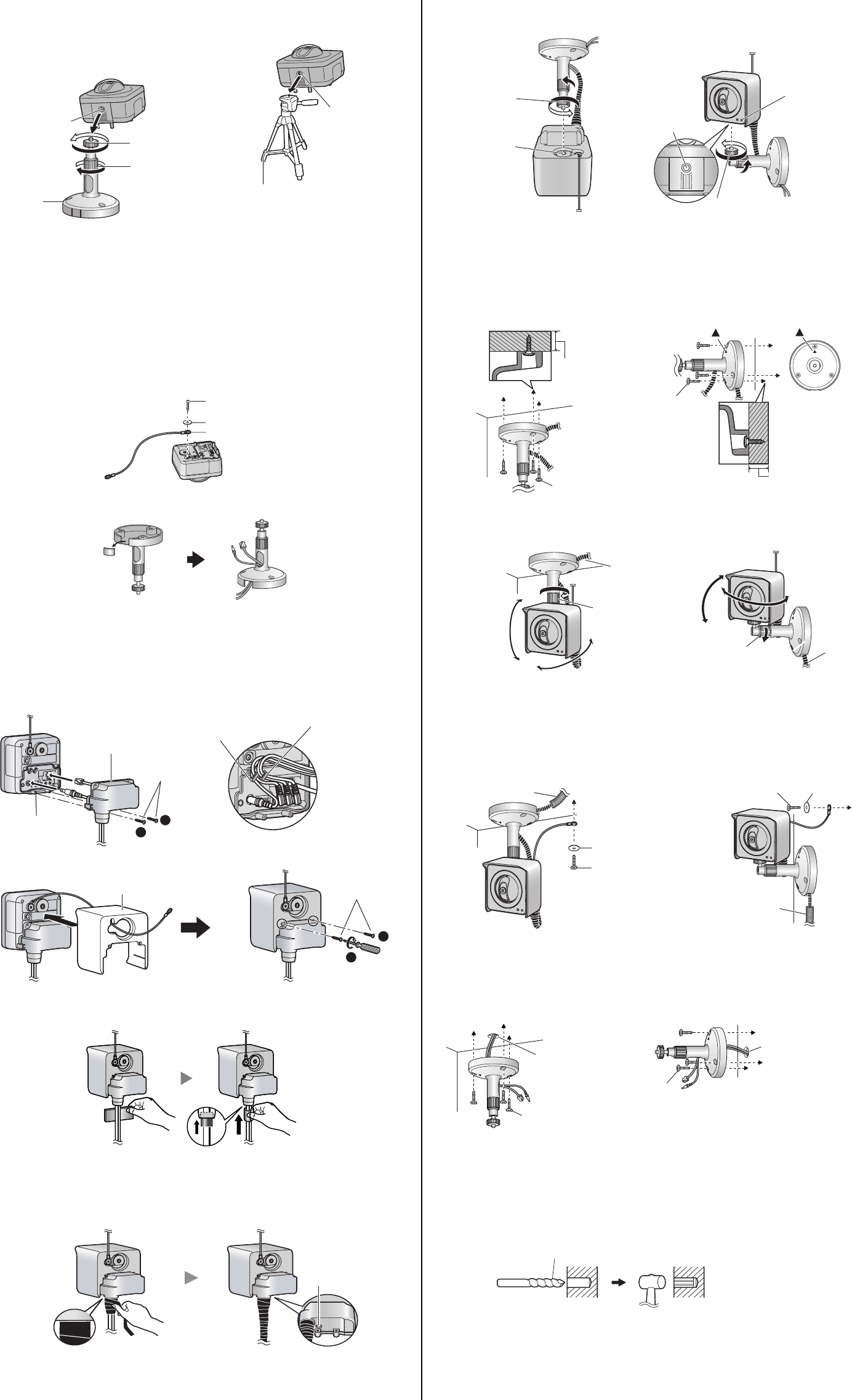

Ceiling/Wall Mount
Wiring without making a hole for a cable in the ceiling or wall
For BB-HCM531A:
Before following the procedures below, we recommend passing all cables (AC
adaptor, LAN, audio/video, etc.) through a duct (i.e., hose, tube, etc.) for
proper waterproofing.
1. Secure the safety wire to the camera using screw A (included) and
washer S (included).
Make sure you attach the safety wire when mounting the camera, to prevent the camera
from falling.
2. Remove the tab on the flexible stand. Then pass the cables through the
notch.
3. For BB-HCM511A:
Connect all necessary cables (AC adaptor, LAN, audio/video, etc.). Then
skip to step 7.
For BB-HCM531A:
Pass the cables through the connector cover, and then connect all
necessary cables (AC adaptor, LAN, audio/video, etc.).
Attach the connector cover by fastening the two screws.
4. Attach the sunshade by fastening the two screws.
5. Wrap the cables in the included foam strip and insert the foam strip into
the opening of the connector cover.
Leave about 10 mm (3/8 inches) of the foam exposed, as shown.
6. Wrap the first 20 cm (7 7/8 inches) of the cables (starting with the
connector cover) using the included self bonding tape. Make sure to wrap
the opening of the connector cover thoroughly (three or four times).
Stretch the tape to twice its length when you wrap the cables.
Overlap the tape when you wrap the cables.
7. Attach the camera by screwing the threaded mount into the stand
mounting hole.
8.
Mount the flexible stand firmly to the ceiling or wall with screw B (included).
Do not drive the screws into a soft material. Drive the screws into a secure area of the
wall, such as a column, otherwise the camera may fall and be damaged.
Use screws that are suited for the type of material the camera is mounted to.
Be careful not to nip the cables.
Make sure the flexible stand is firmly mounted on a beam of wood (25 mm [1 inch] and
greater) etc. When there is no beam, apply a board on the other side of the ceiling or wall
to make sure the camera does not drop.
9. Adjust the camera position and tighten the flexible stand grip firmly.
Confirm that the cords have been waterproofed and that the portion of the cord protruding
from the flexible stand is wrapped in self bonding tape, as shown in (A) below.
10. Secure the safety wire to the ceiling or wall using screw B (included) and
washer L (included).
Leave some slack in the safety wire, as shown.
Make sure the safety wire is firmly mounted on a beam of wood (25 mm [1 inch] and
greater) etc. When there is no beam, apply a board on the other side of the ceiling or wall
to make sure the camera does not drop.
Make sure to waterproof the opening of the duct so that water does not enter it.
For BB-HCM511A (INDOOR USE ONLY): Wiring through a hole made in
the ceiling or wall
Make a hole for cables in the ceiling or wall. Secure the safety wire to the
camera and pass the cables through the notch. Then follow steps 7, 8, 9 and 10.
When mounting on a mortar or concrete surface
Prepare anchors for 4 mm (3/16 inch) diameter screws for mounting.
1. Place the flexible stand on the ceiling or wall where you plan to mount the
flexible stand and mark the points where you are going to make holes.
2. Make holes with an electric drill. Insert anchors (customer-provided) into
the holes and push them inside the holes with a hammer.
Mortar ceilings or walls break easily when drilling. Be careful of pieces of mortar which
may become loose and fall.
3. Mount the flexible stand using the screws.
Flexible Stand Mount Tripod Mount
1. Screw the threaded mount into
the stand/tripod mounting hole.
2. Turn the grip firmly.
Tripod
(customer-provided)
Stand/tripod
mounting hole
Stand/tripod
mounting hole
Flexible
stand
Threaded
mount
Grip
Safety wire
Washer S
Screw A
