HPP-600
Pneumatic Hand Pump
INSTRUCTION
SHEET
M4673/0508
Shop online at: omega.com e-mail: info@omega.com
For latest product manuals: omegamanual.info
Volume Control

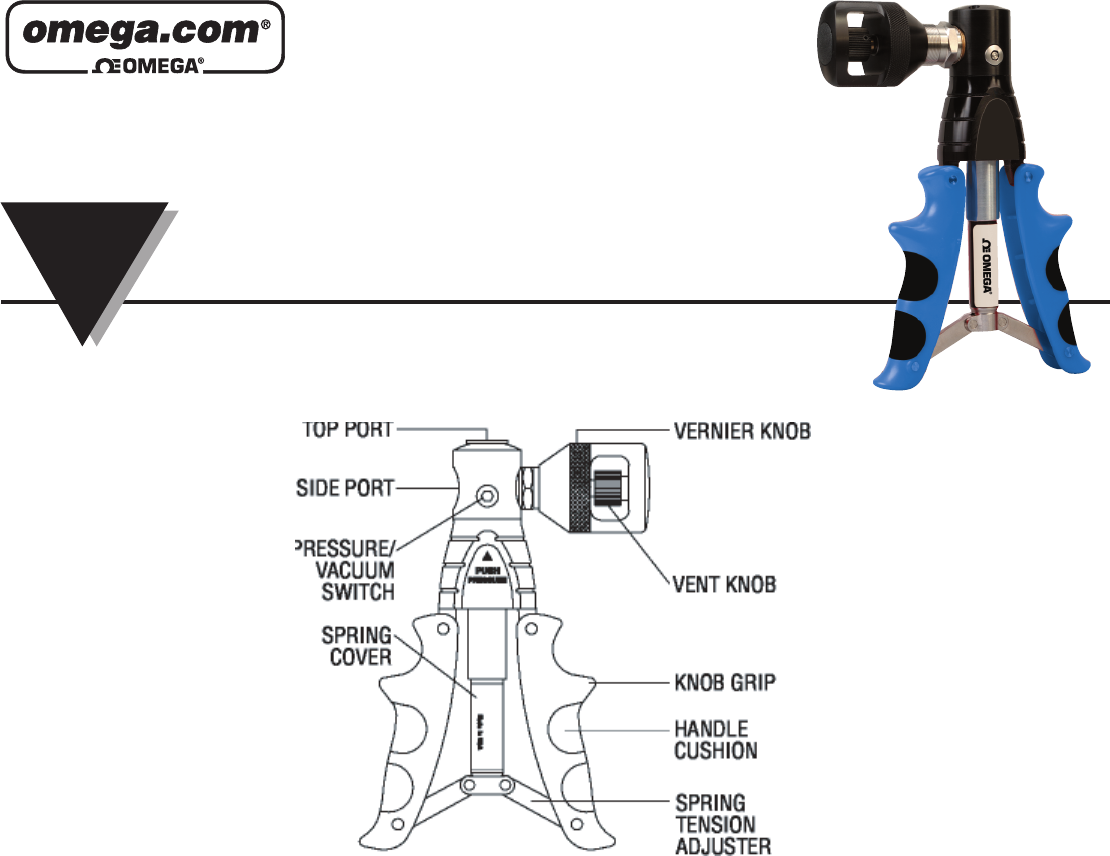

The HPP-600 pump is equipped with two knobs for fine adjustment of the system
pressure
. The vent knob can be used to slowly reduce the system pressure. The
vent knob should be closed prior to pressurizing the system by turning the knob
awa
y from the pump housing. The Vernier knob can be used to increase or
decrea
se the system at a more controlled rate. For fast relieve of the pressure,
move the pressure/vacuum pin to the opposite direction.
Pressure/Vacuum Selector
The pump can be used to generate pressure or vacuum depending on the position
of the pin located in the pressure/vacuum switch. Press the pin on the side of the
pump housing according to labels for the desired operation.
