LDVR Series Direct Vent Gas Fireplace
10007317
LG383
36LDVR logs
1/05
Rear
(B135)
Front Left
(B136)
Front Center
(B138)
Front Right
(B137)
LG383

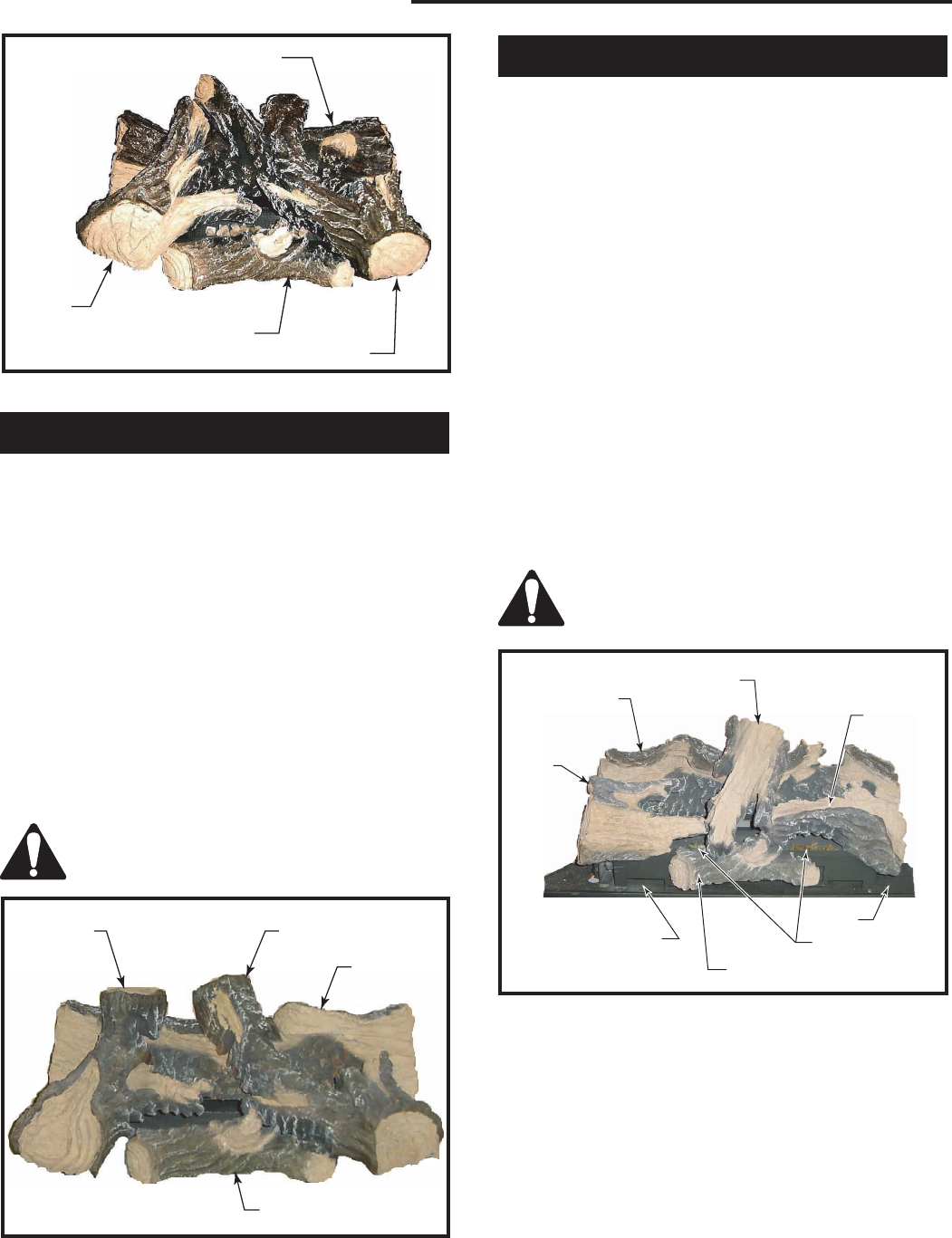

Fig. 42 Correct log placement for 36LDVR.
39LDVR
1. Place rear lob (BC14) on rear bracket (ensure log is
centered and seated properly to the log support).
2. Place front left log (BC15). Use logʼs bottom hole to
locate it onto the front support and just rest on top of
the rear log.
3. Place front right log (BC16). Use logʼs bottom hole
to locate it onto the front support and the top hole to
the knob on the rear log.
4. Place front center log (B138) on top of the two small
shelves at the front log support, and between the left
and right logs.
5. Place ember material on top of burner. Scatter the
ember material over the tiles on the front area of
the burner housing. (Fig. 50) Separate it when un-
packed and keep it in a fluffy and loose condition for
a more realistic ember effect.
Do not place any of the lava rock material
on the burner housing assembly.



Front Left
(BC15)
Front Right
(BC16)
Rear
(BC14)
Front Center
(B138)
LG414
Fig. 43 Correct log placement for 39LDVR.
43LDVR
1. Place rear log (BD15) on rear bracket (ensure log is
centered and seated properly to the log support).
2. Place front left log (BD16). Use logʼs bottom notch to
locate it onto the front support and just rest on top of
the burner housing tile.
3. Place front right log (BD17). Use logʼs bottom notch
to locate it onto the front support and just rest on top
of the burner housing.
4. Place ember material on top of burner.
5. Scatter the ember material over the tiles on the front
area of the burner housing. (Fig. 44) Do not pack
the ember material. Separate it when unpacked and
keep it in a fluffy and loose condition for a more
realistic ember effect.
6. Place front center log (B138) on top of the two small
shelves at the front log support, and between the left
and right logs.
7. Place top center log (BD18) on top of the rear log
using the hole locator under the log and on top of
front right log.
8. Scatter lava rock material round the firebox base.
Do not place any of the lava rock material
on the burner housing assembly.



Rear
(BD15)
Top Center
(BBD18)
Front Right
(BD17)
Front
Left
(BD16)
Lava Rock
Front Center
(B138)
Ember Material
Lava
Rock
LG434
Fig. 44 Correct log placement for 43LDVR.
