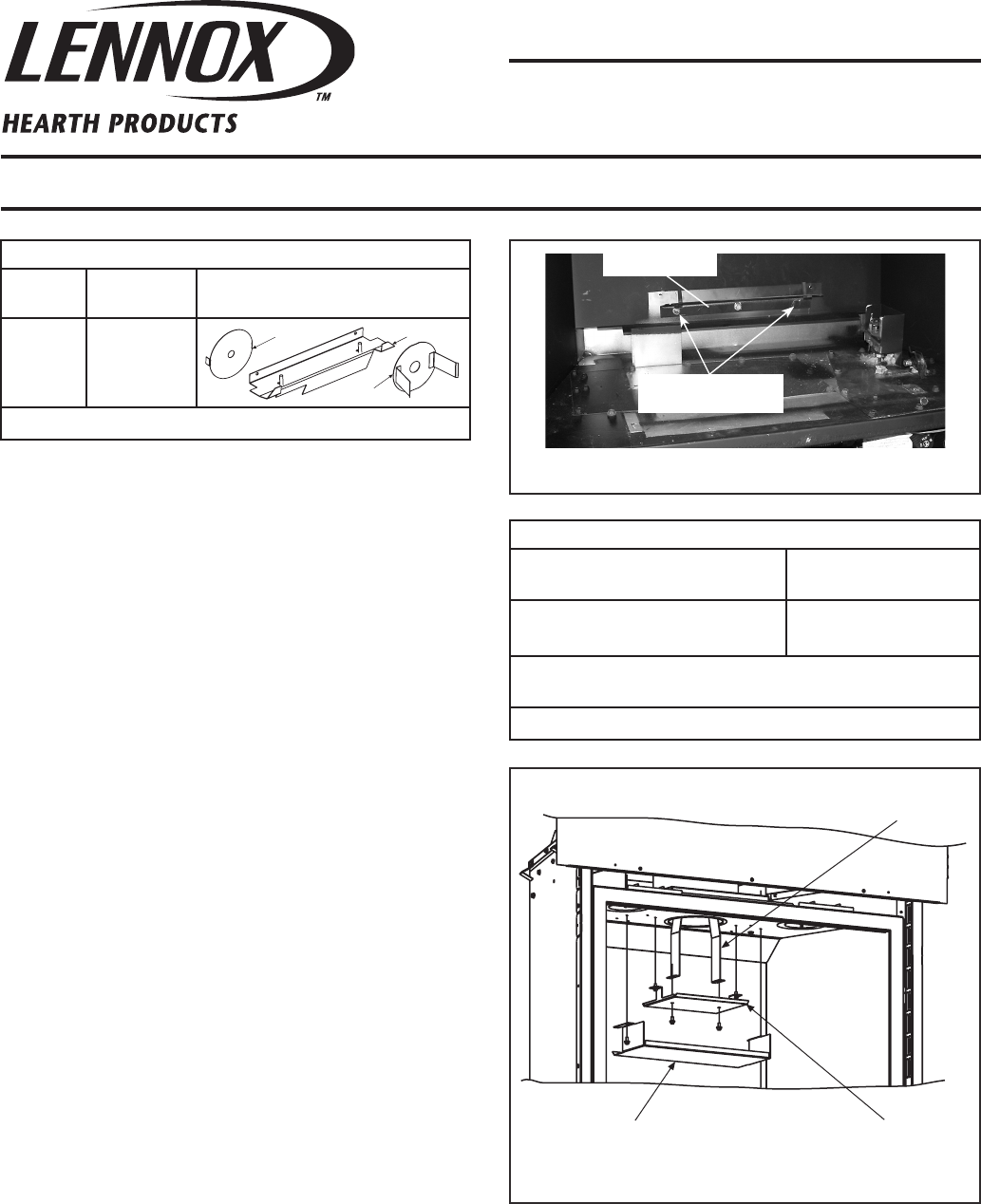

ELDV POWER VENT
ADAPTER KIT
INSTALLATION INSTRUCTIONS FOR THE ELDV-PVAK (H7407)
P/N 506019-26
REV. N/C 10/2008
HEARTH PRODUCTS
KITS AND ACCESSORIES
KIT CONTENTS
Log Support Bracket - 1 each, Restrictor 5/8” - 1 each, Restrictor
1” - 1 each
TOOLS NEEDED - 5/16” Nut Driver
GENERAL INFORMATION
This kit provides components that are designed to adapt any size
ELDV fireplace to be used with the Lennox LPVK-110 Power Vent Kit.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
INSTALLATION INSTRUCTIONS
Step 1. Remove the glass door per instructions in the ELDV Care
and Operation Instructions Manual.
Step 2. Using a 5/16” nut driver, remove and discard the rear log sup-
port bracket per instructions in Figure 1 and using the same screws,
install the rear log support bracket provided with this kit. Orient as
shown in Figure 1.
Step 3. Refer to Figure 2 and remove two screws securing the down-
draft baffle. Remove and retain the down-draft baffle.
Step 4. Remove two screws securing the restrictor base plate and
remove the restrictor assembly from the fireplace vent outlet.
Step 5. Remove two screws securing the restrictor body to the base
plate. Discard the restrictor body.
Figure 1 - Log Support Bracket
Rear Log Support
Remove the 2 screws
indicated by arrows
FIREPLACE ADAPTER KITS (For LPVK-110)
Fireplace
Model
Kit Catalog
Number
Kit Contents
ELDV
H7407
(ELDV-PVAK)
Table 1
5/8” Restrictor
1” Restrictor
Rear Log Bracket
VENT RUN PARAMETERS
Any Vent Run With A Vertical Height
Greater Than 30 Feet
Use 5/8” Restrictor
Provided With This Kit
Any Vent Run With A Vertical Height
Less Than 30 Feet
Use 1” Restrictor
Provided With This Kit
Note: See Power Vent Kit manual for maximum and minimum
vent run parameters.
Table 2
Figure 2 - Removing Baffle And Base Plate
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
Restrictor Base Plate
Restrictor Body
Down Draft Baffle
